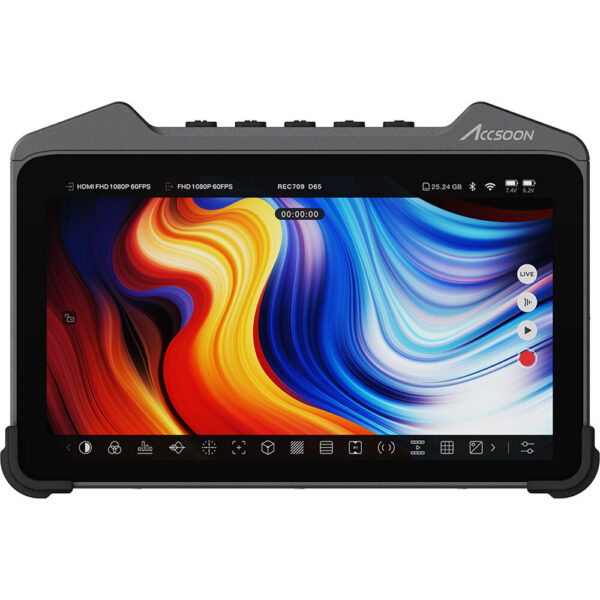

Accsoon Cine View M7 7" Recording Monitor
$543.00
In Stock
- Edge-Lit 7" Multi-Touch Display
- 1920 x 1080 Resolution
- 1000 cd/m² Brightness
- 3G-SDI & HDMI I/O up to DCI 4K60
Tracked ShippingRates shown at checkout
60-Day ReturnsOn eligible items
Expert SupportReal people, real advice
Accsoon Cine View M7 7" Recording Monitor
Designed for people who rely on their gear, the Accsoon Cine View M7 7" Recording Monitor delivers solid, consistent performance. It offers a 7.0" display at 1920 x 1080.
Highlights
- Edge-Lit 7" Multi-Touch Display
- 1920 x 1080 Resolution
- 1000 cd/m² Brightness
- 3G-SDI & HDMI I/O up to DCI 4K60
Every order from NIXTRONIC ships tracked worldwide and is covered by our 60-day return policy on eligible items.
In the Box
- Accsoon Cine View M7 7" Recording Monitor
| SKU | M7 |
|---|---|
| Brand | Accsoon |
| Panel Type | LCD |
|---|---|
| Display Size | 7.0" / 17.8 cm |
| Native Resolution | 1920 x 1080 |
| Aspect Ratio | 16:9 |
| Viewing Angle | Horizontal: 176°Vertical: 176° |
| Touchscreen | Yes |
| Maximum Brightness | 1000 nits / cd/m2 |
| Contrast Ratio | 1000:1 |
| HDR Support | Yes |
| Color Gamut | 100% Rec. 709 |
| LUT Support | Yes |
| Image Controls | Anamorphic De-Squeeze, False Color, Focus Peaking, Histogram, Image Flip, Image Freeze, Pixel Zoom, Screen Markers, Vectorscope, Waveform, Zebra |
| Video I/O | 1x BNC (3G-SDI) Input 1x BNC (3G-SDI) Output 1x HDMI 2.0 Input 1x HDMI 2.0 Output |
|---|---|
| Embedded Audio | HDMI/SDI |
| Audio I/O | 1x 1/8" / 3.5 mm Mic Input 1x 1/8" / 3.5 mm Headphone Output |
| Built-In Speaker | No |
| Power I/O | 1x Barrel 2.1 mm (16.8 VDC) Input 1x USB-C (9 VDC / 3 A) Input 1x USB-C (5 VDC / 2 A) Output |
| Media/Memory Card Slot | Single Slot: SD (Unspecified Type) [Record/LUT/Firmware] |
| Wireless | No |
|---|---|
| Mobile App Compatible | No |
| Video Format | HDMIDCI 4K: 60/59.94/50/30/29.97/25/24/23.98 UHD 4K: 60/59.94/50/30/29.97/25/24/23.98 1080p: 60/59.94/50/30/29.97/25/24/23.98 1080i: 60/59.94/50 720p: 60/59.94/50 SDI1080p: 60/59.94/50/30/29.97/25/24/23.98 1080i: 60/59.94/50 |
|---|---|
| Video Signal Conversion | SDI to HDMI HDMI to SDI |
| Timecode Support | No |
| Pulldown Conversion | No |
|---|---|
| Camera Trigger | No |
| Pre-Roll Record | No |
| Encoding Formats | Up to 4096 x 2160H.264 Up to 4096 x 2160H.265 |
| Maximum Audio Tracks | 2 |
| Input Power | 6 to 16.8 VDC9 to 15 VDC at 3 A |
|---|---|
| Battery | 2x L-Series Mount on Fixed Plate |
| Power Consumption | 12 W (Typical)28 W (Maximum) |
| Tripod/Accessory Mounting | 2x 1/4"-20 Female |
|---|
| Operating Conditions | 14 to 104°F / -10 to 40°C |
|---|---|
| Material of Construction | Aluminum |
| Dimensions | 7.2 x 4.8 x 1.2" / 182.2 x 120.7 x 31.5 mm |
| Weight | 1.1 lb / 494.3 g |
| Package Weight | 1.595 lb |
|---|---|
| Box Dimensions (Lx WxH) | 8.2 x 5.9 x 2.3" |
