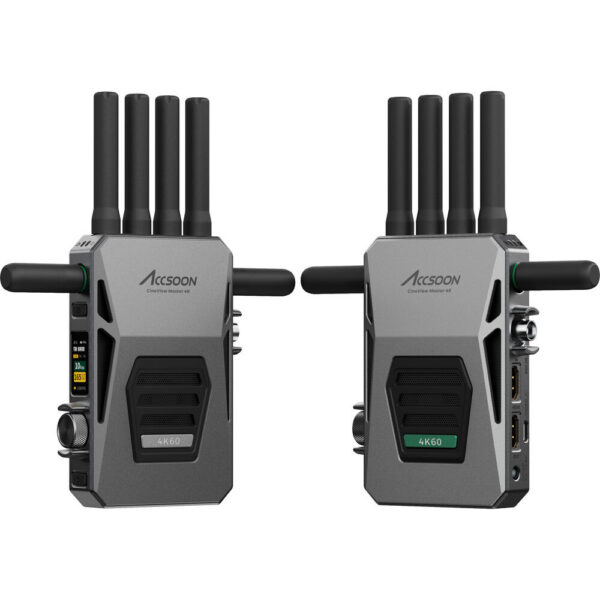

Accsoon Cine View Master 4K SDI/HDMI Wireless Video Transmission System
$577.00
In Stock
- Wireless HDMI/SDI Video TX/RX Set
- Tri-Band 2.4/5/6 GHz Transmission
- UHD 4K60 Transmission up to 1.6 Miles
- USB-C Output for iOS Devices
Tracked ShippingRates shown at checkout
60-Day ReturnsOn eligible items
Expert SupportReal people, real advice
Accsoon Cine View Master 4K SDI/HDMI Wireless Video Transmission System
Designed for people who rely on their gear, the Accsoon Cine View Master 4K SDI/HDMI Wireless Video Transmission System delivers solid, consistent performance.
Highlights
- Wireless HDMI/SDI Video TX/RX Set
- Tri-Band 2.4/5/6 GHz Transmission
- UHD 4K60 Transmission up to 1.6 Miles
- USB-C Output for iOS Devices
Ordered from NIXTRONIC, it ships with full tracking worldwide and is backed by our 60-day returns on eligible items.
In the Box
- Accsoon Cine View Master 4K SDI/HDMI Wireless Video Transmission System
- Accsoon Cine View Master 4K SDI/HDMI Wireless Video Receiver
- Accsoon Cine View Master 4K SDI/HDMI Wireless Video Transmitter
| SKU | CVM4K |
|---|---|
| Brand | Accsoon |
| Video I/O | Transmitter: 1x HDMI 2.0 Input Transmitter: 1x HDMI 2.0 Output Transmitter: 1x BNC (3G-SDI) Input Transmitter: 1x USB-C (Unspecified Signal) Output Receiver: 1x HDMI 2.0 Output Receiver: 1x BNC (3G-SDI) Output |
|---|---|
| Embedded Audio | HDMI/SDI |
| Audio I/O | No |
| Power I/O | Transmitter/Receiver: 1x Barrel Input |
| Wireless | Wi-Fi 6 (802.11ax) / 2.4 GHz Radio/RF / 5.8 GHz Radio/RF |
|---|---|
| Wireless Range | 1.6 Miles / 2.5 km (Line-of-Sight) |
| # of Channels | 20 |
| Frequency Range | 2412 to 2472 MHz5180 to 5580 MHz5660 to 5825 MHz |
| Latency | 35 ms |
| RF Power | 17 d Bm |
| Wi-Fi | Wi-Fi 6 (802.11ax): Tri-Band (2.4 & 5 + 5 GHz) |
| Bluetooth | No |
| Mobile App Compatible | Yes: Android & iOSApp Name: Accsoon SEE |
| Cellular Support | No |
| Video Format | HDMIUHD 4K: 60/50/30/25/24 1080p: 60/50/30/25/24 1080i: 60/59.94/50 SDI1080p: 60/50/30/25/24 1080i: 60/59.94/50 |
|---|---|
| Audio Format | Not Specified by Manufacturer |
| Timecode Support | No |
| Input Power | 7.4 to 16.8 VDC |
|---|---|
| Battery | Transmitter/Receiver: 1x L-Series Mount on Fixed Plate |
| Tripod/Accessory Mounting | Transmitter/Receiver, Bottom1x 1/4"-20 Female |
|---|
| Status Display | On Transmitter & Receiver |
|---|---|
| Environmental Resistance | No |
| Operating Conditions | 14 to 104°F / -10 to 40°C |
| Dimensions | Transmitter/Receiver: 5.1 x 3.7 x 1.3" / 130 x 95 x 32 mm (Excluding Antenna) |
| Weight | Transmitter: 11.36 oz / 322.00 g, Excluding Antenna Receiver: 11.29 oz / 320.00 g, Excluding Antenna |
| Package Weight | 2.82 lb |
|---|---|
| Box Dimensions (Lx WxH) | 10.1 x 6.8 x 2.3" |
