ARRI Camera Control Monitor CCM-1 Set
$4,052.00
In Stock

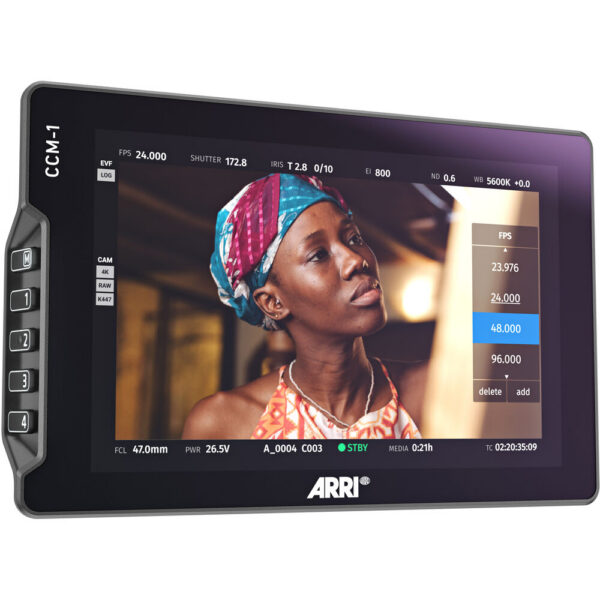

- 7" Camera Control Monitor
- For ARRI ALEXA Mini LF & ALEXA 35

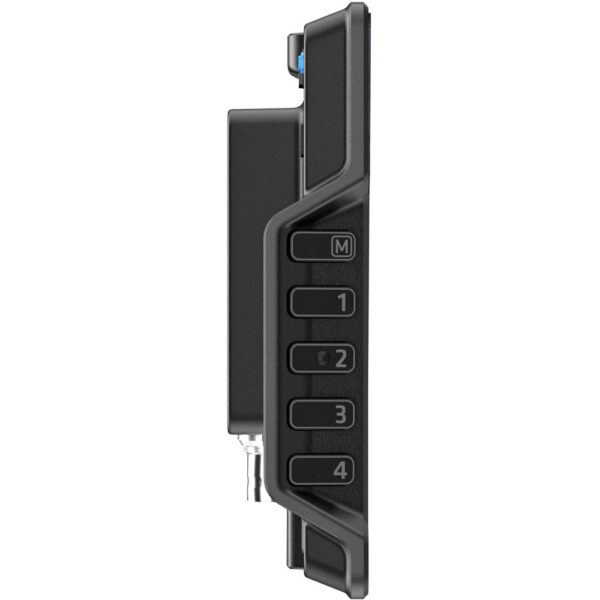

- Touchscreen Display & Physical Buttons
- Includes Folding Sunshade & Tilt Mount
Tracked ShippingRates shown at checkout
60-Day ReturnsOn eligible items
Expert SupportReal people, real advice
ARRI Camera Control Monitor CCM-1 Set
Designed for people who rely on their gear, the ARRI Camera Control Monitor CCM-1 Set delivers solid, consistent performance. It offers a 7.0" display at 1920 x 1200.
Highlights
- 7" Camera Control Monitor
- For ARRI ALEXA Mini LF & ALEXA 35
- Touchscreen Display & Physical Buttons
- Includes Folding Sunshade & Tilt Mount
Ordered from NIXTRONIC, it ships with full tracking worldwide and is backed by our 60-day returns on eligible items.
In the Box
- ARRI Camera Control Monitor CCM-1 Set
- ARRI CCM-1 Foldable Sun Hood
- ARRI Monitor Arm for Camera MAC-1
- ARRI Cable VF (1.5')
- Screen Protector
- ARRI Cable RS - RS/Power In (1.6')
| SKU | KK.0048851 |
|---|---|
| Brand | ARRI |
| Panel Type | TFT LCD |
|---|---|
| Display Size | 7.0" / 17.8 cm |
| Native Resolution | 1920 x 1200 |
| Aspect Ratio | 16:10 |
| Viewing Angle | Horizontal: 160°Vertical: 160° |
| Touchscreen | Yes |
| Maximum Brightness | 1300 nits / cd/m2 |
| Color Support | 1.07 Billion Colors (10-Bit) |
| HDR Support | No |
| Color Gamut | 100% DCI-P3100% Rec. 709 |
| Image Controls | False Color, Focus Peaking, Pixel Zoom |

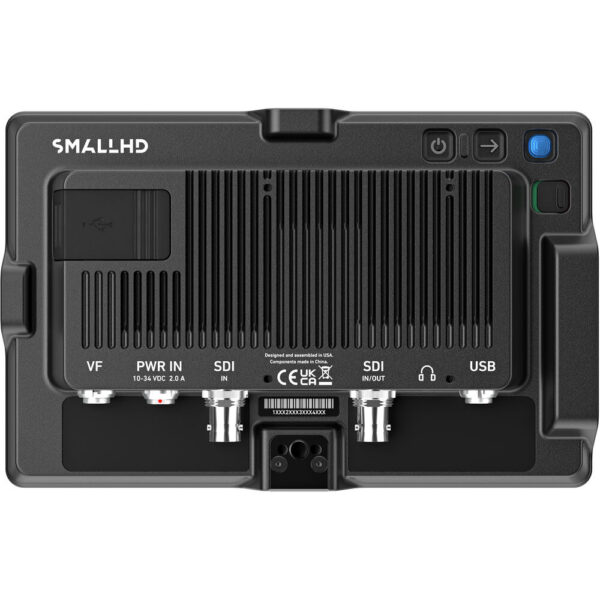

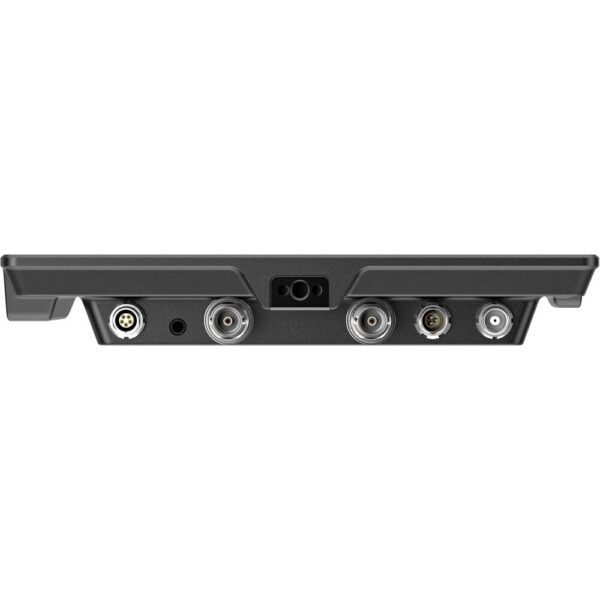

| Video I/O | 1x Coaxial Output 1x BNC (3G-SDI) Input 1x BNC (3G-SDI) Input/Output |
|---|---|
| Embedded Audio | SDI |
| Audio I/O | 1x 1/8" / 3.5 mm Output |
| Built-In Speaker | No |
| Power I/O | 1x LEMO 3-Pin (34 VDC / 2 A) Input |
| Other I/O | 1x LEMO 5-Pin1x USB-C |
| Media/Memory Card Slot | No |
| Wireless | No |
|---|---|
| Mobile App Compatible | No |
| Video Format | SDI (10-Bit 4:2:2 YCC)1080p: 60/59.94/50/30/29.97/25/24/23.98 1080 PsF: 30/29.97/25/24/23.98 1080i: 120/119.88/100/60/59.94/50 720p: 60/59.94/50/30/29.97/25/24/23.98 480i: 59.94 576i: 50 SDI (10/12-Bit 4:4:4 RGB)DCI 2K: 30/29.97/25/24/23.98 1080p: 30/29.97/25/24/23.98 |
|---|
| Input Power | 10 to 34 VDC at 2 A |
|---|---|
| Battery | No |
| Tripod/Accessory Mounting | Top/Bottom/Left/Right1x ARRI Anti-Twist 1/4"-20 |
|---|
| Environmental Resistance | No |
|---|---|
| Operating Conditions | 32 to 113°F / 0 to 45°C up to 95% Humidity |
| Storage Conditions | 0 to 120°F / -18 to 49°C |
| Material of Construction | Aluminum, Steel |
| Dimensions | 7.4 x 4.7 x 1.1" / 187 x 120 x 29 mm |
| Weight | 20.95 oz / 594.00 g |
| Package Weight | 4.175 lb |
|---|---|
| Box Dimensions (Lx WxH) | 11.1 x 11 x 4.4" |
