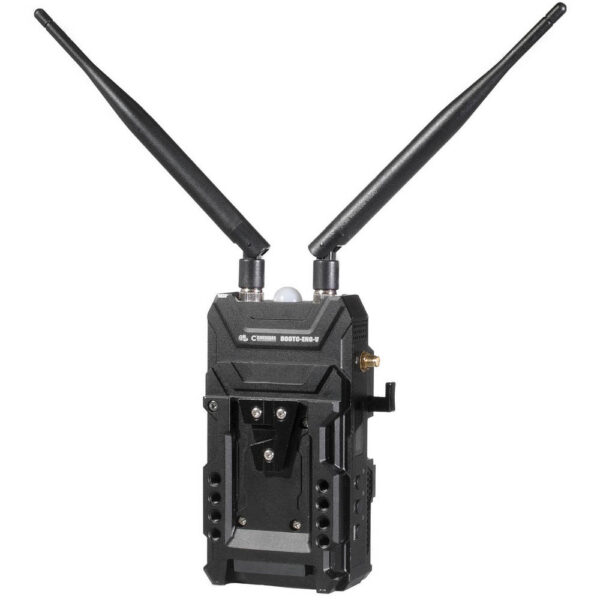

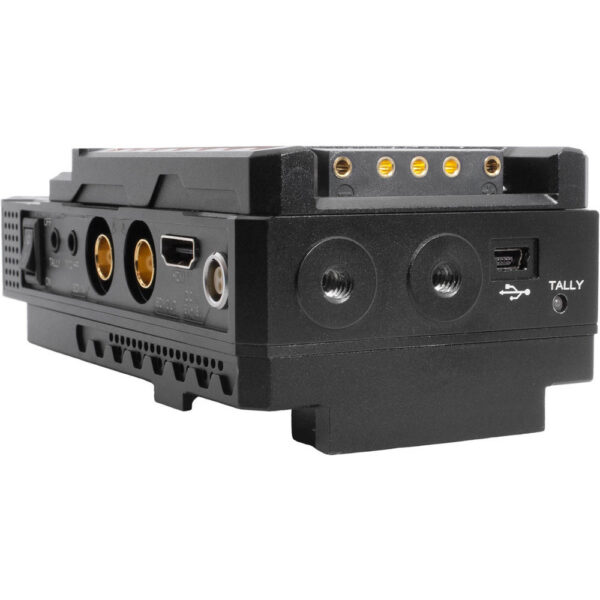

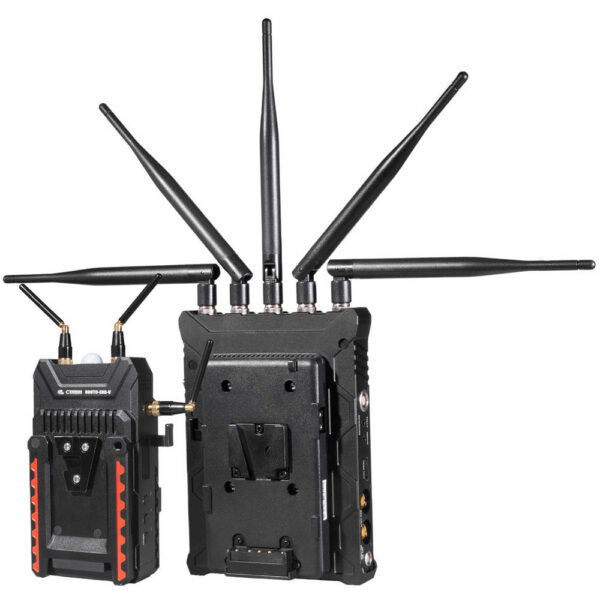

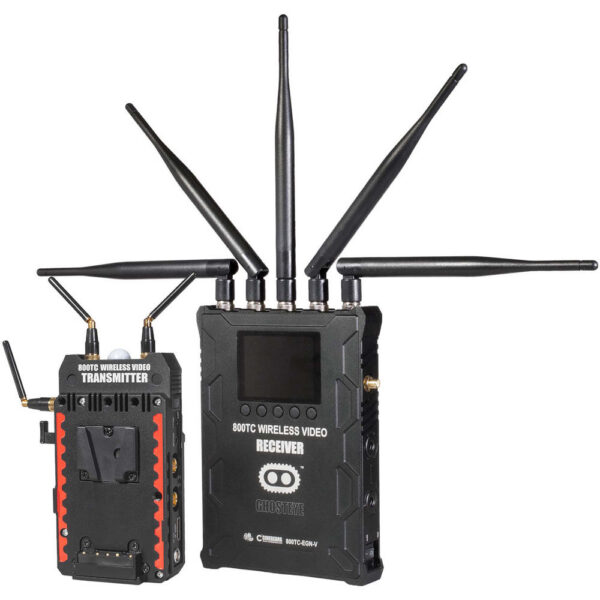

CINEGEARS Ghost-Eye Wireless 800TC Video Transmission Kit (V-Mount)
$2,009.00
In Stock
- Send Uncompressed 1080p60, 10-Bit, 4:2:2
- 1 x Transmitter, 1 x Receiver Set
- 2625' Range
- Low Latency of <1 ms
Tracked ShippingRates shown at checkout
60-Day ReturnsOn eligible items
Expert SupportReal people, real advice
CINEGEARS Ghost-Eye Wireless 800TC Video Transmission Kit (V-Mount)
The CINEGEARS Ghost-Eye Wireless 800TC Video Transmission Kit (V-Mount) is a dependable addition to a serious kit.
Highlights
- Send Uncompressed 1080p60, 10-Bit, 4:2:2
- 1 x Transmitter, 1 x Receiver Set
- 2625' Range
- Low Latency of <1 ms
Every order from NIXTRONIC ships tracked worldwide and is covered by our 60-day return policy on eligible items.
In the Box
- CINEGEARS Ghost-Eye Wireless 800TC Video Transmission Kit (V-Mount)

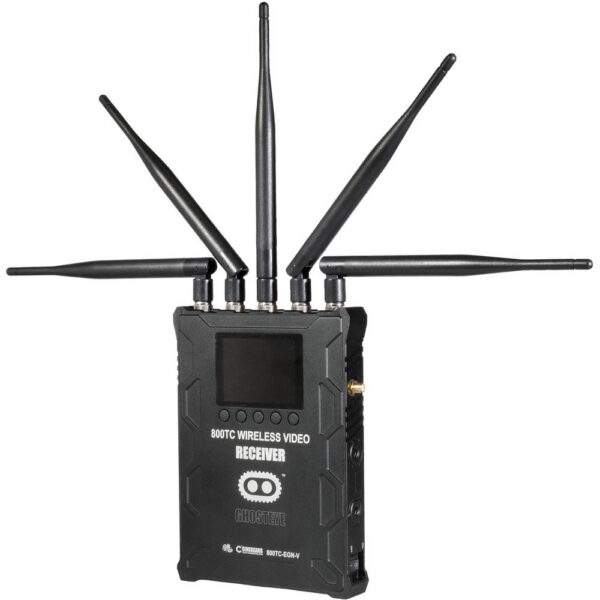

- CINEGEARS 800TC ENG Ghost-Eye Wireless HD Video Receiver (V-Mount, Encrypted)

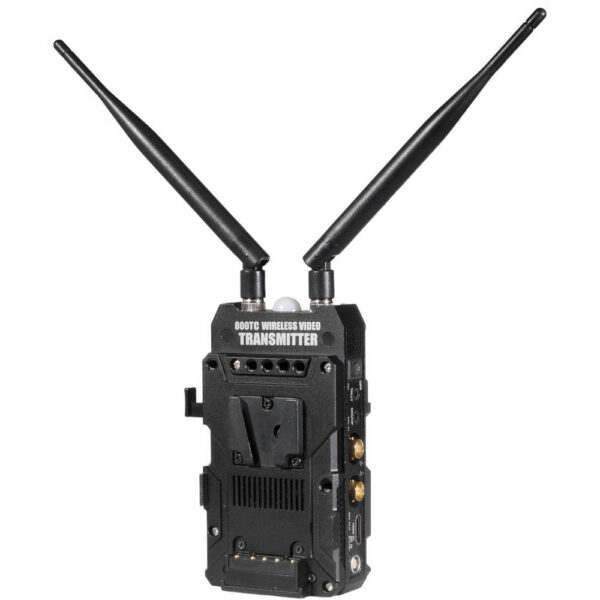

- Ghost-Eye 800TC Encrypted Transmitter
- 5-Pin to XLR Connector
- 2 x 5G Extended Range Antenna
- 2G Standard Antenna
- Waterproof Foam Case
| SKU | 6-808 |
|---|---|
| Brand | CINEGEARS |
| Antenna I/O | Transmitter: 3x RP-SMA (External) Receiver: 5x RP-SMA (External) |
|---|---|
| Video I/O | Transmitter: 1x HDMI (Unspecified Signal) Input Transmitter: 1x BNC (3G-SDI) Input Transmitter: 1x BNC (3G-SDI) Loop Output Receiver: 1x HDMI (Unspecified Signal) Output Receiver: 2x BNC (3G-SDI) Output |
| Embedded Audio | HDMI: 2-ChannelSDI: 2-Channel Wireless: 2-Channel |
| Audio I/O | Transmitter: 1x 1/8" / 3.5 mm Mic Input Receiver: 1x 1/8" / 3.5 mm Mic Output |
| Power I/O | Transmitter/Receiver: 1x LEMO 2-Pin (18 VDC) Input |
| Other I/O | Transmitter/Receiver: 1x 1/8" / 3.5 mm (Tally) Output |
| Encryption | Yes: 128-Bit AES |
| Wireless | 2.4 GHz Radio/RF / 5.1 GHz Radio/RF / 5.8 GHz Radio/RF |
|---|---|
| Wireless Range | 2624.7' / 800 m (Line-of-Sight) |
| Frequency Range | 5.1 to 5.9 GHz |
| Latency | < 1 ms |
| RF Power | 18 d Bm |
| RF Sensitivity | -70 d Bm |
| Mobile App Compatible | No |
| Cellular Support | No |
| Video Format | HDMI/SDI1080p |
|---|---|
| Audio Format | 2-Channel PCM, DTS-HD, Dolby TrueHD Audio |
| Wireless Video Compression | Uncompressed |
| Timecode Support | Yes |
| Input Power | 9 to 18 VDC |
|---|---|
| Battery | Transmitter/Receiver: 1x V-Mount on Fixed Plate |
| Power Consumption | Transmitter/Receiver: 8.5 W (Maximum) |
| Tripod/Accessory Mounting | Transmitter/Receiver, Bottom2x 1/4"-20 Female |
|---|
| Status Display | On Transmitter & Receiver |
|---|---|
| Environmental Resistance | No |
| Operating Conditions | 14 to 122°F / -10 to 50°C |
| Storage Conditions | -40 to 176°F / -40 to 80°C |
| Dimensions | Transmitter: 5.6 x 3 x 1" / 142.5 x 76 x 24.3 mm Receiver: 6.7 x 4.8 x 1" / 169.5 x 122 x 25.2 mm |
| Weight | Transmitter: 14.11 oz / 400.00 g Receiver: 28.22 oz / 800.00 g |
| Package Weight | 9.65 lb |
|---|---|
| Box Dimensions (Lx WxH) | 13.1 x 12 x 4.7" |
