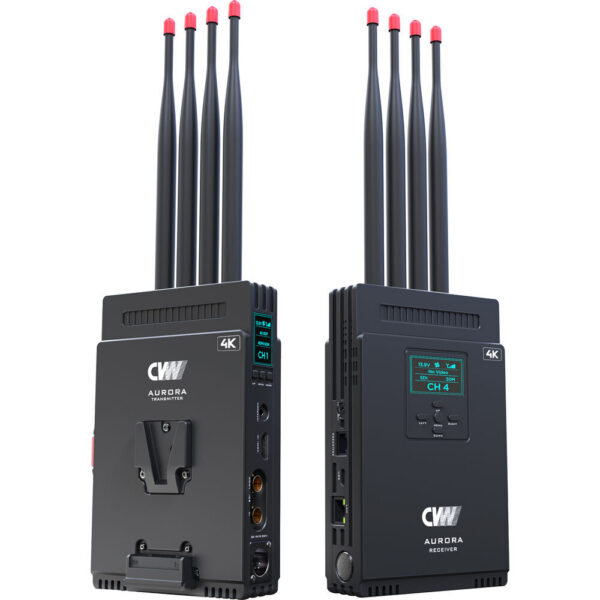

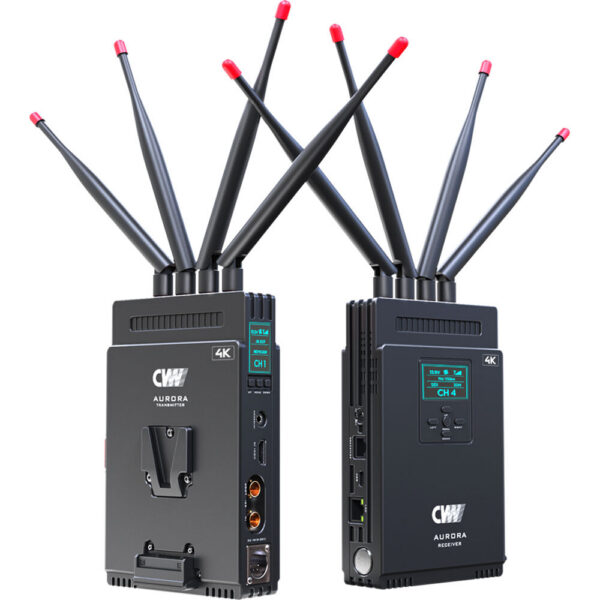

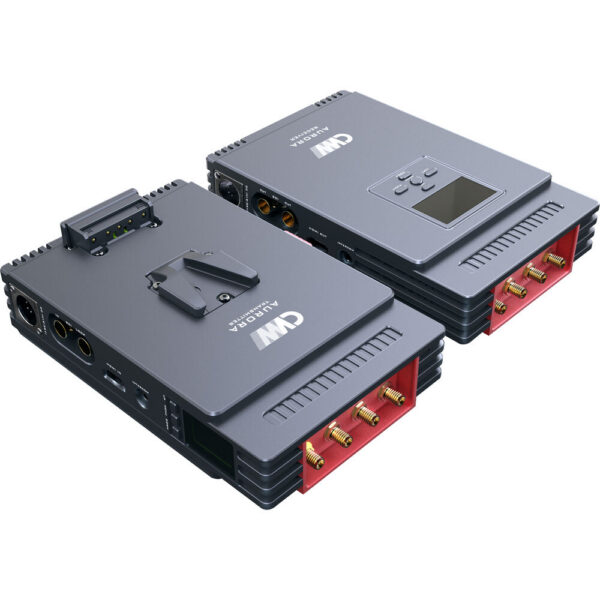

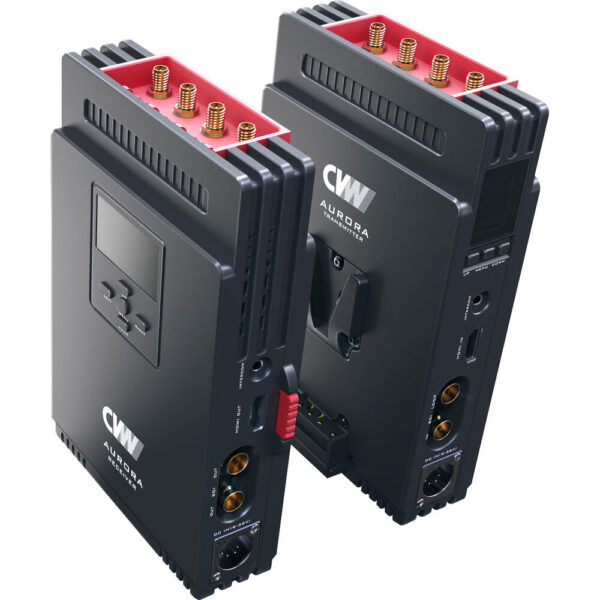

Crystal Video Technology Aurora UHD 4K Wireless Video Transmission System
$7,772.00
In Stock
- Transmitter and Receiver Set
- 1640' Line-of-Sight Transmission
- Supports up to UHD 4K Video
- 1 x HDMI, 1 x 12G-SDI Input
Tracked ShippingRates shown at checkout
60-Day ReturnsOn eligible items
Expert SupportReal people, real advice
Crystal Video Technology Aurora UHD 4K Wireless Video Transmission System
Designed for people who rely on their gear, the Crystal Video Technology Aurora UHD 4K Wireless Video Transmission System delivers solid, consistent performance.
Highlights
- Transmitter and Receiver Set
- 1640' Line-of-Sight Transmission
- Supports up to UHD 4K Video
- 1 x HDMI, 1 x 12G-SDI Input
Ordered from NIXTRONIC, it ships with full tracking worldwide and is backed by our 60-day returns on eligible items.
In the Box
- Crystal Video Technology Aurora UHD 4K Wireless Video Transmission System
- Transmitter
- Receiver
- 10 x Antenna
- 2 x 12G-SDI Cable
- 2 x D-Tap to 4-Pin XLR Adapter
- Power Adapter
- USB OTG Adapter
- Hard Case
| SKU | AURORA 4K KIT |
|---|---|
| Brand | Crystal Video Technology |
| Video I/O | Transmitter/Receiver: 1x HDMI 2.0 Input Transmitter: 1x BNC (12G-SDI) Input Transmitter: 1x BNC (12G-SDI) Loop Output Receiver: 2x BNC (12G-SDI) Output |
|---|---|
| Audio I/O | Transmitter/Receiver: 1x 1/8" / 3.5 mm Headphone/Mic Input/Output |
| Power I/O | Transmitter/Receiver: 1x XLR 4-Pin (36 VDC) Input |
| Other I/O | Transmitter/Receiver: 1x RJ45 (LAN) Input Transmitter/Receiver: 1x 1/8" / 3.5 mm (Tally) Transmitter/Receiver: 1x USB-C |
| Encryption | Yes: WPA2/WPS |
| Wireless | 5.1 GHz Radio/RF / 5.8 GHz Radio/RF |
|---|---|
| Wireless Range | 1600' / 487.7 m (Line-of-Sight) |
| Frequency Range | 5190 to 5795 MHz |
| Latency | 70 ms |
| RF Power | 23 d Bm |
| Mobile App Compatible | No |
| Cellular Support | No |
| Video Format | SDI (10-Bit 4:2:2)UHD 4K: 60/59.94/50/30/29.97/25/24/23.98 1080p: 60/59.94/50/30/29.97/25/24/23.98 1080i: 60/59.94/50 1080 PsF: 30/29.97/25/24/23.98 720p: 60/59.94/50 HDMI (10-Bit 4:2:2)UHD 4K: 60/59.94/50/30/29.97/25/24/23.98 1080p: 60/59.94/50/30/29.97/25/24/23.98 1080i: 60/59.94/50 720p: 60/59.94/50 |
|---|---|
| Audio Format | 16-Bit 48 k Hz AAC Audio |
| Wireless Video Compression | Compressed |
| Timecode Support | Yes |
| Input Power | 9 to 36 VDC |
|---|---|
| Battery | Transmitter/Receiver: 1x V-Mount on Fixed Plate |
| Power Consumption | Transmitter: 16 WReceiver: 13 W |
| Status Display | No |
|---|---|
| Environmental Resistance | No |
| Dimensions | Transmitter/Receiver: 7.3 x 4.6 x 1.6" / 185 x 117 x 40 mm |
