Crystal Video Technology Beam Link-Duo 2-Channel Full HD Video Wireless Transmission System
$2,345.00
In Stock
- Two Simultaneous 3G-SDI/HDMI Signals
- Supports up to 1080p60
- 2295' Line-of-Sight Range
- Tally Input/Output
Tracked ShippingRates shown at checkout
60-Day ReturnsOn eligible items
Expert SupportReal people, real advice

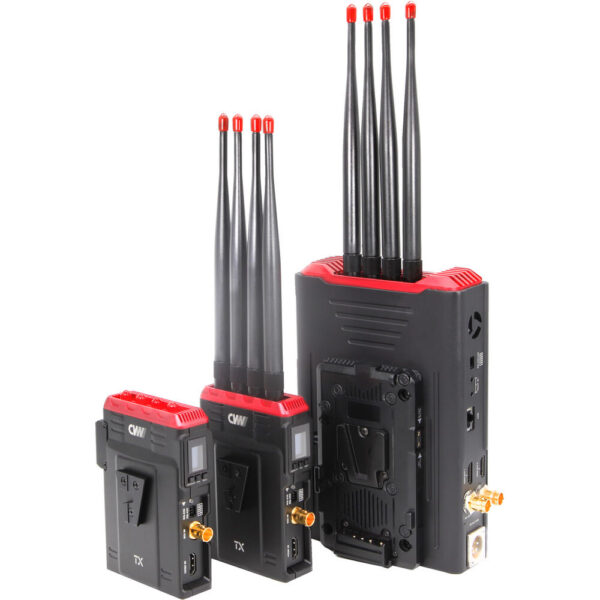

Crystal Video Technology Beam Link-Duo 2-Channel Full HD Video Wireless Transmission System
The Crystal Video Technology Beam Link-Duo 2-Channel Full HD Video Wireless Transmission System is built to support demanding work, in the studio and on location.
Highlights
- Two Simultaneous 3G-SDI/HDMI Signals
- Supports up to 1080p60
- 2295' Line-of-Sight Range
- Tally Input/Output
Ordered from NIXTRONIC, it ships with full tracking worldwide and is backed by our 60-day returns on eligible items.
In the Box
- Crystal Video Technology Beam Link-Duo 2-Channel Full HD Video Wireless Transmission System
- 2 x Transmitters
- Receiver
- 8 x Transmitter Antenna
- 4 x Receiver Antenna
- 2 x 1/4"-20 Screw and Nut Connector
- 2 x Power Cable for Transmitter
- Power Adapter for Receiver
- Metal Stand for Receiver
| SKU | BEAMLINK-DUO |
|---|---|
| Brand | Crystal Video Technology |
| Video I/O | Transmitter: 1x BNC (3G-SDI) Input Transmitter: 1x HDMI (Unspecified Signal) Input |
|---|---|
| Embedded Audio | HDMI |
| Audio I/O | No |
| Power I/O | Transmitter: 1x XLR 4-Pin Input Receiver: 1x Barrel Input |
| Media/Memory Card Slot | Not Specified by Manufacturer |
| Wireless | 5.1 GHz Radio/RF / 5.8 GHz Radio/RF |
|---|---|
| Wireless Range | 2295' / 699.5 m (Line-of-Sight) |
| Frequency Range | 5.1 to 5.8 GHz |
| Latency | 70 ms |
| RF Sensitivity | -70 d Bm |
| Mobile App Compatible | No |
| Cellular Support | No |
| Video Format | HDMI/SDI1080p: 60 |
|---|---|
| Audio Format | PCM Audio |
| Timecode Support | No |
| Input Power | 7 to 17 VDC |
|---|---|
| Battery | No |
| Power Consumption | Transmitter: 10 WReceiver: 13 W |
| Tripod/Accessory Mounting | Not Specified by Manufacturer |
|---|
| Dimensions | Transmitter: 7.8 x 5.5 x 2" / 19.8 x 14 x 5.1 cm |
|---|
| Package Weight | 11.905 lb |
|---|---|
| Box Dimensions (Lx WxH) | 15.2 x 12.5 x 5.6" |
