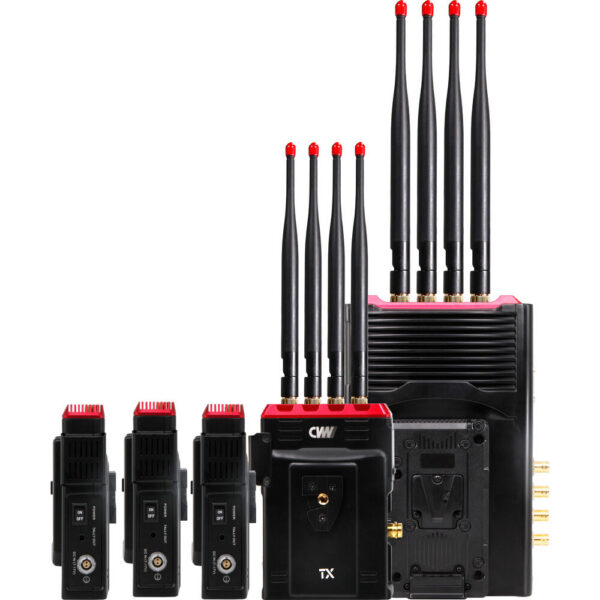

Crystal Video Technology Beam Link-Quad 4-Channel Full HD Wireless Video Transmission System
$4,556.00
In Stock
- Four Simultaneous 3G-SDI/HDMI Signals
- Supports up to 1080p60
- 1640' Line-of-Sight Range
- Tally Input/Output
Tracked ShippingRates shown at checkout
60-Day ReturnsOn eligible items
Expert SupportReal people, real advice
Crystal Video Technology Beam Link-Quad 4-Channel Full HD Wireless Video Transmission System
The Crystal Video Technology Beam Link-Quad 4-Channel Full HD Wireless Video Transmission System is a dependable addition to a serious kit.
Highlights
- Four Simultaneous 3G-SDI/HDMI Signals
- Supports up to 1080p60
- 1640' Line-of-Sight Range
- Tally Input/Output
Every order from NIXTRONIC ships tracked worldwide and is covered by our 60-day return policy on eligible items.
In the Box
- Crystal Video Technology Beam Link-Quad 4-Channel Full HD Wireless Video Transmission System
- 4 x Transmitter
- Receiver
- 16 x Transmitter Antenna
- 4 x Receiver Antenna
- 4 x 1/4"-20 Screw and Nut Connector
- 4 x Power Cable for Transmitter
- Power Adapter for Receiver
- Metal Stand for Receiver
| SKU | BEAMLINK-QUAD |
|---|---|
| Brand | Crystal Video Technology |
| Antenna I/O | Transmitter: 4x RP-SMA Female Receiver: 4x RP-SMA Female |
|---|---|
| Video I/O | Transmitter: 1x BNC (3G-SDI) Input Transmitter: 1x HDMI 1.4 Input Receiver: 4x BNC (3G-SDI) Output Receiver: 4x HDMI 1.4 Output |
| Embedded Audio | SDI: 2-ChannelHDMI: 2-Channel |
| Audio I/O | No |
| Power I/O | Transmitter: 1x Coax (17 VDC) Input Receiver: 1x XLR 4-Pin (17 VDC) Input |
| Other I/O | Receiver: 1x DE-9/DB-9 (RS-232/RS-422) Input/Output Transmitter: 2x Proprietary (Tally) Input/Output Receiver: 1x RJ45 (LAN) Input/Output |
| Encryption | Yes: WPA2/WPS |
| Wireless | Wi-Fi 4 (802.11n) |
|---|---|
| Wireless Range | 656.2' / 200 m (Line-of-Sight) |
| Channel Bandwidth | 40 MHz |
| Frequency Range | US: 5.1 to 5.8 GHz |
| Latency | < 70 ms |
| RF Power | 17 d Bm |
| RF Sensitivity | -70 d Bm |
| Mobile App Compatible | No |
| Cellular Support | No |
| Video Format | HDMI/SDI1080p: 60/59.94/50/30/29.97/25/24/23.98 1080i: 60/59.94/50 720p: 60/59.94/50 |
|---|---|
| Audio Format | 2-Channel LPCM Audio |
| Wireless Video Compression | Compressed |
| Timecode Support | No |
| Input Power | 7 to 17 VDC at 2 A |
|---|---|
| Battery | Receiver: 1x V-Mount on Fixed Plate Transmitter: 1x L-Series Mount on Fixed Plate |
| Power Consumption | Transmitter: 10 WReceiver: 20 W |
| Tripod/Accessory Mounting | 1x V-Lock |
|---|
| Status Display | On Transmitter & Receiver |
|---|---|
| Environmental Resistance | No |
| Operating Conditions | 14 to 122°F / -10 to 50°C |
| Storage Conditions | -40 to 176°F / -40 to 80°C |
| Dimensions | Transmitter: 5 x 3.7 x 1.5" / 126 x 94 x 39 mm Receiver: 7.8 x 5.5 x 2" / 199 x 139 x 52 mm |
| Package Weight | 19.9 lb |
|---|---|
| Box Dimensions (Lx WxH) | 16.8 x 12.4 x 6.8" |
