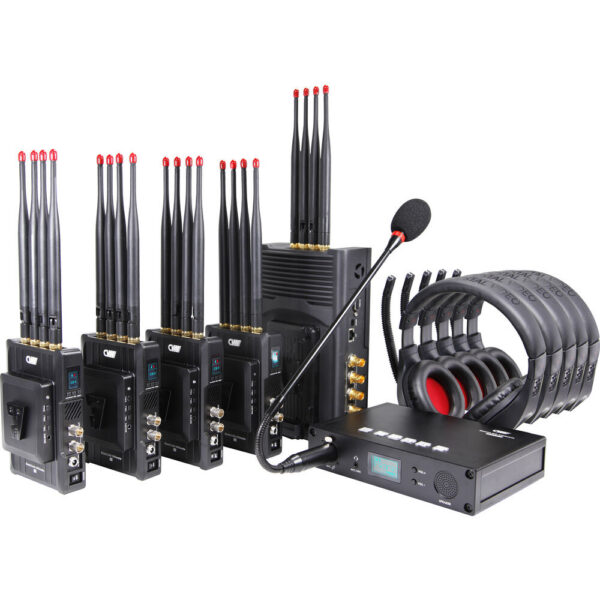

Crystal Video Technology Beam Link Ultimate 4-Channel Full HD Video Transmission System with Intercom Receiver
$7,035.00
In Stock
- 4 x Transmitters, 1 x Receiver
- 1 x Desktop Intercom Receiver
- HDMI and SDI Inputs
- HDMI and SDI Outputs
Tracked ShippingRates shown at checkout
60-Day ReturnsOn eligible items
Expert SupportReal people, real advice
Crystal Video Technology Beam Link Ultimate 4-Channel Full HD Video Transmission System with Intercom Receiver
The Crystal Video Technology Beam Link Ultimate 4-Channel Full HD Video Transmission System with Intercom Receiver is a dependable addition to a serious kit.
Highlights
- 4 x Transmitters, 1 x Receiver
- 1 x Desktop Intercom Receiver
- HDMI and SDI Inputs
- HDMI and SDI Outputs
Every order from NIXTRONIC ships tracked worldwide and is covered by our 60-day return policy on eligible items.
In the Box
- Crystal Video Technology Beam Link Ultimate 4-Channel Full HD Video Transmission System with Intercom Receiver
- 4 x Transmitter
- Receiver
- Intercom Receiver
- 16 x Antenna for Transmitter
- 4 x Antenna for Receiver
- Double Ball Head Arm Mount
- 8 x Headphones
- Gooseneck Microphone
- 4 x SDI Cable
- 8 x RS-232 Cable
- Network Cable
- 4 x Power Supply Cable
- 2 x Power Adapter
- Metal Stand
| SKU | BEAMLINKULTIMATEKIT |
|---|---|
| Brand | Crystal Video Technology |
| Antenna I/O | Transmitter: 4x RP-SMA Female Receiver: 4x RP-SMA Female |
|---|---|
| Video I/O | Transmitter: 1x BNC (3G-SDI) Input Transmitter: 1x BNC (3G-SDI) Loop Output Transmitter: 1x HDMI 1.4 Input Receiver: 4x BNC (3G-SDI) Output Receiver: 4x HDMI 1.4 Output |
| Embedded Audio | HDMI/SDI |
| Audio I/O | Transmitter: 1x 1/8" / 3.5 mm Headphone/Mic Input/Output Transmitter: 1x 1/8" / 3.5 mm Line Input |
| Power I/O | Transmitter: 1x Barrel (12 VDC / 2 A) Input Receiver: 1x XLR 4-Pin (12 VDC / 3 A) Input |
| Other I/O | Transmitter: 1x 1/8" / 3.5 mm (Tally) Output Transmitter: 1x Proprietary (RS-232/RS-422) Receiver: 1x Proprietary (RS-232/RS-422) Receiver: 1x DE-9/DB-9 (Tally) |
| Encryption | Yes: WPA2/WPS |
| Wireless | Wi-Fi 4 (802.11n) |
|---|---|
| Wireless Range | 1640.4' / 500 m |
| # of Channels | 4 |
| Channel Bandwidth | 40 MHz |
| Frequency Range | 5.1 to 5.8 GHz |
| Latency | 70 ms |
| RF Power | 19 d Bm |
| RF Sensitivity | -70 d Bm |
| Mobile App Compatible | No |
| Cellular Support | No |
| Video Format | SDI1080p: 60/59.94/50/30/29.97/25/24/23.98 1080i: 60/59.94/50 720p: 60/59.94/50 HDMI1080p: 60/59.94/50/30/29.97/25/24/23.98 1080i: 60/59.94/50 720p: 60/59.94/50 |
|---|---|
| Audio Format | 16-Bit 48 k Hz PCM Audio |
| Wireless Video Compression | Compressed |
| Timecode Support | No |
| Input Power | 7 to 17 VDC |
|---|---|
| Battery | Receiver: 1x V-Mount on Fixed Plate Transmitter: 1x L-Series Mount on Fixed Plate |
| Power Consumption | Transmitter: 10 WReceiver: 20 W |
| Tripod/Accessory Mounting | Not Specified by Manufacturer |
|---|
| Status Display | On Transmitter & Receiver |
|---|---|
| Environmental Resistance | No |
| Operating Conditions | 14 to 122°F / -10 to 50°C |
| Storage Conditions | -40 to 176°F / -40 to 80°C |
