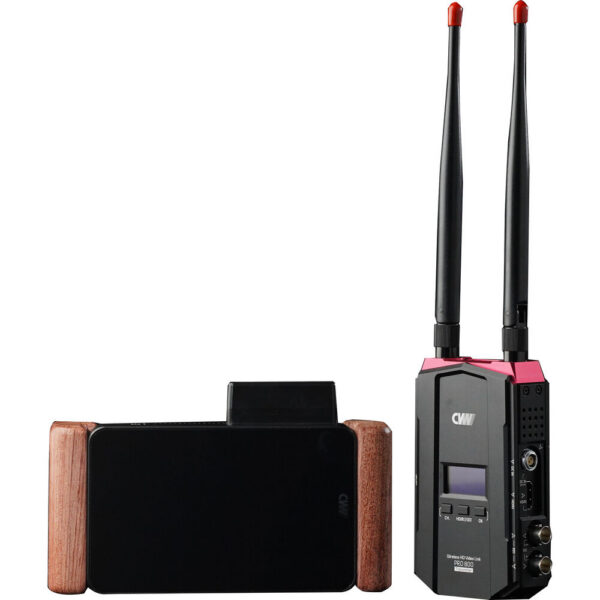

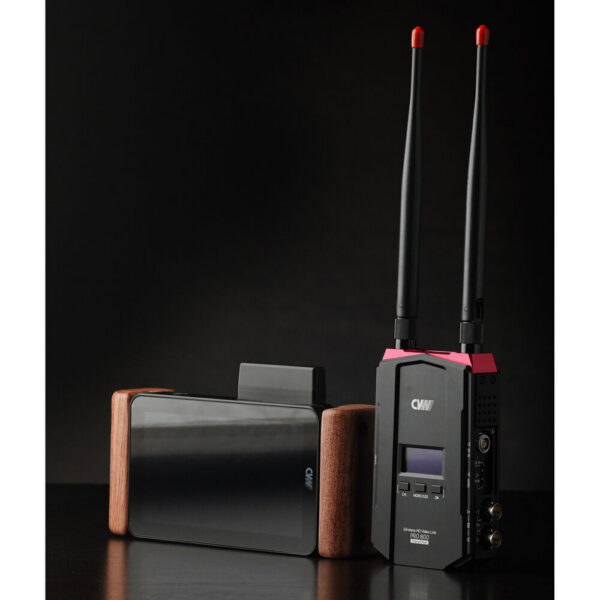

Crystal Video Technology PRO VUE Wireless Transmitter and Monitor Receiver Set (656')
$2,344.00
In Stock
- Wirelessly Transmit Video up to 656'
- Transmitter with HDMI/SDI Input, SDI Out
- 5.5" Monitor with Embedded Receiver
- 1500 cd/m² Brightness, 1000:1 Contrast
Tracked ShippingRates shown at checkout
60-Day ReturnsOn eligible items
Expert SupportReal people, real advice
Crystal Video Technology PRO VUE Wireless Transmitter and Monitor Receiver Set (656')
Designed for people who rely on their gear, the Crystal Video Technology PRO VUE Wireless Transmitter and Monitor Receiver Set (656') delivers solid, consistent performance. It offers a 5.5" display at 1920 x 1080.
Highlights
- Wirelessly Transmit Video up to 656'
- Transmitter with HDMI/SDI Input, SDI Out
- 5.5" Monitor with Embedded Receiver
- 1500 cd/m² Brightness, 1000:1 Contrast
Every order from NIXTRONIC ships tracked worldwide and is covered by our 60-day return policy on eligible items.
In the Box
- Crystal Video Technology PRO VUE Wireless Transmitter and Monitor Receiver Set (656')
- Transmitter
- Monitor Receiver
- 3 x Antenna
- V-Lock Mount
- SDI Cable
- D-Tap to 2-Pin LEMO-Type Power Cable
- D-Tap to 6-Pin LEMO-Type Power Cable
- Magic Arm with Shoe Mount
- Lanyard
- Allen Wrench
- Carry Case
| SKU | PROVUEKIT |
|---|---|
| Brand | Crystal Video Technology |
| Panel Type | LCD |
|---|---|
| Display Size | 5.5" / 14 cm |
| Native Resolution | 1920 x 1080 |
| Aspect Ratio | 16:9 |
| Viewing Angle | Horizontal: 178°Vertical: 178° |
| Touchscreen | No |
| Maximum Brightness | 1500 nits / cd/m2 |
| Contrast Ratio | 1000:1 |
| HDR Support | Yes |
| LUT Support | Yes |
| Image Controls | Anamorphic De-Squeeze, Blue Only, Customizable Aspect Ratios, False Color, Green Only, Histogram, Image Flip, Red Only, RGB Parade, Waveform, Zebra |
| Antenna I/O | Transmitter: 2x RP-SMA Female |
|---|---|
| Video I/O | Transmitter: 1x BNC (3G-SDI) Input Transmitter: 1x HDMI (Unspecified Signal) Input Transmitter: 1x BNC (3G-SDI) Output |
| Embedded Audio | HDMI/SDI/Wireless: 2-Channel |
| Audio I/O | Receiver: 1x 1/8" / 3.5 mm Headphone Output |
| Built-In Speaker | No |
| Power I/O | Transmitter: 1x LEMO 2-Pin (17 VDC) Input Receiver: 1x LEMO 6-Pin (36 VDC) Input |
| Other I/O | Receiver: 1x USB-A 2.0 Input |
| Media/Memory Card Slot | No |
| Wireless | Wi-Fi |
|---|---|
| Wireless Range | 656.2' / 200 m (Line-of-Sight) |
| Channel Bandwidth | 40 MHz |
| Latency | < 1 ms |
| RF Power | 20 d Bm |
| RF Sensitivity | -70 d Bm |
| Mobile App Compatible | No |
| Video Format | HDMI/SDI1080p: 60/50/30/25/24/23.98 1080 PsF: 25/24/23.98 1080i: 60/59.94/50 720p: 60/59.94/50 576p 576i 480p 480i |
|---|---|
| Audio Format | 2-Channel PCM Audio |
| Input Power | 6 to 36 VDC |
|---|---|
| Power Consumption | Transmitter: 12 WReceiver: 15 W |
| Tripod/Accessory Mounting | Transmitter, Bottom1x 1/4"-20 Female Transmitter, Back1x V-Lock |
|---|
| Environmental Resistance | No |
|---|---|
| Operating Conditions | 14 to 122°F / -10 to 50°C |
| Storage Conditions | -40 to 176°F / -40 to 80°C |
| Dimensions | Transmitter: 4.7 x 3.1 x 1.3" / 119 x 79 x 32 mm Receiver: 5.7 x 4.4 x 1.3" / 145 x 113 x 32 mm |
