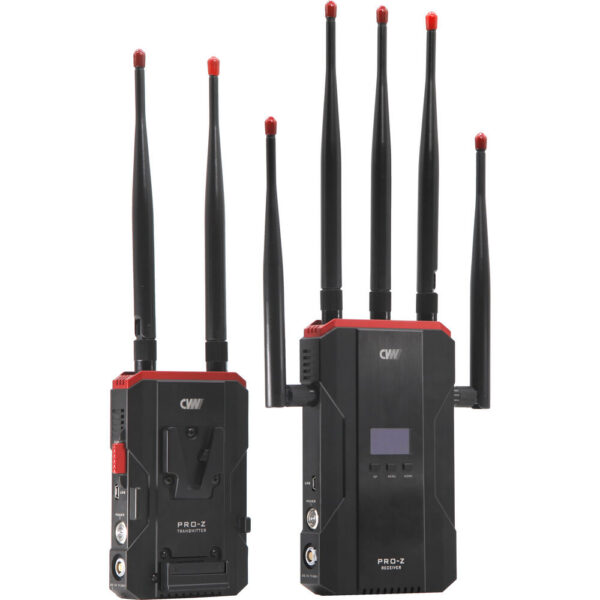

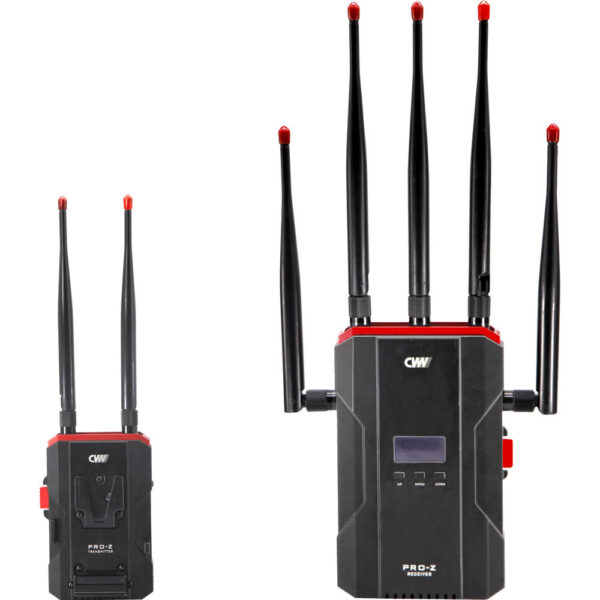

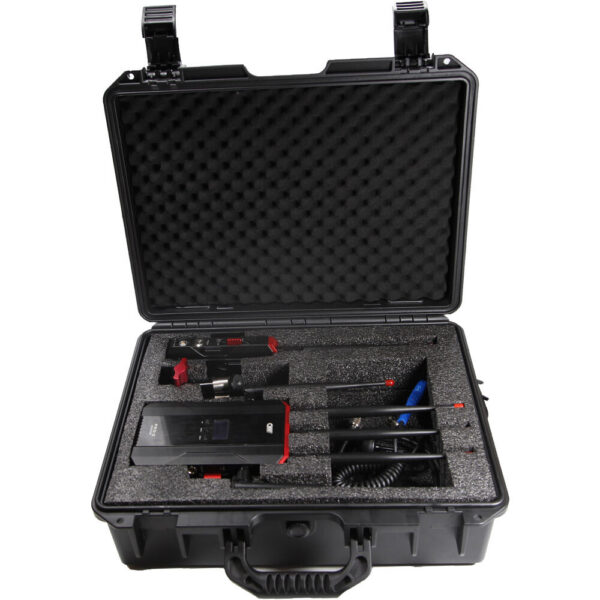

Crystal Video Technology PRO Z Zero-Delay Wireless Video System with 1 x TX & 1 RX
$2,957.00
In Stock
- Up to 2625' Line-of-Sight Range
- Supports up to 1080p60 10-Bit Video
- Transmitter: 1 x HDMI & 1 x SDI Inputs
- Receiver: 1 x HDMI & 2 x SDI Outputs
Tracked ShippingRates shown at checkout
60-Day ReturnsOn eligible items
Expert SupportReal people, real advice
Crystal Video Technology PRO Z Zero-Delay Wireless Video System with 1 x TX & 1 RX
Designed for people who rely on their gear, the Crystal Video Technology PRO Z Zero-Delay Wireless Video System with 1 x TX & 1 RX delivers solid, consistent performance.
Highlights
- Up to 2625' Line-of-Sight Range
- Supports up to 1080p60 10-Bit Video
- Transmitter: 1 x HDMI & 1 x SDI Inputs
- Receiver: 1 x HDMI & 2 x SDI Outputs
Ordered from NIXTRONIC, it ships with full tracking worldwide and is backed by our 60-day returns on eligible items.

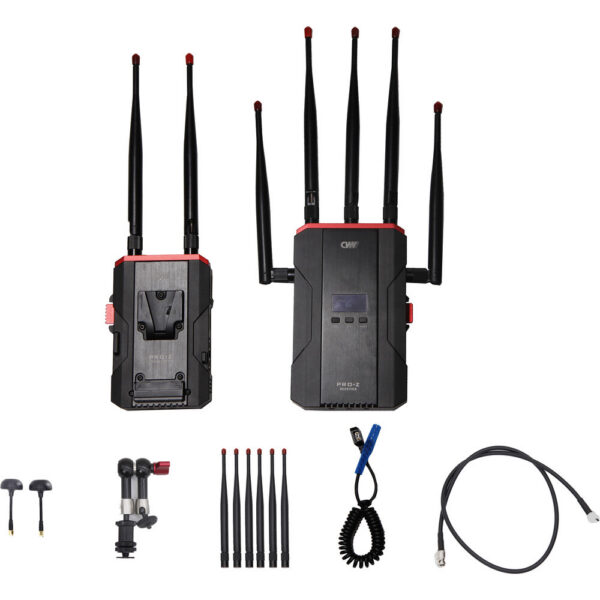

In the Box
- Crystal Video Technology PRO Z Zero-Delay Wireless Video System with 1 x TX & 1 RX

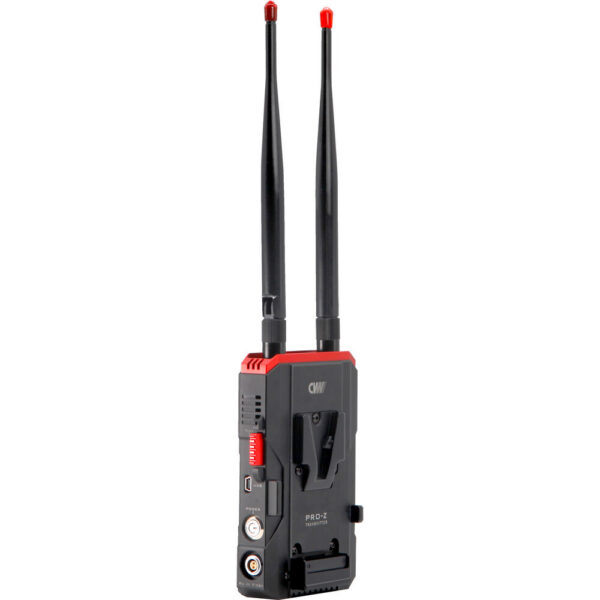

- Transmitter

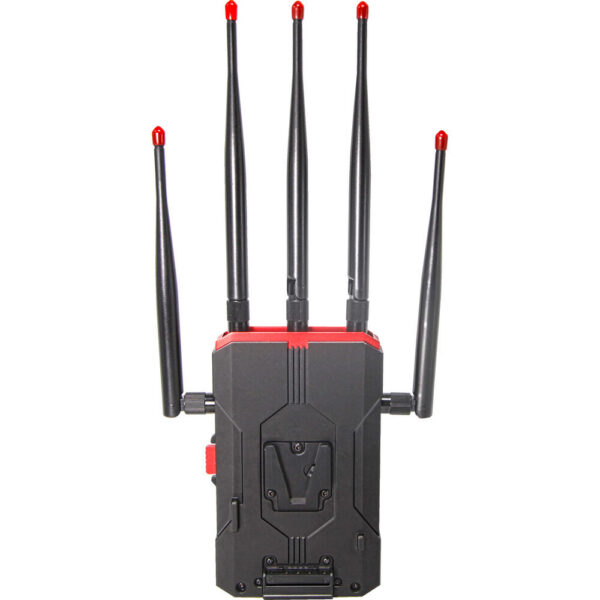

- Receiver
- 7 x Antenna
- 2 x Mushroom Antenna
- 2 x BNC Cable
- D-Tap to 2-Pin LEMO-Type
- Articulating Magic Arm with Cold Shoe (7')
| SKU | PROZ (7118+3118) |
|---|---|
| Brand | Crystal Video Technology |
| Antenna I/O | Transmitter: 2x RP-SMA Female Receiver: 5x RP-SMA Female |
|---|---|
| Video I/O | Transmitter: 1x BNC (3G-SDI) Input Transmitter: 1x HDMI (Unspecified Signal) Input Transmitter: 1x BNC (3G-SDI) Loop Output Receiver: 2x BNC (3G-SDI) Output Receiver: 1x HDMI (Unspecified Signal) Output |
| Embedded Audio | SDI: 2-ChannelHDMI: 2-Channel |
| Audio I/O | No |
| Power I/O | Transmitter: 1x LEMO 0B 2-Pin (36 VDC) Input Receiver: 1x LEMO 0B 2-Pin (36 VDC) Input |
| Other I/O | Transmitter: 1x USB-CReceiver: 1x USB-C |
| Wireless | 5.1 GHz Radio/RF / 5.8 GHz Radio/RF |
|---|---|
| Wireless Range | 2624.7' / 800 m (Line-of-Sight) |
| Channel Bandwidth | 40 MHz |
| Frequency Range | US: 5.1 to 5.8 GHz |
| RF Sensitivity | -70 d Bm |
| Mobile App Compatible | No |
| Cellular Support | No |
| Video Format | HDMI/SDI1080p: 60/50/30/25/24/23.98 1080 PsF: 25/24/23.98 1080i: 60/59.94/50 720p: 60/59.94/50 576p 576i 480p 480i |
|---|---|
| Audio Format | 2-Channel PCM Audio |
| Wireless Video Compression | Uncompressed |
| Timecode Support | Yes |
| Input Power | 7 to 36 VDC |
|---|---|
| Battery | Transmitter/Receiver: 1x V-Mount on Fixed Plate |
| Power Consumption | Transmitter: 12 WReceiver: 8 W |
| Tripod/Accessory Mounting | 3x 1/4"-20 Female1x 3/8"-16 Female1x V-Lock |
|---|
| Environmental Resistance | No |
|---|---|
| Operating Conditions | 14 to 122°F / -10 to 50°C |
| Storage Conditions | -40 to 176°F / -40 to 80°C |
| Dimensions | Transmitter: 5.3 x 3.6 x 1" / 134 x 92.5 x 24.5 mm Receiver: 6.5 x 4.2 x 1" / 165 x 106 x 26 mm |
