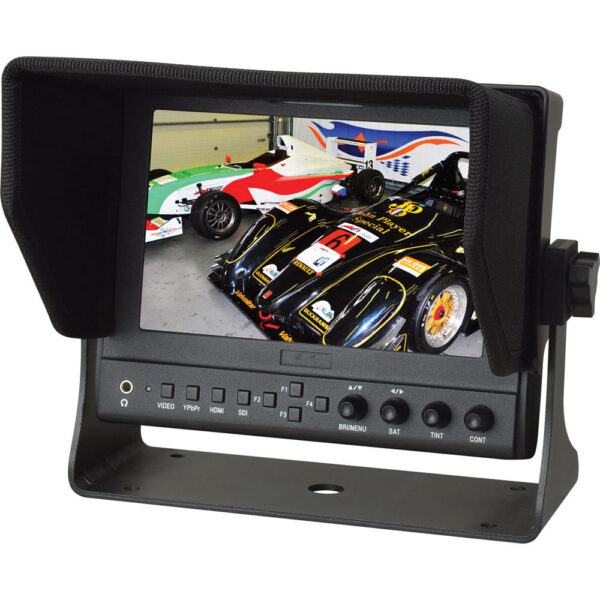

Delvcam 7" On-Camera 3G-SDI and HDMI Monitor with Video Waveform
$605.00
In Stock
- 1280x800 Resolution IPS LCD
- 3G-SDI and HDMI Inputs
- Component & Composite Inputs
- 3G-SDI and HDMI Outputs
Tracked ShippingRates shown at checkout
60-Day ReturnsOn eligible items
Expert SupportReal people, real advice
Delvcam 7" On-Camera 3G-SDI and HDMI Monitor with Video Waveform
Designed for people who rely on their gear, the Delvcam 7" On-Camera 3G-SDI and HDMI Monitor with Video Waveform delivers solid, consistent performance. It offers a 7.0" display at 1280 x 800.
Highlights
- 1280×800 Resolution IPS LCD
- 3G-SDI and HDMI Inputs
- Component & Composite Inputs
- 3G-SDI and HDMI Outputs
Every order from NIXTRONIC ships tracked worldwide and is covered by our 60-day return policy on eligible items.
In the Box
- Delvcam 7" On-Camera 3G-SDI and HDMI Monitor with Video Waveform
- NP-F970 Type Battery Plate
- LP-E6 Type Battery Plate
- Battery Plate Adapter Bracket
- HDMI Cable
- Power and Tally Cable
- DC Adapter
- Desktop Yoke Stand
- Sun Hood
- Carrying Case
| SKU | DELV-WFORM-7SDI |
|---|---|
| Brand | Delvcam |
| Panel Type | IPS-Type LCD |
|---|---|
| Display Size | 7.0" / 17.8 cm |
| Native Resolution | 1280 x 800 |
| Aspect Ratio | 16:9 |
| Viewing Angle | Horizontal: 178°Vertical: 178° |
| Touchscreen | No |
| Maximum Brightness | 400 nits / cd/m2 |
| Contrast Ratio | 800:1 |
| HDR Support | No |
| LUT Support | No |
| Image Controls | False Color, Focus Peaking, Histogram, Vectorscope, Waveform |
| Video I/O | 1x BNC (3G-SDI) Input 1x HDMI Input 1x 3BNC (Component) Input 1x BNC (Composite) Input 1x BNC (3G-SDI) Output 1x HDMI Output |
|---|---|
| Audio I/O | 1x 1/8" / 3.5 mm Headphone Output 1x 2RCA Input |
| Built-In Speaker | Mono |
| Power I/O | 1x XLR 4-Pin (24 VDC) Input |
| Other I/O | 1x DE-9/DB-9 (Tally) Input |
| Media/Memory Card Slot | No |
| Wireless | No |
|---|---|
| Mobile App Compatible | No |
| Input Power | 7 to 24 VDC at 0.9 A |
|---|---|
| Battery | 1x L-Series or LP-E6 Mount on Included, Interchangeable Plates |
| Power Consumption | 11 W |
| Tripod/Accessory Mounting | Bottom1x 1/4"-20 Female |
|---|
| Environmental Resistance | No |
|---|---|
| Operating Conditions | -4 to 140°F / -20 to 60°C |
| Storage Conditions | -22 to 158°F / -30 to 70°C |
| Material of Construction | Metal |
| Dimensions | 7.5 x 6 x 1.2" / 19.1 x 15.2 x 3 cm (Excluding Sun Hood)7.5 x 6 x 5.6" / 19.1 x 15.2 x 14.2 cm (Including Sun Hood) |
| Weight | 1.68 lb / 0.76 kg2.07 lb / 0.94 kg, Including Sun Hood4.76 lb / 2.16 kg, Including Case |
| Package Weight | 6.25 lb |
|---|---|
| Box Dimensions (Lx WxH) | 12.8 x 11.2 x 4.5" |
Reviews
There are no reviews yet.
