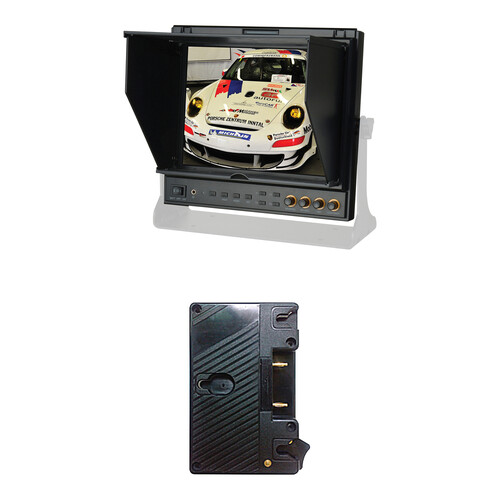

Delvcam 9.7" 3G-SDI/HDMI Monitor Kit with Gold Mount Battery Plate
$465.00
In Stock
- 9.7" 1024 x 768 3G-SDI & HDMI Monitor
- Gold Mount Battery Plate Included
- 400 cd/m² Brightness / 600:1 Contrast
- 178° Viewing Angles
Tracked ShippingRates shown at checkout
60-Day ReturnsOn eligible items
Expert SupportReal people, real advice
Delvcam 9.7" 3G-SDI/HDMI Monitor Kit with Gold Mount Battery Plate
Designed for people who rely on their gear, the Delvcam 9.7" 3G-SDI/HDMI Monitor Kit with Gold Mount Battery Plate delivers solid, consistent performance. It offers a 9.7" display at 1024 x 768.
Highlights
- 9.7" 1024 x 768 3G-SDI & HDMI Monitor
- Gold Mount Battery Plate Included
- 400 cd/m² Brightness / 600:1 Contrast
- 178° Viewing Angles
Ordered from NIXTRONIC, it ships with full tracking worldwide and is backed by our 60-day returns on eligible items.
In the Box

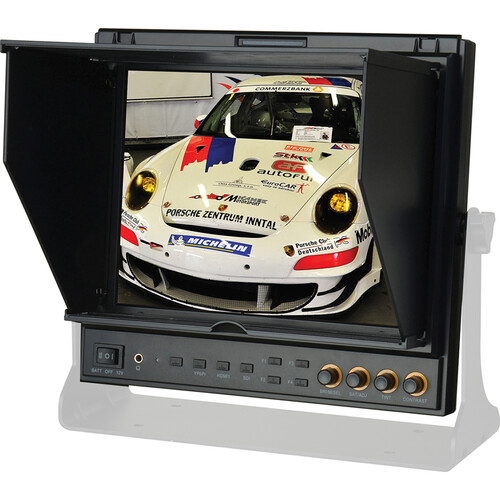

- Delvcam DELV-SDI-10 9.7" 3G-SDI and HDMI LCD Monitor
- Sony L-Series Battery Plate
- Canon LP-E6 Battery Plate
- Battery Plate Bracket
- HDMI Cable
- Power Adapter
- Tally Connector

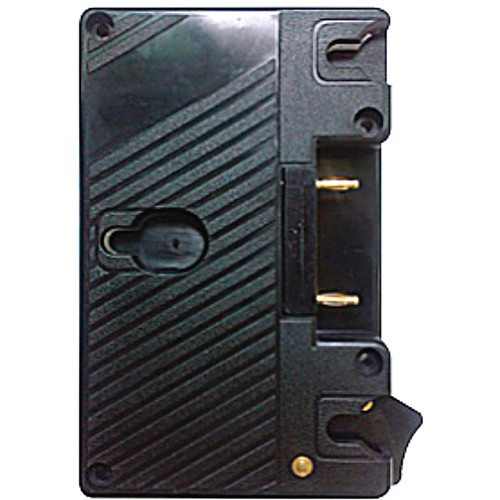

- Delvcam Gold Mount Battery Plate for Select Delvcam Monitors
- Set of M3 Mounting Screws
| SKU | DELV-SDI-10-AB |
|---|---|
| Brand | Delvcam |
| Panel Type | IPS-Type LCD |
|---|---|
| Display Size | 9.7" / 24.6 cm |
| Native Resolution | 1024 x 768 |
| Aspect Ratio | 4:3 |
| Viewing Angle | Horizontal: 178° (89/89) Vertical: 178° (89/89) |
| Touchscreen | No |
| Maximum Brightness | 400 nits / cd/m2 |
| Contrast Ratio | 600:1 |
| HDR Support | No |
| Video I/O | 1x BNC (3G-SDI) Output 1x HDMI Output 1x 3BNC (Component) Output 1x BNC (Composite) Output 1x BNC (3G-SDI) Input 1x 3BNC (Component) Input 1x BNC (Composite) Input 1x HDMI Input |
|---|---|
| Audio I/O | 1x RCA Input 1x 1/8" / 3.5 mm Headphone Output |
| Built-In Speaker | Mono |
| Power I/O | 1x USB-A Input 1x XLR 4-Pin Input |
| Other I/O | 1x DE-15/DB-15 (Tally) |
| Media/Memory Card Slot | No |
| Mobile App Compatible | No |
|---|
| Input Power | 7 to 24 VDC |
|---|---|
| Battery | 1x L-Series or LP-E6 Mount on Included, Interchangeable Plates |
| Power Consumption | 18 W |
| Tripod/Accessory Mounting | 1/4"-20 Female |
|---|
| Operating Conditions | -4 to 140°F / -20 to 60°C |
|---|---|
| Storage Conditions | -22 to 158°F / -30 to 70°C |
| Dimensions | 9.7 x 8.8 x 1.2" / 24.6 x 22.4 x 3.1 cm |
| Weight | 2.36 lb / 1.07 kg |
| Package Weight | 10 lb |
|---|---|
| Box Dimensions (Lx WxH) | 16.6 x 13.3 x 5.2" |
