Delvcam 9.7" 3G-SDI & HDMI Monitor with V-Mount Type Battery Plate & Sun Hood

Name: Delvcam 9.7" 3G-SDI & HDMI Monitor with V-Mount Type Battery Plate & Sun Hood
Brand: Delvcam
SKU: DELV-SDI-10-VM
Price: 465.00 USD
Availability: InStock

(0)

Be the first to review SKU: DELV-SDI-10-VM

$465.00

In Stock

1024 x 768 3G-SDI, HDMI, Component
Peaking, False Color, Histogram
400 Nit Brightness, 600:1 Contrast
Includes V-Mount Type Batt Plate

Tracked ShippingRates shown at checkout
60-Day ReturnsOn eligible items
Expert SupportReal people, real advice

Delvcam 9.7" 3G-SDI & HDMI Monitor with V-Mount Type Battery Plate & Sun Hood

Designed for people who rely on their gear, the Delvcam 9.7" 3G-SDI & HDMI Monitor with V-Mount Type Battery Plate & Sun Hood delivers solid, consistent performance. It offers a 9.7" display at 1024 x 768.

Highlights

1024 x 768 3G-SDI, HDMI, Component
Peaking, False Color, Histogram
400 Nit Brightness, 600:1 Contrast
Includes V-Mount Type Batt Plate

Ordered from NIXTRONIC, it ships with full tracking worldwide and is backed by our 60-day returns on eligible items.

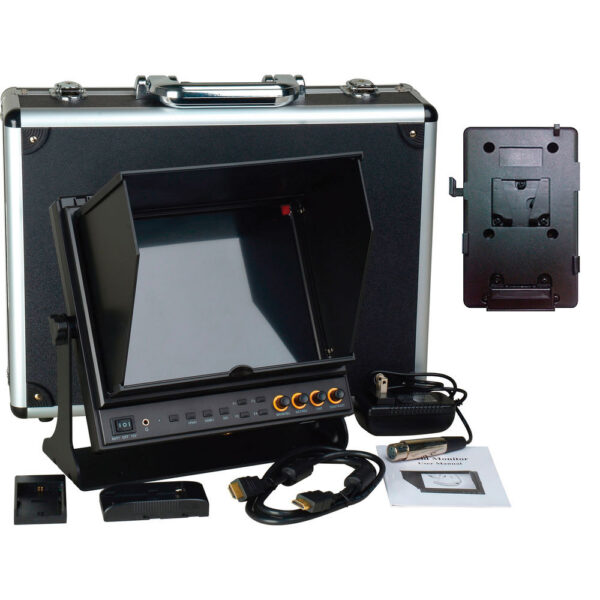

In the Box

Delvcam 9.7" 3G-SDI & HDMI Monitor with V-Mount Type Battery Plate & Sun Hood
Flexible Folding Sun Hood
Battery Plate Bracket
V-Mount Type Battery Plate
Sony L Series Type Battery Plate
Canon LP-E6 Type Battery Plate
HDMI Type A to Type A Cable
12 VDC Power Supply
Tally Connector
Desktop Stand
2 x Rosettes
2 x Locking Knobs

SKU	DELV-SDI-10-VM
Brand	Delvcam

Display
Panel Type	IPS-Type LCD
Display Size	9.7" / 24.6 cm
Native Resolution	1024 x 768
Aspect Ratio	4:3
Viewing Angle	Horizontal: 178°Vertical: 178°
Touchscreen	No
Maximum Brightness	400 nits / cd/m2
Contrast Ratio	600:1
HDR Support	No
LUT Support	No
Image Controls	Customizable Aspect Ratios, False Color, Focus Peaking, Histogram, Pixel-to-Pixel Zoom

Inputs/Outputs
Video I/O	1x BNC (Composite) Input 1x BNC (3G-SDI) Input 1x HDMI Input 1x 3BNC (Component) Input 1x 3BNC (Component) Output 1x HDMI Output 1x BNC (3G-SDI) Output
Audio I/O	1x 1/8" / 3.5 mm Headphone Output 1x 2RCA Input
Built-In Speaker	Mono
Power I/O	1x USB-A (5 VDC) Output
Other I/O	1x DE-9/DB-9 (Tally) Input
Media/Memory Card Slot	No

Wireless
Wireless	No
Mobile App Compatible	No

Power
Input Power	7 to 24 VDC at 1.5 A
Battery	1x V-Mount on Fixed Plate
Power Consumption	18 W

Mounting
Tripod/Accessory Mounting	1/4"-20 Female

General
Environmental Resistance	Dust/Water-Resistant (IP52)
Operating Conditions	-4 to 140°F / -20 to 60°C
Storage Conditions	-22 to 158°F / -30 to 70°C
Dimensions	9.7 x 8.8 x 1.2" / 24.6 x 22.4 x 3 cm (Excluding Sun Hood)9.7 x 8.8 x 6.6" / 24.6 x 22.4 x 16.8 cm (Including Sun Hood)
Weight	2.36 lb / 1.07 kg3.06 lb / 1.39 kg, Including Sun Hood
