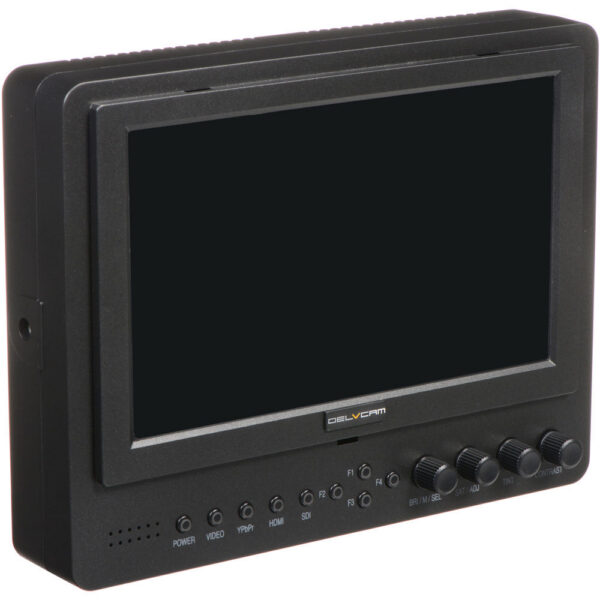

Delvcam DELV-SDI-7 7" 3G-SDI and HDMI On-Camera LED Monitor
$440.00
In Stock
- 1024 x 600 Resolution
- 3G/HD/SD-SDI and HDMI Inputs
- Component & Composite Inputs
- SDI, HDMI, Composite Outputs
Tracked ShippingRates shown at checkout
60-Day ReturnsOn eligible items
Expert SupportReal people, real advice
Delvcam DELV-SDI-7 7" 3G-SDI and HDMI On-Camera LED Monitor
The Delvcam DELV-SDI-7 7" 3G-SDI and HDMI On-Camera LED Monitor is a dependable addition to a serious kit. It offers a 7" display at 1024 x 600.
Highlights
- 1024 x 600 Resolution
- 3G/HD/SD-SDI and HDMI Inputs
- Component & Composite Inputs
- SDI, HDMI, Composite Outputs
Ordered from NIXTRONIC, it ships with full tracking worldwide and is backed by our 60-day returns on eligible items.
In the Box
- Delvcam DELV-SDI-7 7" 3G-SDI and HDMI On-Camera LED Monitor

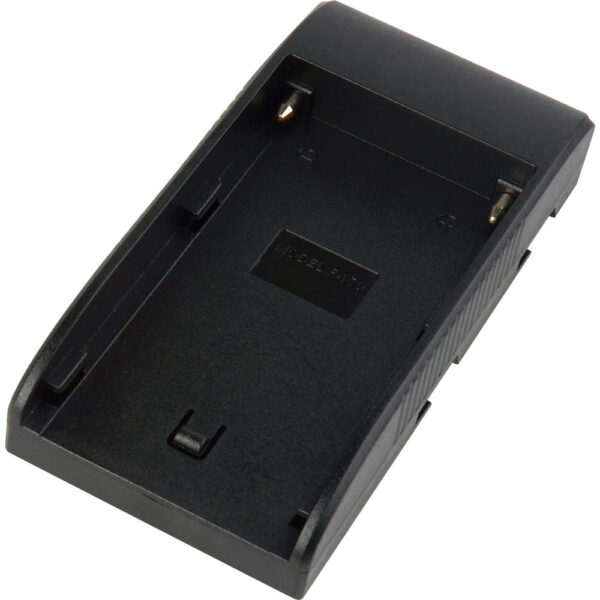

- NP-F970 Type Battery Plate

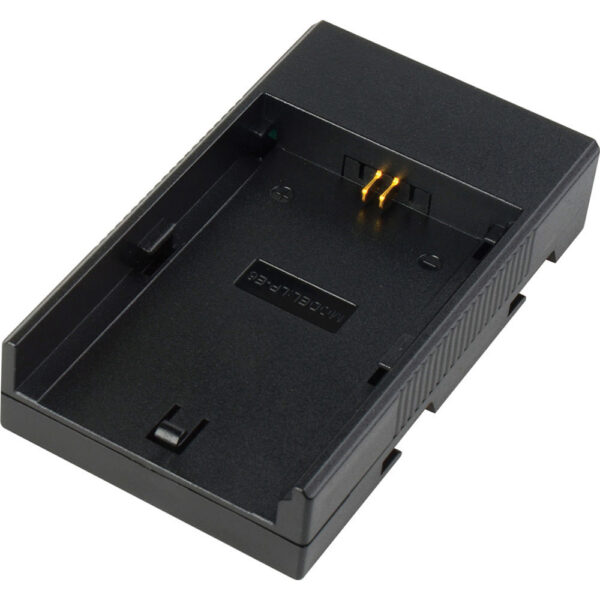

- LP-E6 Type Battery Plate
- Mini HDMI to HDMI Cable
- DC Adapter

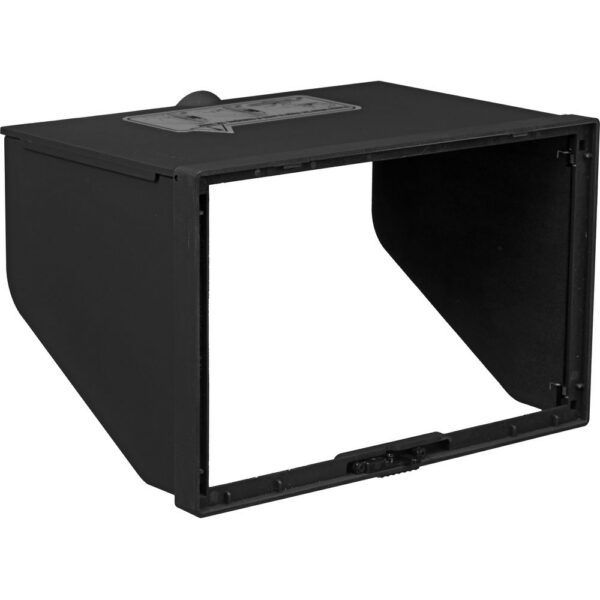

- Sun Hood
- Swivel Shoe Mount
| SKU | DELV-SDI-7 |
|---|---|
| Brand | Delvcam |
| Panel Type | TFT LCD |
|---|---|
| Display Size | 7" / 17.7 cm |
| Native Resolution | 1024 x 600 |
| Aspect Ratio | 16:9 |
| Viewing Angle | Horizontal: 160°Vertical: 150° |
| Touchscreen | No |
| Maximum Brightness | 250 nits / cd/m2 |
| Contrast Ratio | 800:1 |
| HDR Support | No |
| LUT Support | No |
| Image Controls | False Color, Focus Peaking |

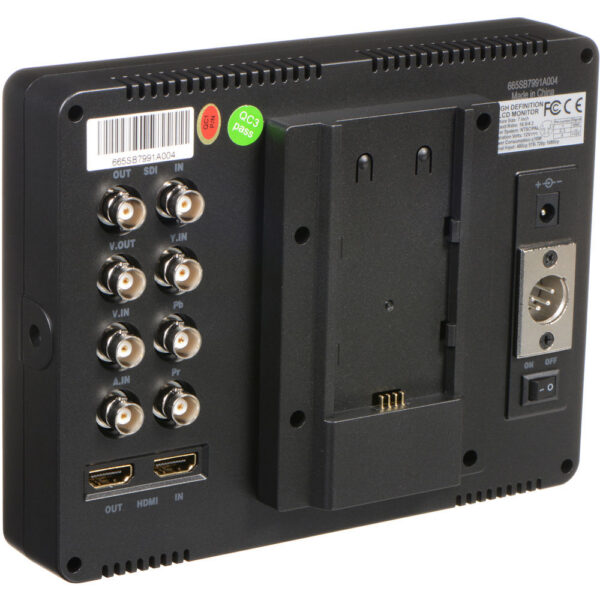

| Video I/O | 1x BNC (3G-SDI) Output 1x HDMI Output 1x BNC (Composite) Output 1x 3BNC (Component) Output 1x VGA (RGBHV) Output 1x BNC (3G-SDI) Input 1x 3BNC (Component) Input 1x BNC (Composite) Input 1x HDMI Input |
|---|---|
| Audio I/O | 1x BNC Input |
| Built-In Speaker | Mono |
| Power I/O | 1x XLR 4-Pin Input |
| Other I/O | No |
| Media/Memory Card Slot | No |
| Wireless | No |
|---|---|
| Mobile App Compatible | No |
| Video Format | Composite576i 480i Component576i 480i 480p: 59.94 576p: 50 720p: 60/59.94/50 1080i: 60/59.94/50 1080p: 59.94/50 HDMI480i 480p: 59.94 576i 576p: 50 720p: 60/59.94/50/30/29.97 1080i: 60/59.94/50 1080p: 59.94/50/30/29.97/25/24/23.98 SDI480i 576i 720p: 60/59.94/50/30/29.97 1080i: 60/59.94/50 1080p: 59.94/50/30/29.97/25/24/23.98 |
|---|
| Input Power | 6.5 to 24 VDC |
|---|---|
| Battery | 1x L-Series or LP-E6 Mount on Included, Interchangeable Plates |
| Power Consumption | 10 W |
| Tripod/Accessory Mounting | Bottom/Left/Right1x 1/4"-20 Female |
|---|
| Environmental Resistance | No |
|---|---|
| Operating Conditions | -4 to 140°F / -20 to 60°C |
| Storage Conditions | -22 to 158°F / -30 to 70°C |
| Dimensions | 7.66 x 5.9 x 1.52" / 19.45 x 15 x 3.85 cm7.66 x 6.24 x 5.91" / 19.46 x 15.85 x 15.01 cm (Including Sun Hood) |
| Weight | 16.93 oz / 480.00 g22.58 oz / 640.00 g, Including Sun Hood |
| Package Weight | 3.1 lb |
|---|---|
| Box Dimensions (Lx WxH) | 12.441 x 9.764 x 3.465" |
