Nimbus Wi Mi5200 Wireless Transmission System with Wi Mi1000 Repeater Bundle

Name: Nimbus Wi Mi5200 Wireless Transmission System with Wi Mi1000 Repeater Bundle
Brand: Nimbus
SKU: WIMI5200T/R/1000
Price: 2380.00 USD
Availability: InStock

(0)

Be the first to review SKU: WIMI5200T/R/1000

$2,380.00

In Stock

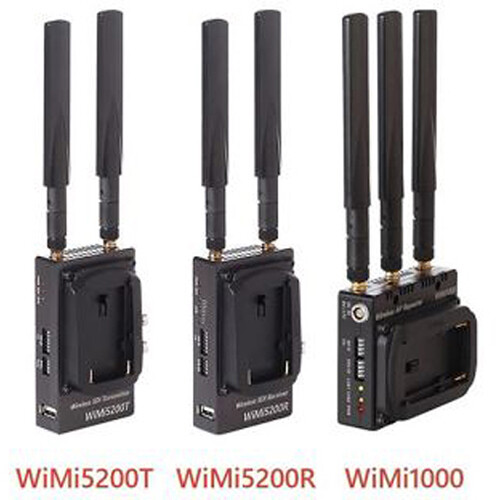

1 x 3G-SDI Transmitter/Encoder
1 x 3G-SDI Receiver/Decoder
Wi Mi1000 Wireless AP Repeater
1968' Range via 5 GHz, Extends to 6000'

Tracked ShippingRates shown at checkout
60-Day ReturnsOn eligible items
Expert SupportReal people, real advice

Nimbus Wi Mi5200 Wireless Transmission System with Wi Mi1000 Repeater Bundle

The Nimbus Wi Mi5200 Wireless Transmission System with Wi Mi1000 Repeater Bundle is built to support demanding work, in the studio and on location.

Highlights

1 x 3G-SDI Transmitter/Encoder
1 x 3G-SDI Receiver/Decoder
Wi Mi1000 Wireless AP Repeater
1968' Range via 5 GHz, Extends to 6000'

Ordered from NIXTRONIC, it ships with full tracking worldwide and is backed by our 60-day returns on eligible items.

In the Box

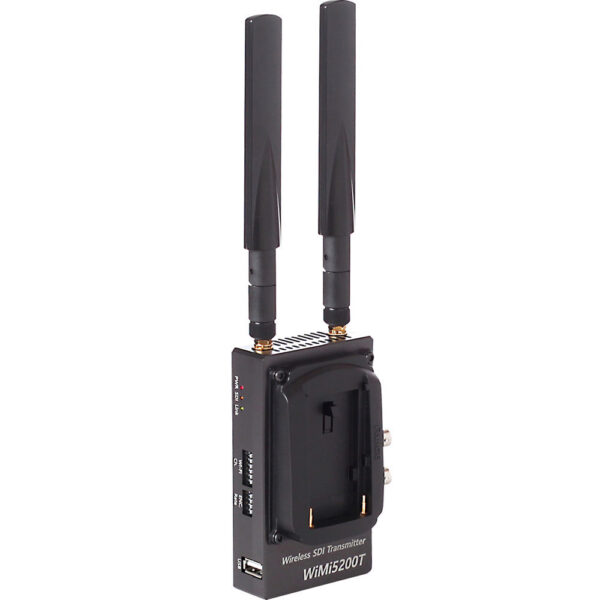

Nimbus Wi Mi5200 Wireless 3G-SDI H.264 Encoder/Transmitter

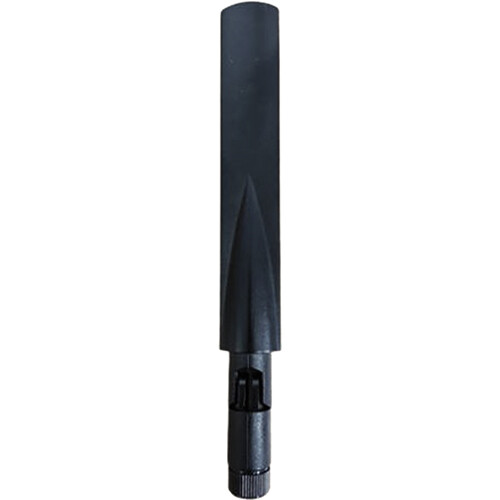

2 x 6 d Bi Bar Antenna
Sony L-Series Battery Plate

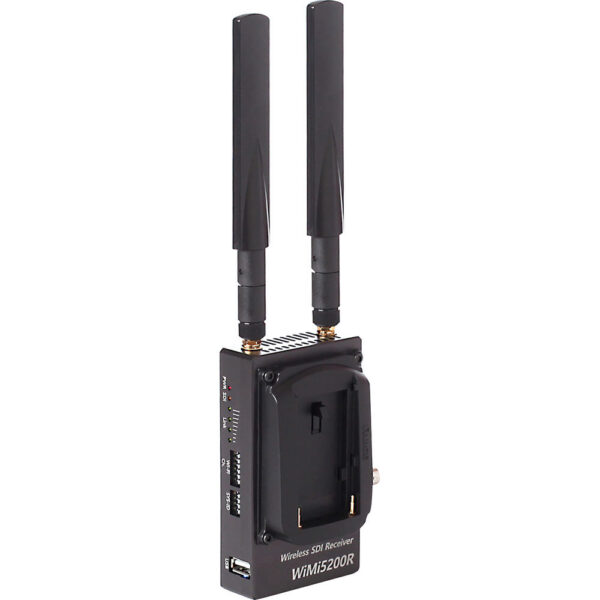

Nimbus Wi Mi5200 Wireless 3G-SDI H.264 Decoder/Receiver

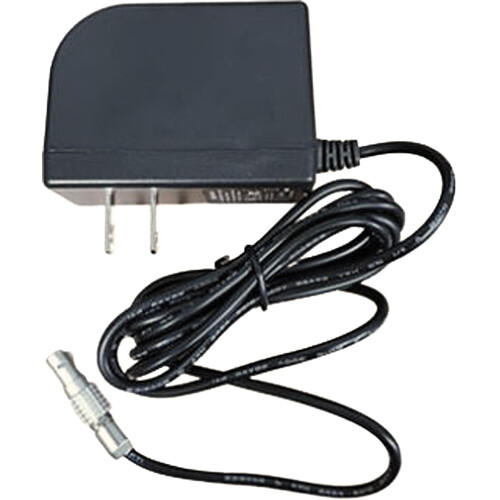

Nimbus DCA12M Mini 12 VDC Adapter for Wi Mi6220, Wi Mi5150A, and Wi Mi5200

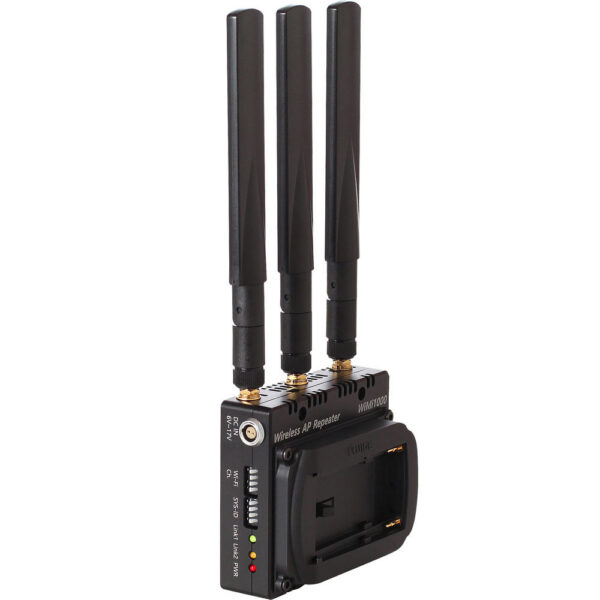

Nimbus Wi Mi1000 Wireless AP Repeater for Wi Mi5150A, Wi Mi5200, Wi Mi5200A & Wi Mi6220 Wireless Systems
3 x 6 d Bi Bar Antenna
L-Series Battery Plate

SKU	WIMI5200T/R/1000
Brand	Nimbus

Wireless
Wireless Range	1968.5' / 600 m (Line-of-Sight)
# of Channels	12 (40 MHz)
Latency	≤ 30 ms
Wi-Fi	5 GHz Wi-Fi 4 (802.11n)

Interfaces
Video I/O	1x BNC (3G-SDI / HD-SDI / SD-SDI) Input 1x BNC (3G-SDI / HD-SDI / SD-SDI) Loop Output
Embedded Audio	SDI

Format Support
Video Format	SDI/BNC: 1080p at 23.98, 24, 25, 29.97, 30, 50, 59.94, 60 fps SDI/BNC: 1080 PsF at 25, 29.97, 30 fps SDI/BNC: 1080i at 50, 59.94, 60 fps SDI/BNC: 720p at 50, 59.94, 60 fps SDI/BNC: 576i at 50 fps SDI/BNC: 480i at 59.94 fps
Video Standard Compliance	SMPTE 274M/296M
