Nimbus Wi Mi5200A Wireless 3G-SDI H.264 Encoder/Decoder Set
$1,972.00
In Stock
- 4921' Range over 5 GHz Wi-Fi
- 30ms Latency
- Up to 1080p60 SDI Signals
- Transmitter: SDI Input & Loop Output
Tracked ShippingRates shown at checkout
60-Day ReturnsOn eligible items
Expert SupportReal people, real advice
Nimbus Wi Mi5200A Wireless 3G-SDI H.264 Encoder/Decoder Set
Designed for people who rely on their gear, the Nimbus Wi Mi5200A Wireless 3G-SDI H.264 Encoder/Decoder Set delivers solid, consistent performance.
Highlights
- 4921' Range over 5 GHz Wi-Fi
- 30ms Latency
- Up to 1080p60 SDI Signals
- Transmitter: SDI Input & Loop Output
Every order from NIXTRONIC ships tracked worldwide and is covered by our 60-day return policy on eligible items.
In the Box

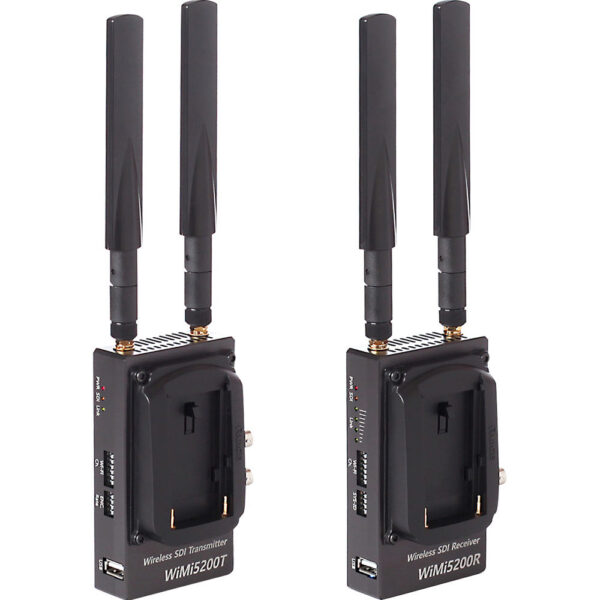

- Nimbus Wi Mi5200A Wireless 3G-SDI H.264 Encoder/Decoder Set

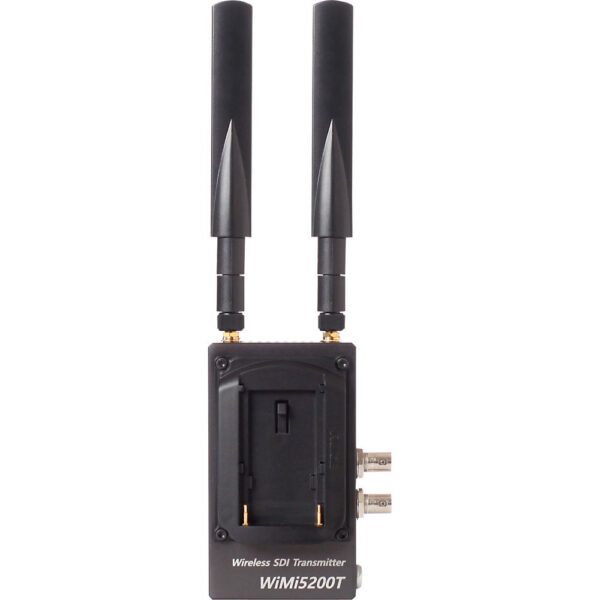

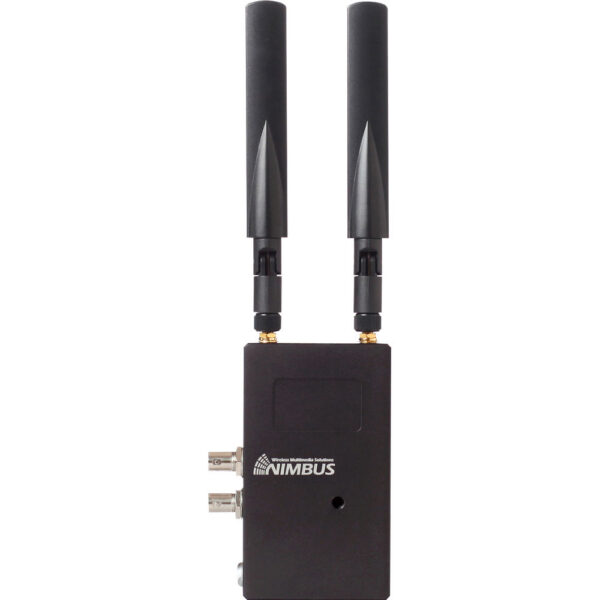

- Wi Mi5200A Transmitter

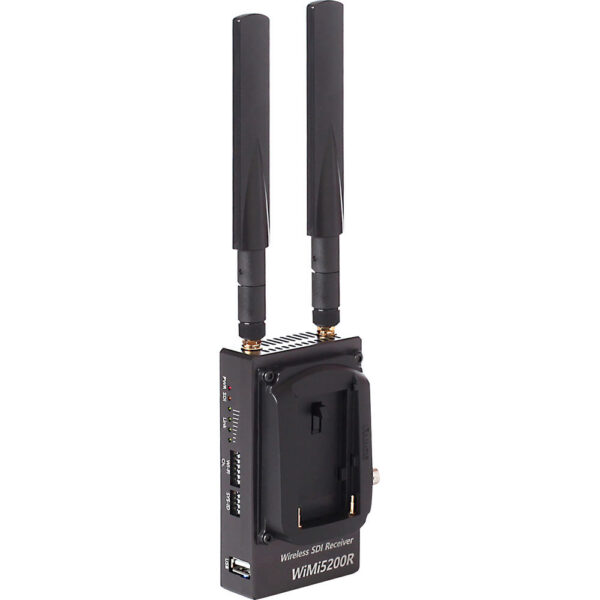

- Wi Mi5200A Receiver
- 3 x 6 d Bi Bar Antenna for Transmitter
- 3 x 6 d Bi Bar Antenna for Receiver
- Sony L-Series Battery Plate
- Nimbus DCA12M Mini 12 VDC Adapter for Wi Mi6220, Wi Mi5150A, and Wi Mi5200
| SKU | WIMI5200AT/R |
|---|---|
| Brand | Nimbus |
| Wireless Range | 4921.3' / 1500 m (Line-of-Sight) |
|---|---|
| # of Channels | 12 (40 MHz) |
| Latency | ≤ 30 ms |
| Wi-Fi | 5 GHz Wi-Fi 4 (802.11n) |

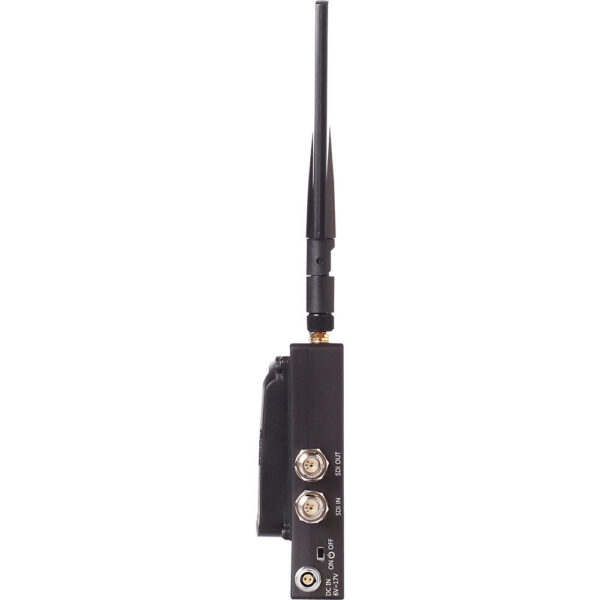

| Transmitter Video Connectors | 1x BNC (3G-SDI / HD-SDI / SD-SDI) Input 1x BNC (3G-SDI / HD-SDI / SD-SDI) Loop Output |
|---|---|
| Receiver Video Connectors | 1x BNC (3G-SDI / HD-SDI / SD-SDI) Output |
| Embedded Audio | SDI |
| Video Format | SDI/BNC: 1080p at 23.98, 24, 25, 29.97, 30, 50, 59.94, 60 fps SDI/BNC: 1080 PsF at 25, 29.97, 30 fps SDI/BNC: 1080i at 50, 59.94, 60 fps SDI/BNC: 720p at 50, 59.94, 60 fps SDI/BNC: 576i at 50 fps SDI/BNC: 480i at 59.94 fps |
|---|---|
| Video Standard Compliance | SMPTE 274M/296M |
| Transmitter Battery Support | 1x Sony L-Series / NP-F Type |
|---|---|
| Transmitter Power I/O | 1x LEMO 2-Pin Input |
| Receiver Power I/O | 1x LEMO 2-Pin Input |
| Transmitter Mounting | 1x 1/4"-20 Female |
|---|---|
| Receiver Mounting | 1x 1/4"-20 Female |
| Transmitter Dimensions | 4.6 x 2.7 x 1" / 11.8 x 6.8 x 2.5 cm |
| Receiver Dimensions | 4.6 x 2.7 x 1" / 11.8 x 6.8 x 2.5 cm |
| Transmitter Weight | 0.6 lb / 260 g |
| Receiver Weight | 0.6 lb / 260 g |
