Nimbus Wi Mi6220 Wireless Transmission System Bundle (V-Mount)
$3,672.00
In Stock
- 1 x 3G-SDI/HDMI Transmitter/Encoder
- 2 x 3G-SDI/HDMI Receiver/Decoders
- 4921' Range over 5 GHz Wi-Fi
- Up to 1080p60 Video Signals, H.264 Codec
Tracked ShippingRates shown at checkout
60-Day ReturnsOn eligible items
Expert SupportReal people, real advice
Nimbus Wi Mi6220 Wireless Transmission System Bundle (V-Mount)
The Nimbus Wi Mi6220 Wireless Transmission System Bundle (V-Mount) is built to support demanding work, in the studio and on location.
Highlights
- 1 x 3G-SDI/HDMI Transmitter/Encoder
- 2 x 3G-SDI/HDMI Receiver/Decoders
- 4921' Range over 5 GHz Wi-Fi
- Up to 1080p60 Video Signals, H.264 Codec
Every order from NIXTRONIC ships tracked worldwide and is covered by our 60-day return policy on eligible items.

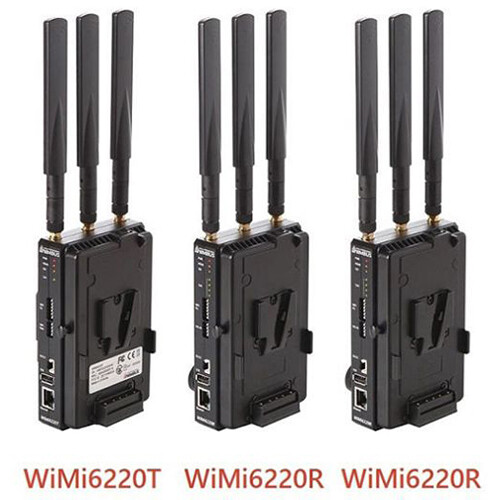

In the Box

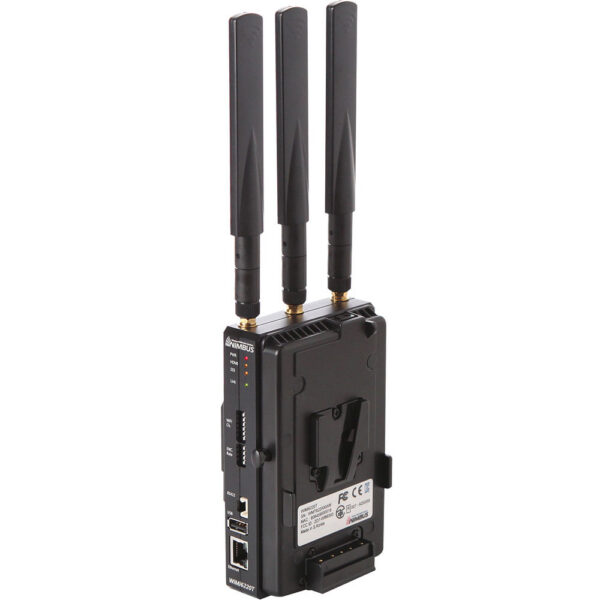

- Nimbus Wi Mi6220 Wireless 3G-SDI & HDMI H.264 Encoder/Transmitter (V-Mount)

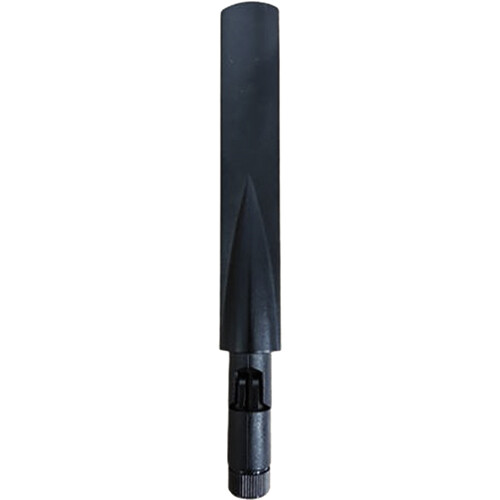

- 3 x Bar Antenna (6 d Bi)
- RJ45 Adapter for RS-422
- V-Mount Battery Plate

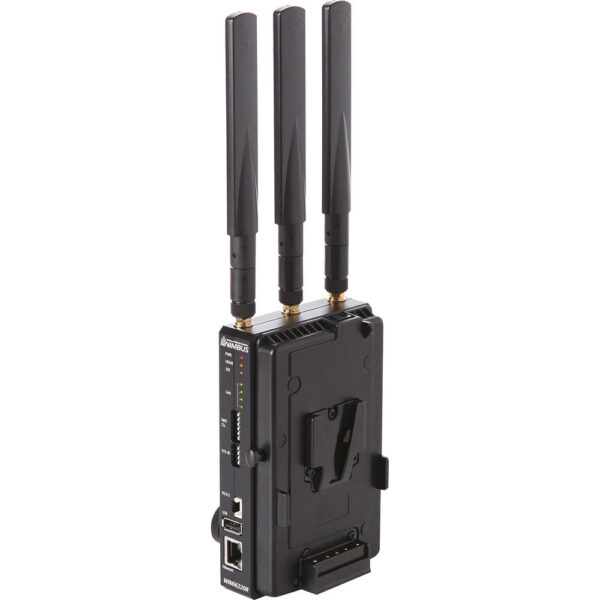

- 2 x Nimbus Wi Mi6220 Wireless 3G-SDI & HDMI H.264 Decoder/Receiver (V-Mount)

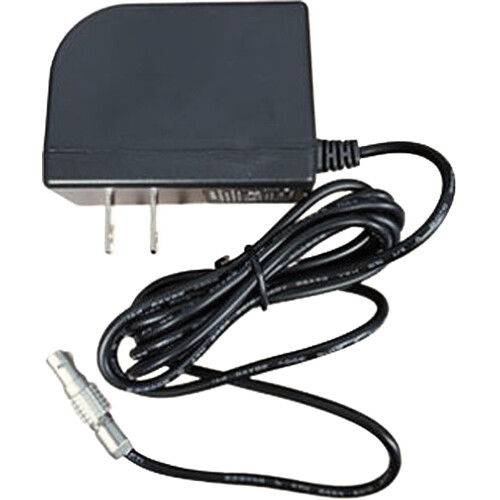

- Nimbus DCA12M Mini 12 VDC Adapter for Wi Mi6220, Wi Mi5150A, and Wi Mi5200
| SKU | WIMI6220T/R/R |
|---|---|
| Brand | Nimbus |
| Wireless Range | 4921.3' / 1500 m (Line-of-Sight) |
|---|---|
| # of Channels | 12 (40 MHz)24 (20 MHz) |
| Frequency Range | 5.15 to 5.25 GHz5.25 to 5.35 GHz5.47 to 5.72 GHz5.72 to 5.85 GHz |
| Latency | ≤ 80 ms |
| Wi-Fi | 5 GHz Wi-Fi 5 (802.11ac) |
| Video I/O | 1x BNC (3G-SDI / HD-SDI / SD-SDI) Input 1x HDMI Input |
|---|---|
| Audio I/O | 1x 1/8" / 3.5 mm TRS Stereo |
| Other I/O | 1x RJ45 10/100 Ethernet1x RJ45 RS-4221x Unspecified Interface |
| Embedded Audio | SDIHDMI |
| Video Format | SDI/BNC: 1080p at 23.98, 24, 25, 29.97, 30, 50, 59.94, 60 fps SDI/BNC: 1080 PsF at 23.98, 24, 25, 29.97, 30 fps SDI/BNC: 1080i at 50, 59.94, 60 fps SDI/BNC: 720p at 23.98, 24, 25, 29.97, 30, 50, 59.94, 60 fps SDI/BNC: 576i at 50 fps SDI/BNC: 480i at 59.94 fps HDMI: 1080p at 24, 30, 50, 59.94, 60 fps HDMI: 1080i/720p at 50, 59.94 fps HDMI: 576p/576i at 50 fps HDMI: 480p at 59.94, 60 fps HDMI: 480i at 59.94 fps |
|---|---|
| Audio Format | 16-Bit 48 k Hz LPCM Audio |
| Video Standard Compliance | SMPTE 259M/274M/292M/296M/425MITU -R BT.601 |
| Battery Support | 1x V-Mount |
|---|---|
| Power I/O | 1x LEMO 2-Pin (6.8 to 16 VDC) Input |
| Power Consumption | Device: (11 W) |
| Mounting | 1x 1/4"-20 Female |
|---|---|
| Dimensions | 5.7 x 3.6 x 1" / 14.4 x 9.1 x 2.6 cm |
| Package Weight | 4.57 lb |
|---|---|
| Box Dimensions (Lx WxH) | 11.8 x 11.7 x 5.5" |
