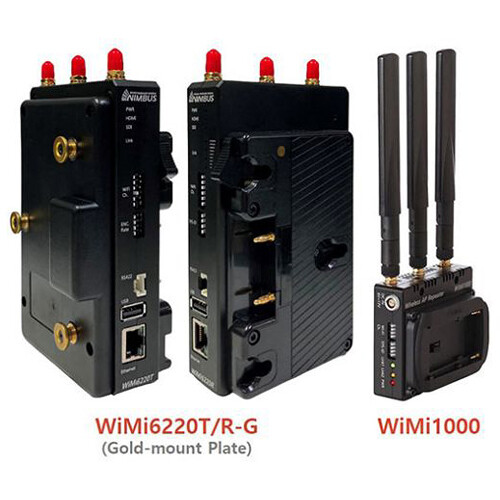

Nimbus Wi Mi6220 Wireless Transmission System with Wi Mi1000 Repeater Bundle (Gold Mount)
$3,060.00
In Stock
- 1 x 3G-SDI/HDMI Transmitter/Encoder
- 1 x 3G-SDI/HDMI Receiver/Decoder
- Wi Mi1000 Wireless AP Repeater
- 4921' Range via 5 GHz, Extends to 9000'
Tracked ShippingRates shown at checkout
60-Day ReturnsOn eligible items
Expert SupportReal people, real advice
Nimbus Wi Mi6220 Wireless Transmission System with Wi Mi1000 Repeater Bundle (Gold Mount)
The Nimbus Wi Mi6220 Wireless Transmission System with Wi Mi1000 Repeater Bundle (Gold Mount) is built to support demanding work, in the studio and on location.
Highlights
- 1 x 3G-SDI/HDMI Transmitter/Encoder
- 1 x 3G-SDI/HDMI Receiver/Decoder
- Wi Mi1000 Wireless AP Repeater
- 4921' Range via 5 GHz, Extends to 9000'
Every order from NIXTRONIC ships tracked worldwide and is covered by our 60-day return policy on eligible items.
In the Box

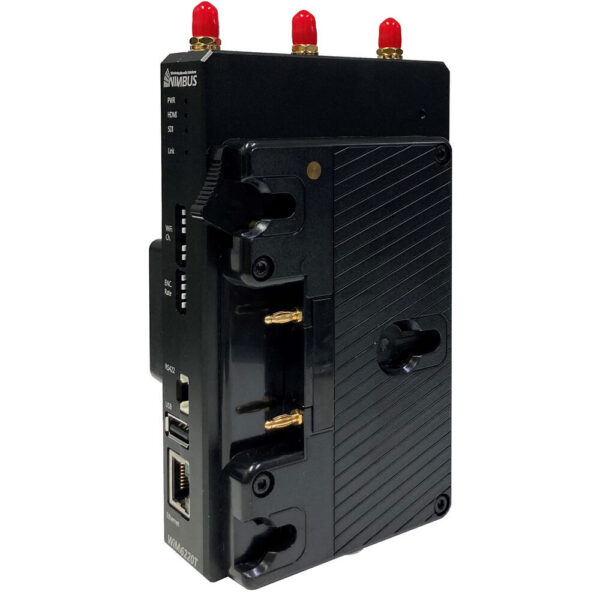

- Nimbus Wi Mi6220 Wireless 3G-SDI & HDMI H.264 Encoder/Transmitter (Gold Mount)
- 3 x Bar Antenna (6 d Bi)
- RJ45 Adapter for RS-422
- Gold Mount Battery Plate

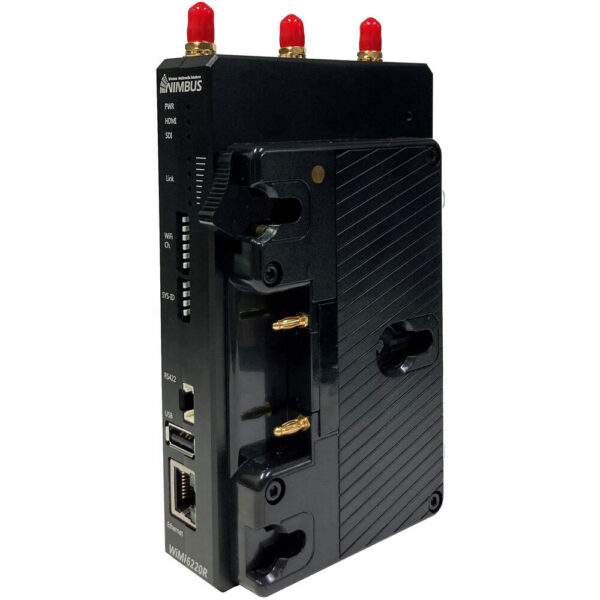

- Nimbus Wi Mi6220 Wireless 3G-SDI & HDMI H.264 Decoder/Receiver (Gold Mount)

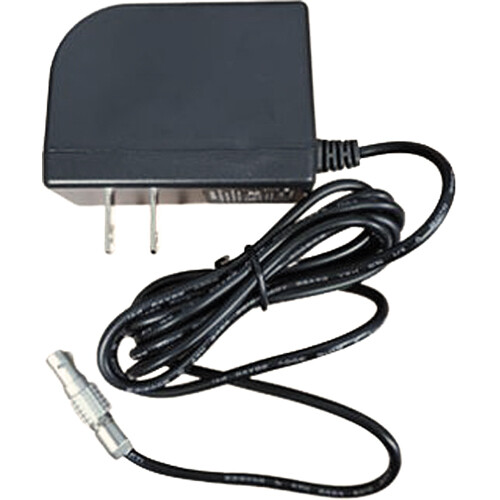

- Nimbus DCA12M Mini 12 VDC Adapter for Wi Mi6220, Wi Mi5150A, and Wi Mi5200

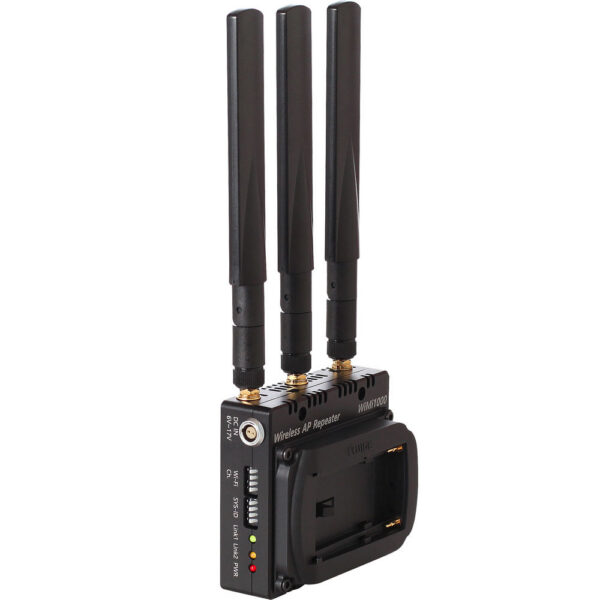

- Nimbus Wi Mi1000 Wireless AP Repeater for Wi Mi5150A, Wi Mi5200, Wi Mi5200A & Wi Mi6220 Wireless Systems

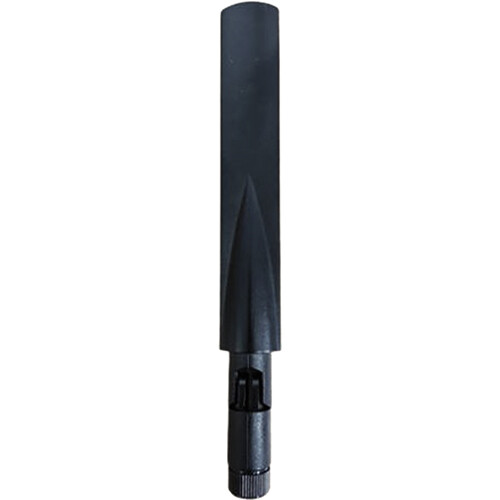

- 3 x 6 d Bi Bar Antenna
- L-Series Battery Plate
| SKU | WIMI6220T/R-G/1000 |
|---|---|
| Brand | Nimbus |
| Wireless Range | 4921.3' / 1500 m (Line-of-Sight) |
|---|---|
| # of Channels | 12 (40 MHz)24 (20 MHz) |
| Frequency Range | 5.15 to 5.25 GHz5.25 to 5.35 GHz5.47 to 5.72 GHz5.72 to 5.85 GHz |
| Latency | ≤ 80 ms |
| Wi-Fi | 5 GHz Wi-Fi 5 (802.11ac) |
| Video I/O | 1x BNC (3G-SDI / HD-SDI / SD-SDI) Input 1x HDMI Input |
|---|---|
| Audio I/O | 1x 1/8" / 3.5 mm TRS Stereo |
| Other I/O | 1x RJ45 10/100 Ethernet1x RJ45 RS-4221x Unspecified Interface |
| Embedded Audio | SDIHDMI |
| Video Format | SDI/BNC: 1080p at 23.98, 24, 25, 29.97, 30, 50, 59.94, 60 fps SDI/BNC: 1080 PsF at 23.98, 24, 25, 29.97, 30 fps SDI/BNC: 1080i at 50, 59.94, 60 fps SDI/BNC: 720p at 23.98, 24, 25, 29.97, 30, 50, 59.94, 60 fps SDI/BNC: 576i at 50 fps SDI/BNC: 480i at 59.94 fps HDMI: 1080p at 24, 30, 50, 59.94, 60 fps HDMI: 1080i/720p at 50, 59.94 fps HDMI: 576p/576i at 50 fps HDMI: 480p at 59.94, 60 fps HDMI: 480i at 59.94 fps |
|---|---|
| Audio Format | 16-Bit 48 k Hz LPCM Audio |
| Video Standard Compliance | SMPTE 259M/274M/292M/296M/425MITU -R BT.601 |
| Battery Support | 1x Gold Mount |
|---|---|
| Power I/O | 1x LEMO 2-Pin (6.8 to 16 VDC) Input |
| Power Consumption | Device: (11 W) |
| Mounting | 1x 1/4"-20 Female |
|---|---|
| Dimensions | 5.7 x 3.6 x 1" / 14.4 x 9.1 x 2.6 cm |
