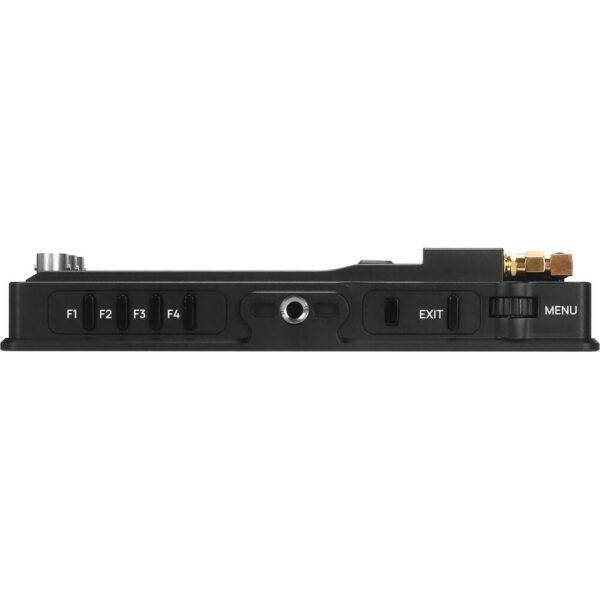

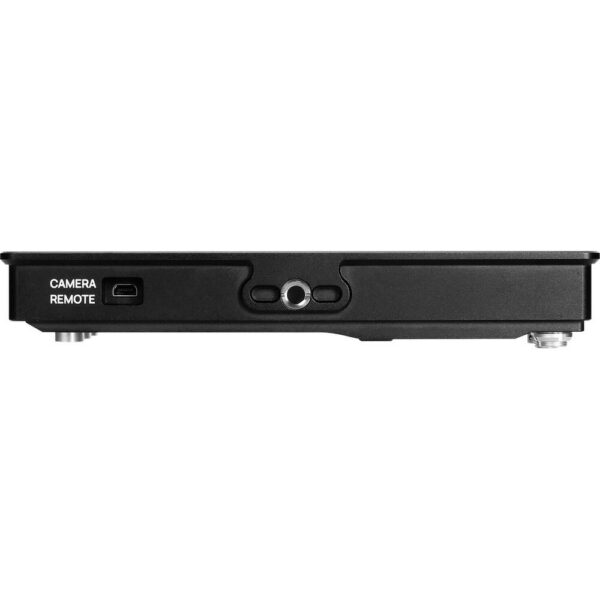

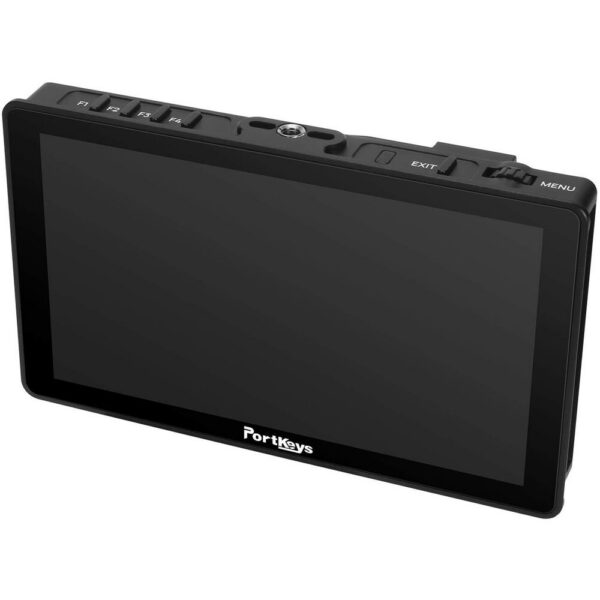

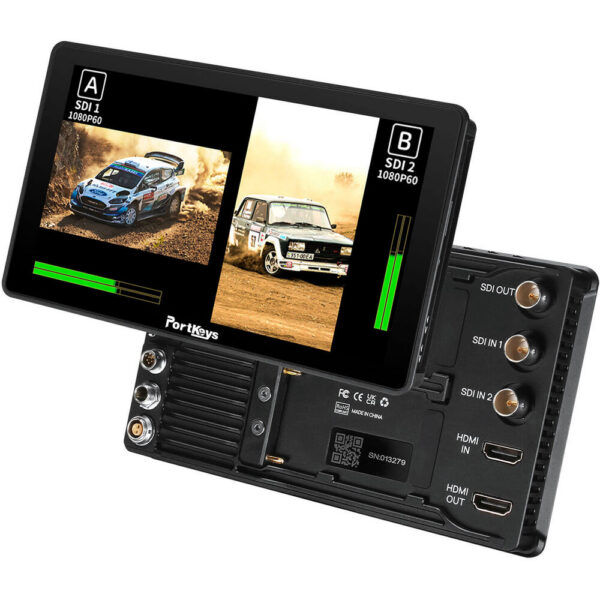

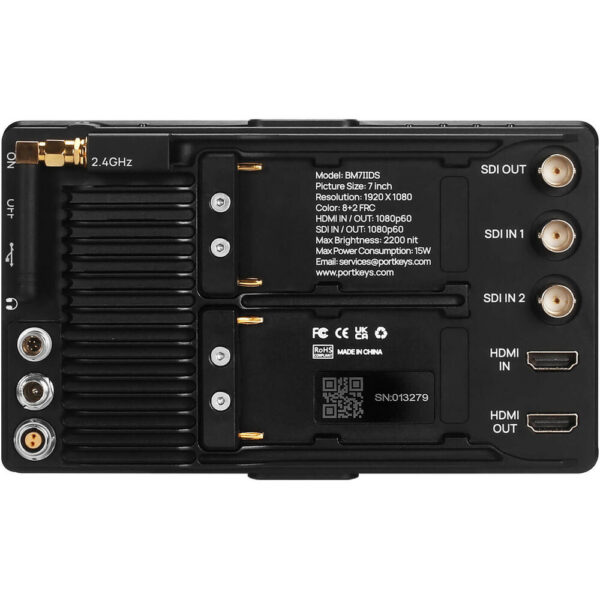

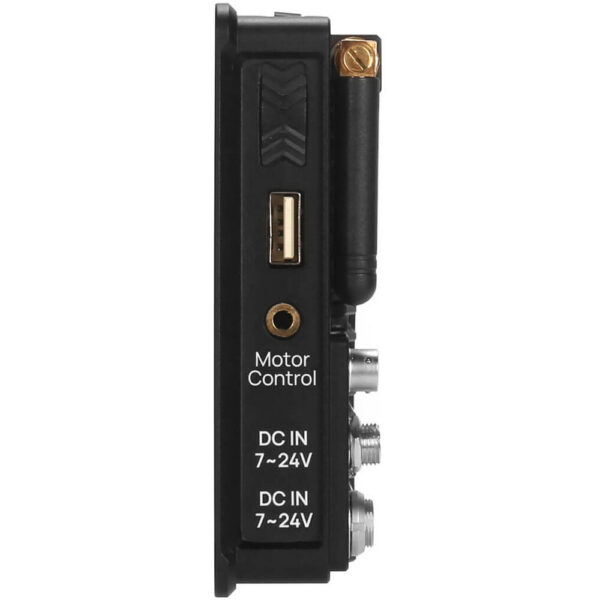

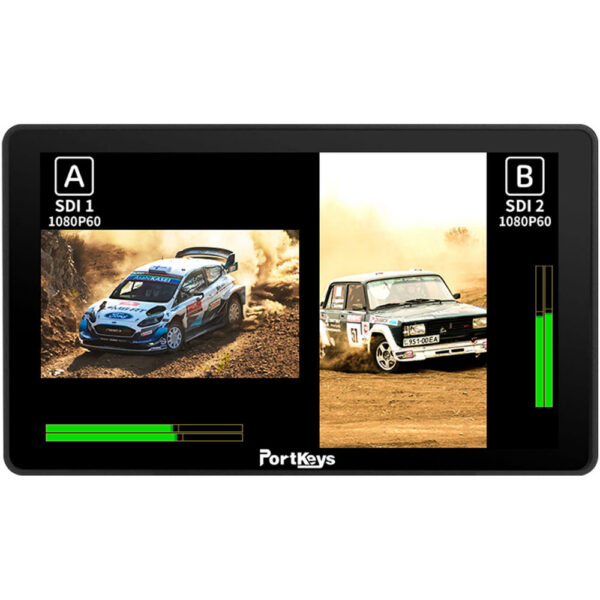

PORTKEYS BM7 II DS U 7" High-Bright Monitor with Wireless Camera Control and Sun Hood
$590.00
In Stock
- 7" 1920 x 1080 Touchscreen Monitor
- Wi-Fi & Wired Camera Control Options
- 2200 cd/m² Brightness / 1000:1 Contrast
- Cinenorm OS
Tracked ShippingRates shown at checkout
60-Day ReturnsOn eligible items
Expert SupportReal people, real advice
PORTKEYS BM7 II DS U 7" High-Bright Monitor with Wireless Camera Control and Sun Hood
The PORTKEYS BM7 II DS U 7" High-Bright Monitor with Wireless Camera Control and Sun Hood is built to support demanding work, in the studio and on location. It offers a 7.0" display at 1920 x 1080.
Highlights
- 7" 1920 x 1080 Touchscreen Monitor
- Wi-Fi & Wired Camera Control Options
- 2200 cd/m² Brightness / 1000:1 Contrast
- Cinenorm OS
Ordered from NIXTRONIC, it ships with full tracking worldwide and is backed by our 60-day returns on eligible items.
In the Box
- PORTKEYS BM7 II DS U 7" High-Bright Monitor with Wireless Camera Control and Sun Hood
- USB Drive
- DC Barrel to D-Tap Power Cable
- Safety Case
- Wrench
- Sun Hood
- 2 x Drop-Proof Rubber Case
| SKU | BM7 II-DS U |
|---|---|
| Brand | PORTKEYS |
| Panel Type | LCD |
|---|---|
| Display Size | 7.0" / 17.8 cm |
| Native Resolution | 1920 x 1080 |
| Aspect Ratio | 16:9 |
| Viewing Angle | Horizontal: 170° (85/85) Vertical: 170° (85/85) |
| Touchscreen | Yes |
| Maximum Brightness | 2200 nits / cd/m2 |
| Contrast Ratio | 1000:1 |
| Color Support | 1.07 Billion Colors (8-Bit+FRC) |
| HDR Support | Yes: Hybrid Log Gamma |
| Color Gamut | 85% DCI-P3 |
| LUT Support | Yes |
| Image Controls | Anamorphic De-Squeeze, Check Field, Color Temperature Selection, False Color, Focus Peaking, Histogram, Image Flip, RGB Parade, Vectorscope, Waveform, Zebra |
| Video I/O | 2x BNC (3G-SDI) Input 1x HDMI Input 1x BNC (3G-SDI) Output 1x HDMI Output |
|---|---|
| Embedded Audio | HDMI: 2-ChannelSDI: 8-Channel |
| Audio I/O | 1x 1/8" / 3.5 mm Headphone Output |
| Built-In Speaker | No |
| Power I/O | 1x LEMO 2-Pin Input 1x Barrel 2.1 mm Input |
| Other I/O | 1x Mini-USB (Camera Control)1x Unspecified 5-Pin (Motor Control)1x USB-A (Firmware/LUT Upload) |
| Media/Memory Card Slot | No |
| Wireless | Wi-Fi / Bluetooth |
|---|---|
| Mobile App Compatible | No |
| Video Format | SDI (4:4:4/4:2:2 YUV)1080p: 30/29.97/25/24/23.98 1080 PsF: 30/29.97/25/24/23.98 1080i: 60/59.94/50 720p: 60/59.94/50 SDI1080p: 60/59.94/50 HDMI1080p: 60/59.94/50/30/29.97/25/24/23.98 1080 PsF: 30/29.97/25/24/23.98 1080i: 60/59.94/50 720p: 60/59.94/50 576p: 50 576i: 50 480p: 60/59.94/50 480i: 60/59.94 |
|---|---|
| Video Signal Conversion | HDMI to SDI |
| Input Power | 7 to 24 VDC |
|---|---|
| Battery | 2x L-Series Mount on Fixed Plate |
| Power Consumption | 15 W (Maximum) |
| Tripod/Accessory Mounting | Top/Bottom1x 1/4"-20 Female |
|---|
| Environmental Resistance | No |
|---|---|
| Operating Conditions | 32 to 104°F / 0 to 40°C |
| Material of Construction | Aluminum |
| Dimensions | 7.1 x 4.2 x 1.2" / 179.3 x 106.8 x 31 mm |
| Weight | 1.01 lb / 460.00 g |
| Package Weight | 2.375 lb |
|---|---|
| Box Dimensions (Lx WxH) | 9.8 x 6.8 x 2.6" |
