SmallHD CINE 5 Touchscreen On-Camera Monitor

Name: SmallHD CINE 5 Touchscreen On-Camera Monitor
Brand: SmallHD
SKU: 16-0526
Price: 791.00 USD
Availability: InStock

(0)

Be the first to review SKU: 16-0526

$791.00

In Stock

5" 1920 x 1080 Touchscreen Display
2000 cd/m², 10-Bit LCD Panel, DCI P3
2-Pin Locking Power Input
5-Pin Locking USB for RED Camera Control

Tracked ShippingRates shown at checkout
60-Day ReturnsOn eligible items
Expert SupportReal people, real advice

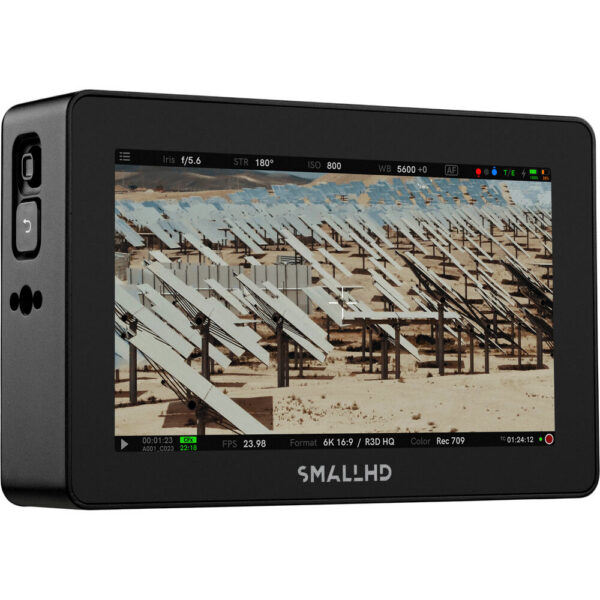

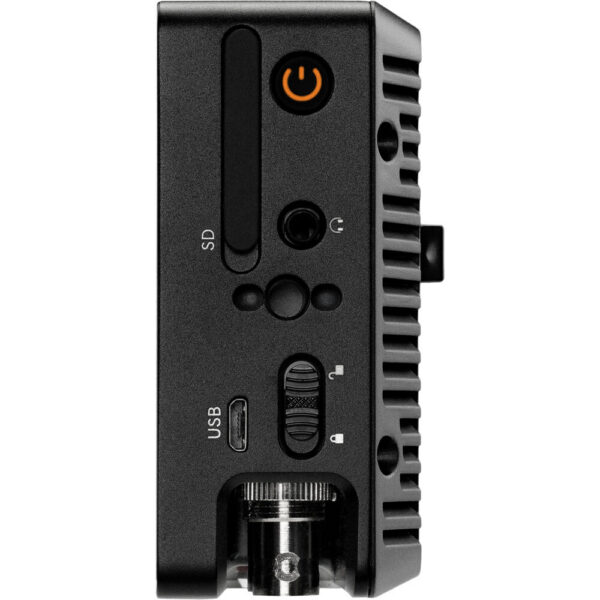

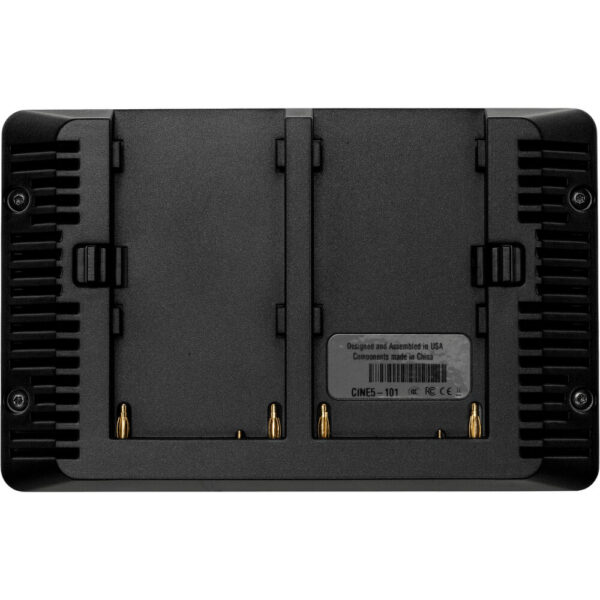

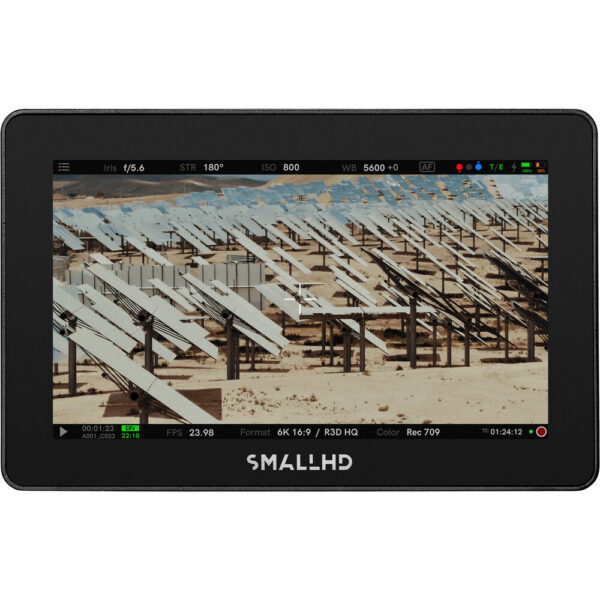

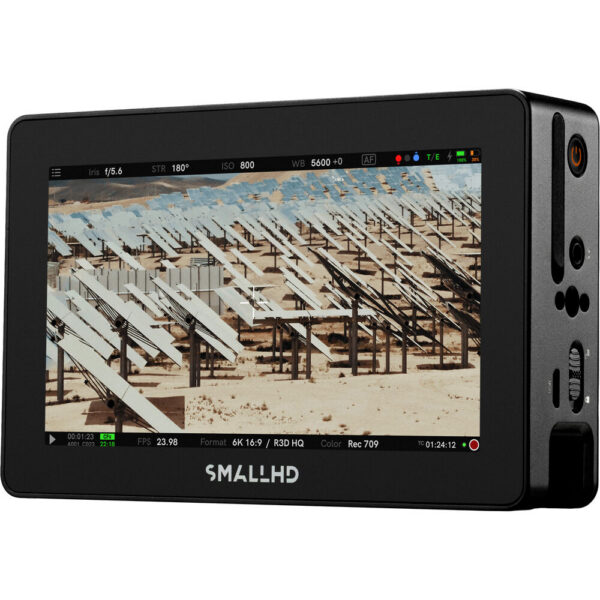

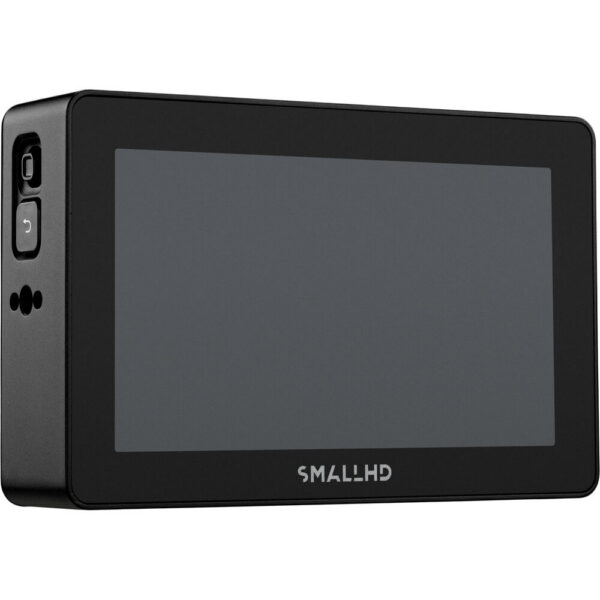

SmallHD CINE 5 Touchscreen On-Camera Monitor

Designed for people who rely on their gear, the SmallHD CINE 5 Touchscreen On-Camera Monitor delivers solid, consistent performance. It offers a 5.0" display at 1920 x 1080.

Highlights

5" 1920 x 1080 Touchscreen Display
2000 cd/m², 10-Bit LCD Panel, DCI P3
2-Pin Locking Power Input
5-Pin Locking USB for RED Camera Control

Every order from NIXTRONIC ships tracked worldwide and is covered by our 60-day return policy on eligible items.

In the Box

SmallHD CINE 5 Touchscreen On-Camera Monitor

SKU	16-0526
Brand	SmallHD

Display
Panel Type	LCD
Display Size	5.0" / 12.7 cm
Native Resolution	1920 x 1080
Aspect Ratio	16:9
Touchscreen	Yes
Maximum Brightness	2000 nits / cd/m2
Contrast Ratio	1000:1
Color Support	1.07 Billion Colors (10-Bit)
HDR Support	No
Color Gamut	100% DCI-P3
Image Controls	Anamorphic De-Squeeze, False Color, Focus Peaking, Histogram, Pixel-to-Pixel Zoom, RGB Parade, Vectorscope, Waveform, Zebra

Inputs/Outputs
Video I/O	1x HDMI 2.0 Input 1x HDMI 2.0 Loop Output 1x BNC (3G-SDI) Input 1x BNC (3G-SDI) Loop Output
Embedded Audio	HDMI: 8-ChannelSDI: 8-Channel
Audio I/O	1x 1/8" / 3.5 mm Headphone Output
Built-In Speaker	No
Power I/O	1x LEMO 2-Pin (34 VDC) Input
Media/Memory Card Slot	Single Slot: SD/SDHC/SDXC [LUT/Firmware Update Only]

Wireless
Wireless	No
Mobile App Compatible	No

Format Support
Video Format	HDMI (8/10/12/16-Bit 4:4:4/4:2:2 YCC)1080p: 60/59.94/50/30/29.97/25/24/23.98 1080i: 120/119.88/100/60/59.94/50 720p: 120/119.88/100/60/59.94/50/30/29.97/25/24/23.98 576p: 200/100/50 480p: 240/239.76/120/119.88/100/60/59.94 480i: 60/59.94 576i: 50 SDI (10-Bit 4:2:2 YCC)1080p: 60/59.94/50/30/29.97/25/24/23.98 1080 PsF: 30/29.97/25/24/23.98 1080i: 120/119.88/100/60/59.94/50 720p: 60/59.94/50/30/29.97/25/24/23.98 576i: 50 480i: 59.94
Video Signal Conversion	SDI to HDMIUHD 4K: 30/29.97/25/24/23.98 1080p: 119.88/100/60/59.94/50/30/29.97/25/24/23.98 1080i: 120/119.88/100/60/59.94/50 720p: 240/239.76 HDMI to SDI1080p: 60/59.94/50/30/29.97/25/24/23.98 1080i: 120/119.88/100 720p: 60/59.94/50/30/29.97/25/24/23.98 480i: 59.94 576i: 50
