SmallHD Cine 7 Monitor with Bolt 6 Monitor Module 750 RX Kit (V-Mount)
$2,351.00
In Stock
- Cine 7 On-Camera Monitor
- Teradek Bolt 6 Monitor Module 750 RX
- Monitor Handles and Neck Strap
- 7" 1920 x 1200 Touchscreen Display
Tracked ShippingRates shown at checkout
60-Day ReturnsOn eligible items
Expert SupportReal people, real advice
SmallHD Cine 7 Monitor with Bolt 6 Monitor Module 750 RX Kit (V-Mount)
The SmallHD Cine 7 Monitor with Bolt 6 Monitor Module 750 RX Kit (V-Mount) is a dependable addition to a serious kit. It offers a 7.0" display at 1920 x 1200.
Highlights
- Cine 7 On-Camera Monitor
- Teradek Bolt 6 Monitor Module 750 RX
- Monitor Handles and Neck Strap
- 7" 1920 x 1200 Touchscreen Display
Every order from NIXTRONIC ships tracked worldwide and is covered by our 60-day return policy on eligible items.

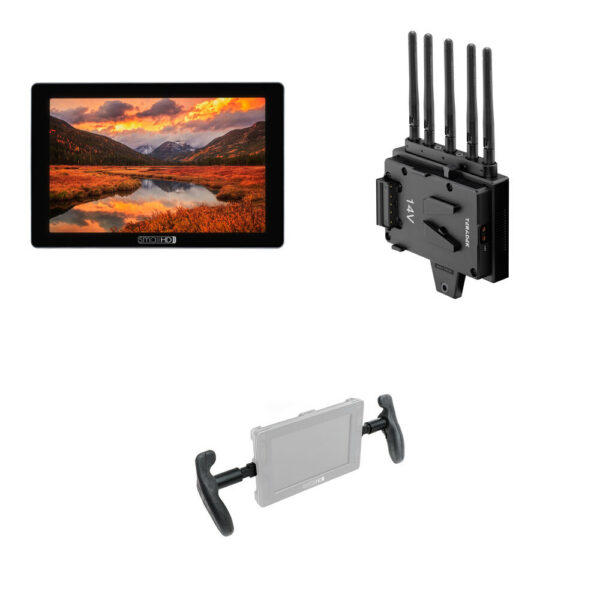

In the Box

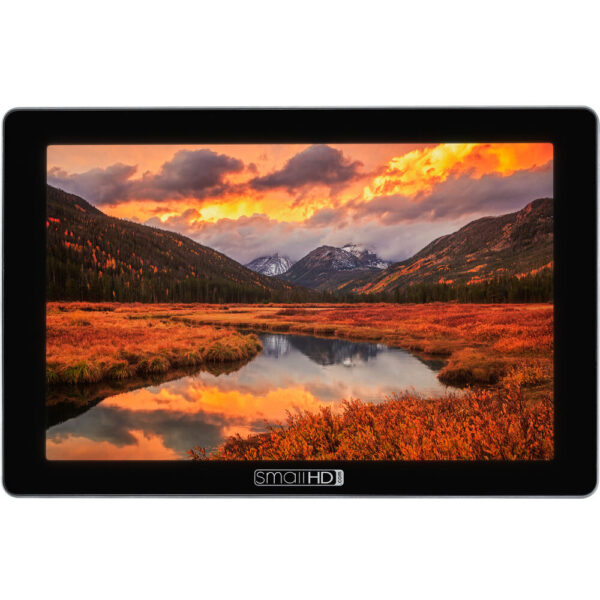

- SmallHD Cine 7 Touchscreen On-Camera Monitor (L-Series)
- SmallHD Dual L-Series Battery Plate for 702 Touch & Cine 7 Monitors

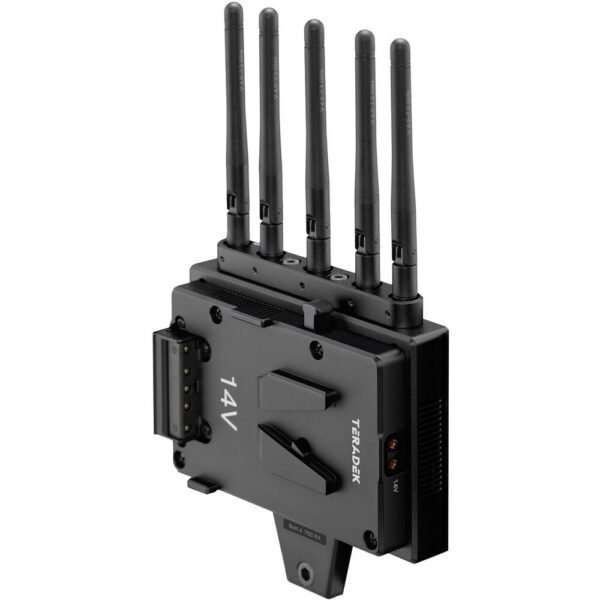

- Teradek Bolt 6 RX 750 Monitor Module for Smart 7 Series (V-Mount)
- V-Mount Battery Plate
- 5 x Antenna
- HDMI Adapter

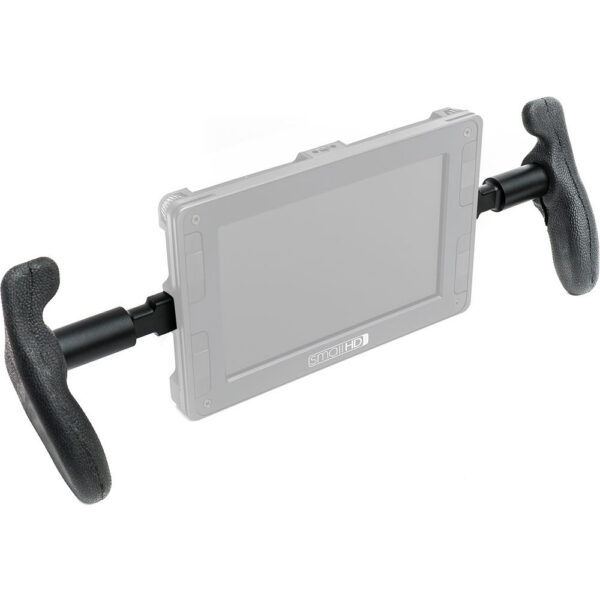

- SmallHD Monitor Handles and Neck Strap
- 2 x Mounting Screw
| SKU | SMMONCINE7X |
|---|---|
| Brand | SmallHD |
| Panel Type | IPS-Type LCD |
|---|---|
| Display Size | 7.0" / 17.8 cm |
| Native Resolution | 1920 x 1200 |
| Aspect Ratio | 16:10 |
| Touchscreen | Yes |
| Maximum Brightness | 1800 nits / cd/m2 |
| Contrast Ratio | 1000:1 |
| Color Support | 1.07 Billion Colors (10-Bit) |
| HDR Support | No |
| Color Gamut | 100% DCI-P3 |
| Image Controls | Anamorphic De-Squeeze, False Color, Focus Peaking, Histogram, Pixel-to-Pixel Zoom, RGB Parade, Vectorscope, Waveform, Zebra |
| Video I/O | 1x HDMI Input 1x HDMI Output 1x BNC (3G-SDI) Input 1x BNC (3G-SDI) Input/Output |
|---|---|
| Embedded Audio | HDMI: 8-ChannelSDI: 8-Channel |
| Audio I/O | 1x 1/8" / 3.5 mm Headphone Output |
| Built-In Speaker | No |
| Power I/O | 1x LEMO 2-Pin (34 VDC) Input |
| Other I/O | 1x Micro-USB 2.0 |
| Media/Memory Card Slot | Single Slot: SD/SDHC/SDXC [LUT Upload Only] |
| Wireless | No |
|---|---|
| Mobile App Compatible | No |
| Video Format | HDMI (8/10/12/16-Bit 4:4:4/4:2:2 YCC)1080p: 60/59.94/50/30/29.97/25/24/23.98 1080i: 120/119.88/100/60/59.94/50 720p: 120/119.88/100/60/59.94/50/30/29.97/25/24/23.98 576p: 200/100/50 480p: 240/239.76/120/119.88/100/60/59.94 480i: 60/59.94 576i: 50 SDI (10-Bit 4:2:2 YCC)1080p: 60/59.94/50/30/29.97/25/24/23.98 1080 PsF: 30/29.97/25/24/23.98 1080i: 120/119.88/100/60/59.94/50 720p: 60/59.94/50/30/29.97/25/24/23.98 576i: 50 480i: 59.94 |
|---|---|
| Video Signal Conversion | SDI to HDMIUHD 4K: 30/29.97/25/24/23.98 1080p: 119.88/100/60/59.94/50/30/29.97/25/24/23.98 1080i: 120/119.88/100/60/59.94/50 720p: 240/239.76 HDMI to SDI1080p: 60/59.94/50/30/29.97/25/24/23.98 1080i: 120/119.88/100 720p: 60/59.94/50/30/29.97/25/24/23.98 480i: 59.94 576i: 50 |
| Input Power | 6 to 16 VDC at 2.5 A |
|---|---|
| Battery | 2x L-Series Mount on Fixed Plate |
| Tripod/Accessory Mounting | Top/Left/Right/Back1x 1/4"-20 Female |
|---|
| Environmental Resistance | No |
|---|---|
| Operating Conditions | 30 to 99°F / -1 to 37°C |
| Storage Conditions | 1 to 118°F / -17 to 48°C |
| Dimensions | 7.1 x 4.7 x 1.3" / 18 x 11.9 x 3.3 cm |
| Weight | 20.00 oz / 567 g |
| Package Weight | 1.93 lb |
|---|---|
| Box Dimensions (Lx WxH) | 9.5 x 7 x 2" |
