SmallHD Cine 7 Touchscreen On-Camera Monitor with ARRI Control Kit (L-Series)

Name: SmallHD Cine 7 Touchscreen On-Camera Monitor with ARRI Control Kit (L-Series)
Brand: SmallHD
SKU: 16-0710-A
Price: 1187.00 USD
Availability: InStock

(0)

Be the first to review SKU: 16-0710-A

$1,187.00

In Stock

7" 1920 x 1200 Touchscreen Display
ARRI Camera Control Kit, Control Cable
1800 cd/m², 10-Bit IPS LCD Panel
8GB SD Card, Sun Hood, Power Cable

Tracked ShippingRates shown at checkout
60-Day ReturnsOn eligible items
Expert SupportReal people, real advice

SmallHD Cine 7 Touchscreen On-Camera Monitor with ARRI Control Kit (L-Series)

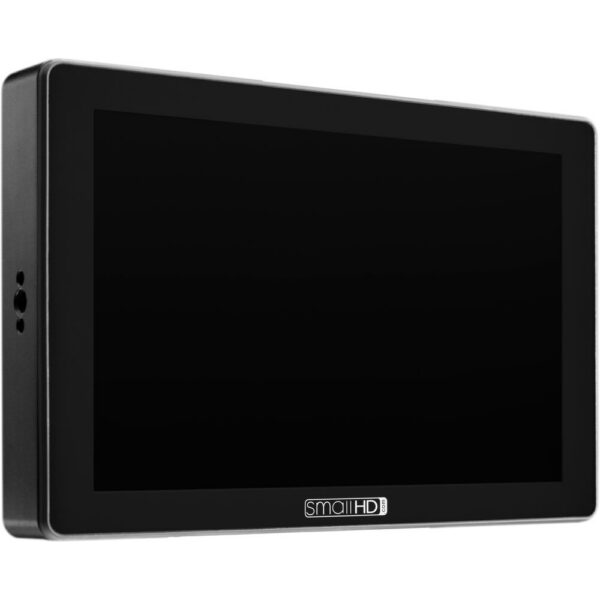

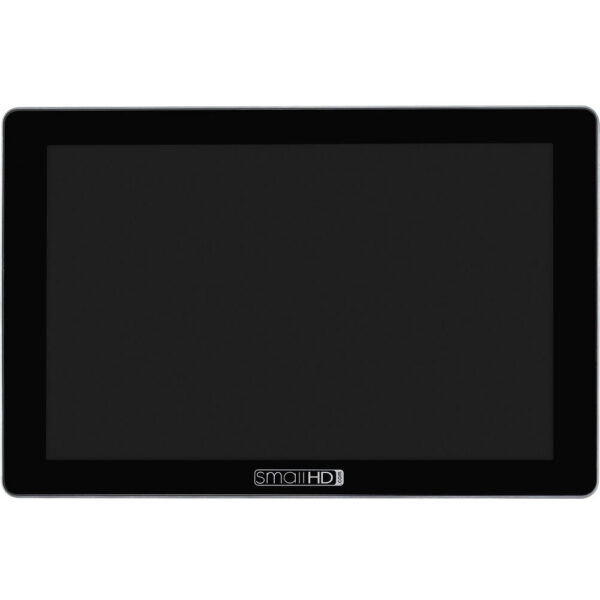

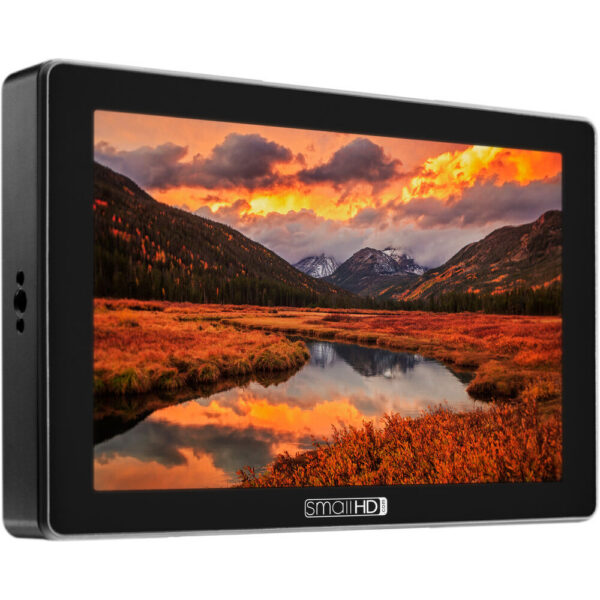

The SmallHD Cine 7 Touchscreen On-Camera Monitor with ARRI Control Kit (L-Series) is built to support demanding work, in the studio and on location. It offers a 7.0" display at 1920 x 1200.

Highlights

7" 1920 x 1200 Touchscreen Display
ARRI Camera Control Kit, Control Cable
1800 cd/m², 10-Bit IPS LCD Panel
8GB SD Card, Sun Hood, Power Cable

Every order from NIXTRONIC ships tracked worldwide and is covered by our 60-day return policy on eligible items.

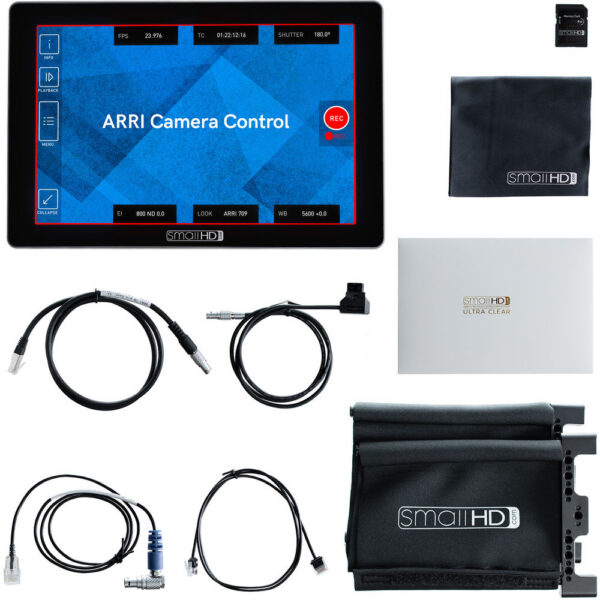

In the Box

SmallHD Cine 7 Touchscreen On-Camera Monitor with ARRI Control Kit (L-Series)
SmallHD 2-Pin LEMO to D-Tap Power Cable (36")
SmallHD Dual L-Series Battery Plate for 702 Touch & Cine 7 Monitors
SmallHD Sun Hood for 702 Touch and Cine 7 Monitors
SmallHD Cine 7 Monitor Camera Control Kit for ARRI ALEXA Mini/Mini LF/AMIRA Cameras
Ultra Clear Screen Protector
8GB SD Card
SmallHD Microfiber Cleaning Cloth

SKU	16-0710-A
Brand	SmallHD

Display
Panel Type	IPS-Type LCD
Display Size	7.0" / 17.8 cm
Native Resolution	1920 x 1200
Aspect Ratio	16:10
Touchscreen	Yes
Maximum Brightness	1800 nits / cd/m2
Contrast Ratio	1000:1
Color Support	1.07 Billion Colors (10-Bit)
HDR Support	Yes
Color Gamut	100% DCI-P3
Image Controls	Anamorphic De-Squeeze, False Color, Focus Peaking, Histogram, Pixel-to-Pixel Zoom, RGB Parade, Vectorscope, Waveform, Zebra

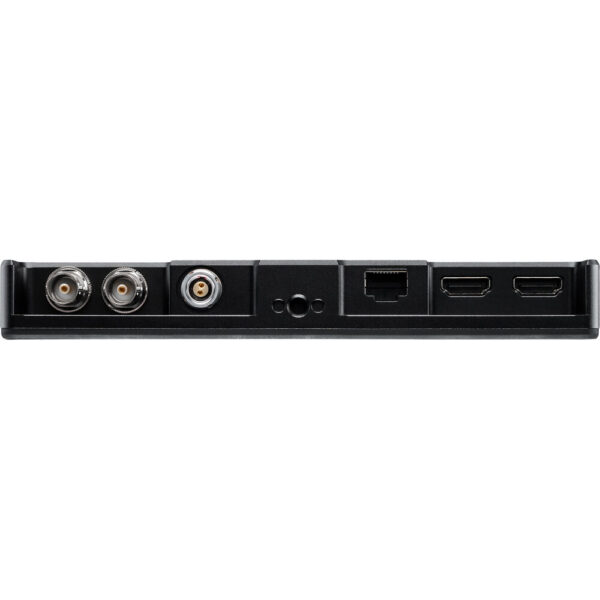

Inputs/Outputs
Video I/O	1x Micro-HDMI Input 1x Micro-HDMI Output 1x BNC (3G-SDI) Input 1x BNC (3G-SDI) Input/Output
Embedded Audio	HDMI: 8-ChannelSDI: 8-Channel
Audio I/O	1x 1/8" / 3.5 mm Headphone Output
Built-In Speaker	No
Power I/O	1x LEMO 2-Pin (34 VDC) Input
Other I/O	1x Micro-USB 2.0
Media/Memory Card Slot	No

Wireless
Wireless	Bluetooth
Mobile App Compatible	No

Format Support
Video Format	HDMI (8/10/12/16-Bit 4:4:4/4:2:2 YCC)1080p: 60/59.94/50/30/29.97/25/24/23.98 1080i: 120/119.88/100/60/59.94/50 720p: 120/119.88/100/60/59.94/50/30/29.97/25/24/23.98 576p: 200/100/50 480p: 240/239.76/120/119.88/100/60/59.94 480i 576i SDI (10-Bit 4:2:2 YCC)1080p: 60/59.94/50/30/29.97/25/24/23.98 1080 PsF: 30/29.97/25/24/23.98 1080i: 120/119.88/100/60/59.94/50 720p: 60/59.94/50/30/29.97/25/24/23.98 576i: 50 480i: 59.94
Video Signal Conversion	SDI to HDMIUHD 4K: 30/29.97/25/24/23.98 1080p: 119.88/100/60/59.94/50/30/29.97/25/24/23.98 1080i: 120/119.88/100/60/59.94/50 720p: 240/239.76 HDMI to SDI1080p: 60/59.94/50/30/29.97/25/24/23.98 1080i: 120/119.88/100 720p: 60/59.94/50/30/29.97/25/24/23.98 480i: 59.94 576i: 50

Power
Input Power	6 to 16 VDC at 2.5 A

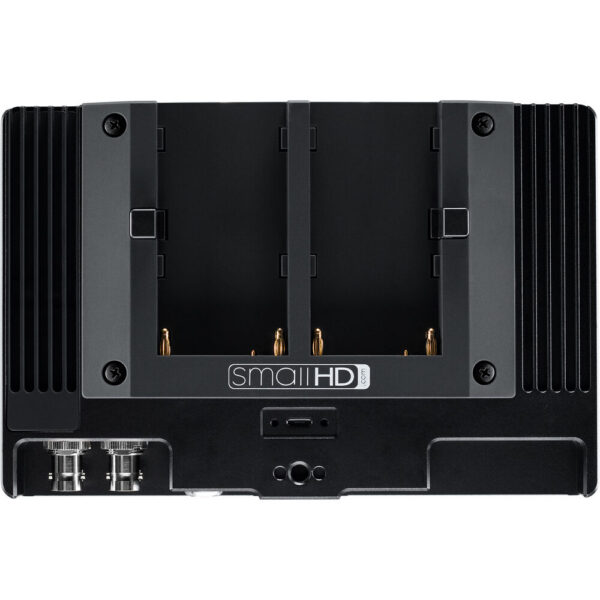

Battery	1x L-Series Mount on Fixed Plate

Mounting
Tripod/Accessory Mounting	4x 1/4"-20 Female

General
Operating Conditions	30 to 99°F / -1 to 37°C
Storage Conditions	1 to 118°F / -17 to 48°C
Dimensions	7.1 x 4.7 x 1.3" / 18 x 11.9 x 3.3 cm
Weight	20 oz / 567.00 g
