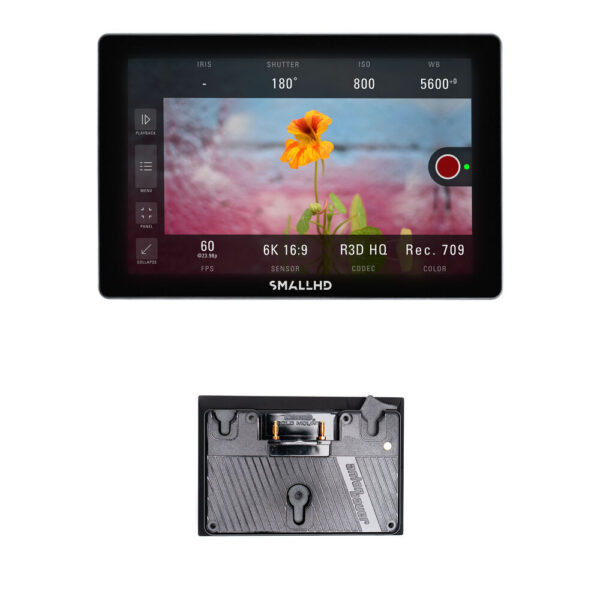

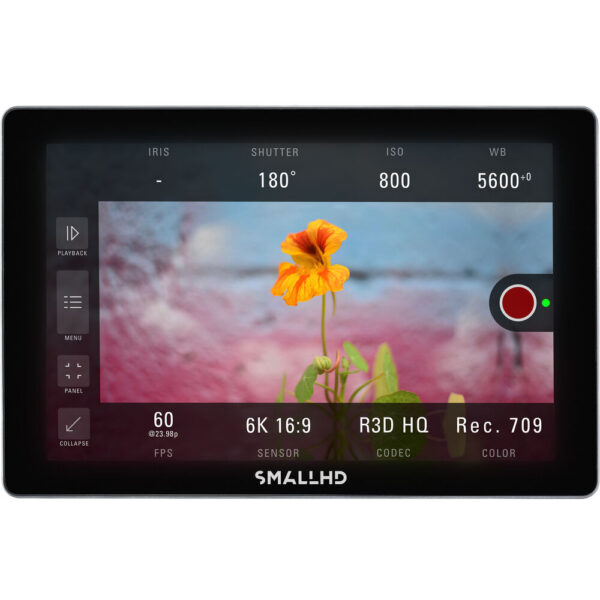

SmallHD INDIE 7 Touchscreen Monitor with Pro Battery Plate Kit (Gold Mount)
$758.00
In Stock
- 7" 1920 x 1200 Touchscreen Monitor

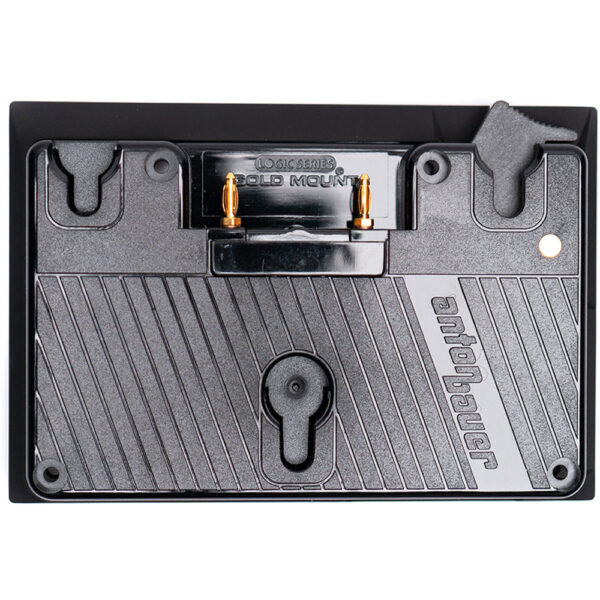

- Gold Mount Pro Battery Plate
- HDMI and 3G-SDI Inputs/Outputs
- 1000 cd/m², 10-Bit, IPS LCD Panel
Tracked ShippingRates shown at checkout
60-Day ReturnsOn eligible items
Expert SupportReal people, real advice
SmallHD INDIE 7 Touchscreen Monitor with Pro Battery Plate Kit (Gold Mount)
The SmallHD INDIE 7 Touchscreen Monitor with Pro Battery Plate Kit (Gold Mount) is built to support demanding work, in the studio and on location. It offers a 7.02" display at 1920 x 1200.
Highlights
- 7" 1920 x 1200 Touchscreen Monitor
- Gold Mount Pro Battery Plate
- HDMI and 3G-SDI Inputs/Outputs
- 1000 cd/m², 10-Bit, IPS LCD Panel
Every order from NIXTRONIC ships tracked worldwide and is covered by our 60-day return policy on eligible items.
In the Box
- SmallHD INDIE 7 Touchscreen On-Camera Monitor
- SmallHD Battery Plate for Smart 7-Series Monitors (Gold Mount)
- 4 x Mounting Screws
| SKU | SMMONINDIGMK |
|---|---|
| Brand | SmallHD |
| Panel Type | IPS-Type LCD |
|---|---|
| Display Size | 7.02" / 17.83 cm |
| Native Resolution | 1920 x 1200 |
| Aspect Ratio | 16:9 |
| Viewing Angle | Horizontal: 160° |
| Touchscreen | Yes |
| Maximum Brightness | 1000 nits / cd/m2 |
| Contrast Ratio | 1000:1 |
| Color Support | 1.07 Billion Colors (10-Bit) |
| HDR Support | No |
| Color Gamut | 100% Rec. 709 |
| LUT Support | Yes |
| Image Controls | Anamorphic De-Squeeze, False Color, Focus Assist, Focus Peaking, Histogram, Image Flip, Image Rotate, Pixel Zoom, Pixel-to-Pixel Zoom, RGB Parade, Scaling, Vectorscope, Waveform, Zebra |
| Video I/O | 1x HDMI Input 1x HDMI Output 1x BNC (3G-SDI) Input 1x BNC (3G-SDI) Output |
|---|---|
| Embedded Audio | HDMISDI |
| Audio I/O | 1x 1/8" / 3.5 mm Headphone Output |
| Built-In Speaker | No |
| Power I/O | 1x Barrel (10 VDC) Input |
| Other I/O | 1x Micro-USB 2.0 Input |
| Media/Memory Card Slot | Single Slot: SD/SDHC/SDXC [LUT Upload Only] |
| Wireless | No |
|---|---|
| Mobile App Compatible | No |
| Video Format | HDMI (10-Bit 4:4:4 RGB, YCC)UHD 4K: 30/29.97/24/23.98 1080p: 60/59.94/50/30/29.97/25/24/23.98 1080i: 120/119.88/100/60/59.94/50 720p: 120/119.88/100/60/59.94/50/30/29.97/25/24/23.98 576p: 200/100/50 480p: 240/239.76/120/119.88/100/60/59.94 480i: 60/59.94 576i: 50 SDI (10-Bit 4:2:2 YCC)1080p: 60/59.94/50/30/29.97/25/24/23.98 1080i: 60/59.94/50 720p: 60/59.94/50 576p: 50/25 480p: 60 576i: 50 480i: 59.94 |
|---|---|
| Video Signal Conversion | HDMI to SDI SDI to HDMI |
| Input Power | 10 to 34 VDC |
|---|---|
| Battery | 2x L-Series Mount on Included, Interchangeable Plate |
| Power Consumption | 17.3 W |
| Tripod/Accessory Mounting | Bottom/Left/Right/Back1x 1/4"-20 Female |
|---|
| Operating Conditions | 30 to 100°F / -1 to 38°C |
|---|---|
| Storage Conditions | 1 to 118°F / -17 to 48°C |
| Material of Construction | Aluminum |
| Dimensions | 7.09 x 4.67 x 1.32" / 18.01 x 11.86 x 3.35 cm |
| Weight | 26 oz / 737.00 g |
| Package Weight | 1.885 lb |
|---|---|
| Box Dimensions (Lx WxH) | 10.3 x 7.4 x 2" |
