SmallHD ULTRA 5 On-Camera Monitor and Battery Plate Kit (V-Mount)
$1,273.00
In Stock
- 5" LCD Touchscreen Monitor
- 3000 cd/m² Brightness
- 1920 x 1080 Resolution
- V-Mount Micro Battery Plate
Tracked ShippingRates shown at checkout
60-Day ReturnsOn eligible items
Expert SupportReal people, real advice

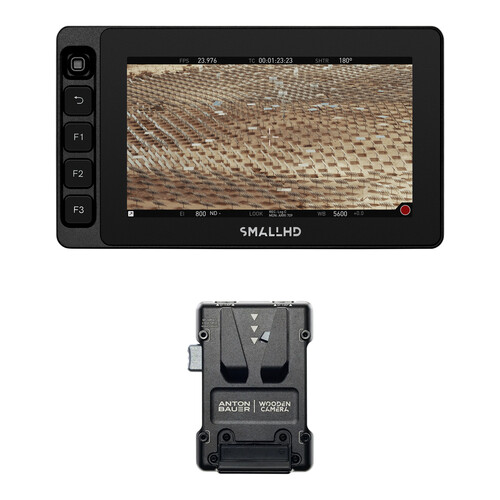

SmallHD ULTRA 5 On-Camera Monitor and Battery Plate Kit (V-Mount)
The SmallHD ULTRA 5 On-Camera Monitor and Battery Plate Kit (V-Mount) is a dependable addition to a serious kit. It offers a 5" display at 1920 x 1080.
Highlights
- 5" LCD Touchscreen Monitor
- 3000 cd/m² Brightness
- 1920 x 1080 Resolution
- V-Mount Micro Battery Plate
Every order from NIXTRONIC ships tracked worldwide and is covered by our 60-day return policy on eligible items.
In the Box

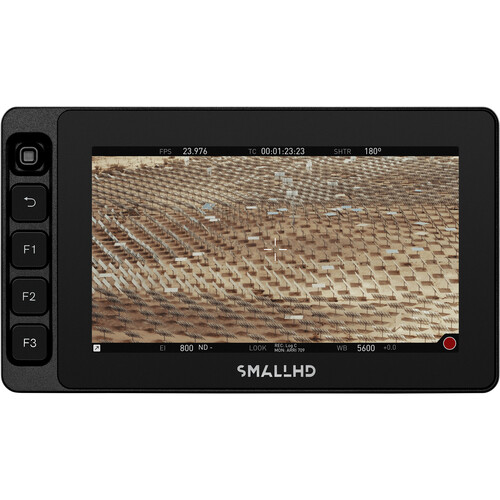

- SmallHD ULTRA 5 Bright Touchscreen Monitor
- SmallHD D-Tap to 2-Pin Power Cable (36")

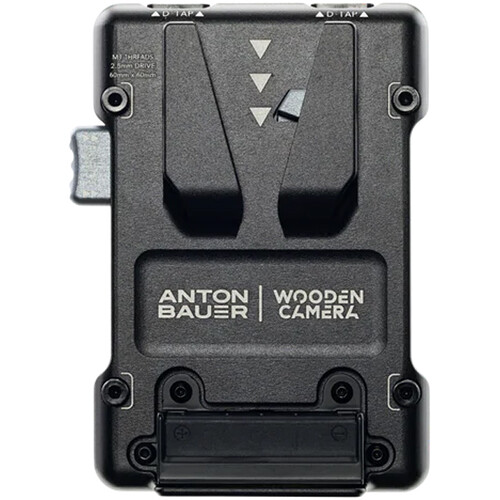

- SmallHD Micro Battery Plate for Ultra Series Monitor (V-Mount)
- Mounting Screw Set
| SKU | SM160527VMK |
|---|---|
| Brand | SmallHD |
| Panel Type | LCD |
|---|---|
| Display Size | 5" / 12.7 cm |
| Native Resolution | 1920 x 1080 |
| Aspect Ratio | 16:9 |
| Touchscreen | Yes |
| Maximum Brightness | 3000 nits / cd/m2 |
| Color Support | 1.07 Billion Colors (10-Bit) |
| HDR Support | No |
| Color Gamut | 100% DCI-P3 |
| Image Controls | Blue Only, False Color, Focus Peaking, Image Flip, Pixel-to-Pixel Zoom, RGB Parade, Screen Markers, Waveform |
| Video I/O | 1x BNC (3G-SDI) Output 1x HDMI Output 1x BNC (3G-SDI) Input 1x HDMI Input |
|---|---|
| Embedded Audio | HDMISDI |
| Audio I/O | 1x 1/8" / 3.5 mm Headphone Output |
| Built-In Speaker | No |
| Power I/O | 1x LEMO 0B 2-Pin (34 VDC / 2.1 A) Input |
| Other I/O | 1x LEMO 5-Pin Output 1x RJ45 Output |
| Media/Memory Card Slot | No |
| Wireless | No |
|---|---|
| Mobile App Compatible | No |
| Video Format | SDI (10-Bit 4:2:2)1080p: 60/59.94/50/30/29.97/25/24/23.98 1080 PsF: 30/29.97/25/24/23.98 1080i: 60/59.94/50 720p: 60/59.94/50/30/29.97/25/24/23.98 480i 576i HDMI (8/10/12-Bit)UHD 4K: 30 1080p: 60/59.94/50/30/25/24/23.98 1080 PsF: 30/25/24/23.98 1080i: 60/59.94/50 720p: 60/59.94/50/30/25/24/23.98 576p: 50 480p: 120/119.88/60/59.94 480i: 60/59.94 576i: 50 |
|---|
| Input Power | 10 to 34 VDC at 2.1 A |
|---|---|
| Battery | No |
| Tripod/Accessory Mounting | 6x 1/4"-20 Female |
|---|
| Material of Construction | Aluminum |
|---|---|
| Dimensions | 5.9 x 3.4 x 1.3" / 150 x 86 x 34 mm |
| Weight | 1.11 lb / 504.00 g |
| Package Weight | 1.985 lb |
|---|---|
| Box Dimensions (Lx WxH) | 9.5 x 7 x 2.5" |
