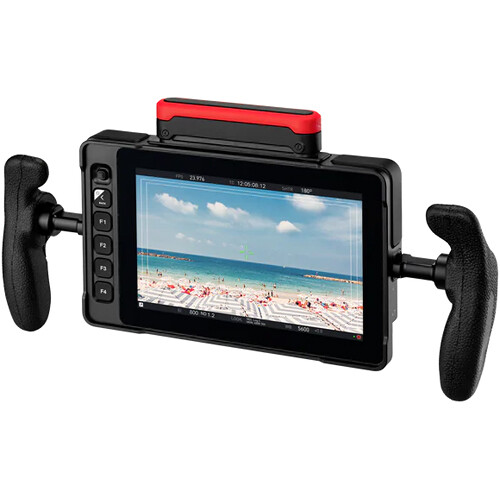

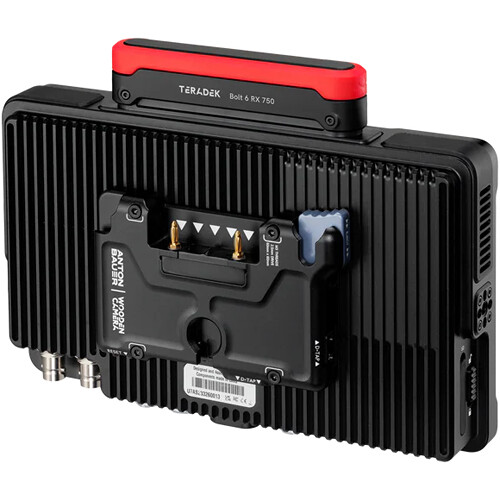

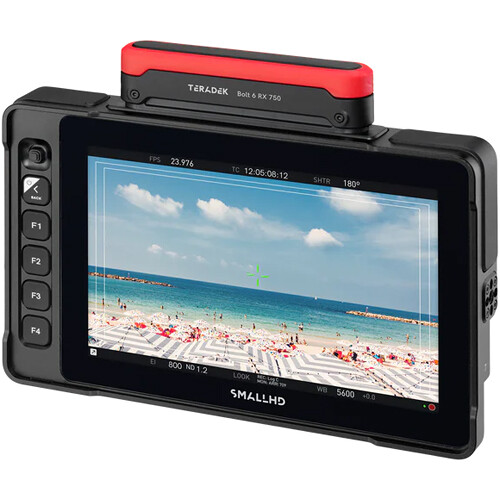

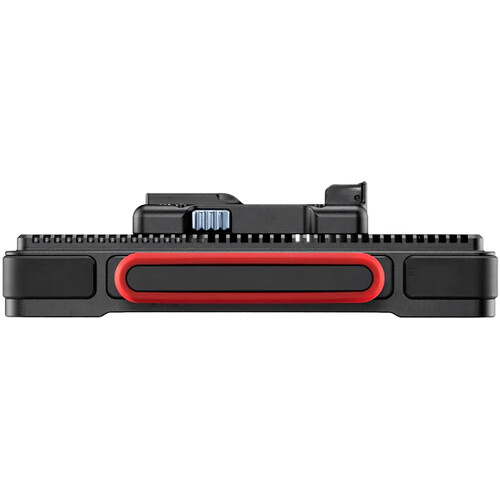

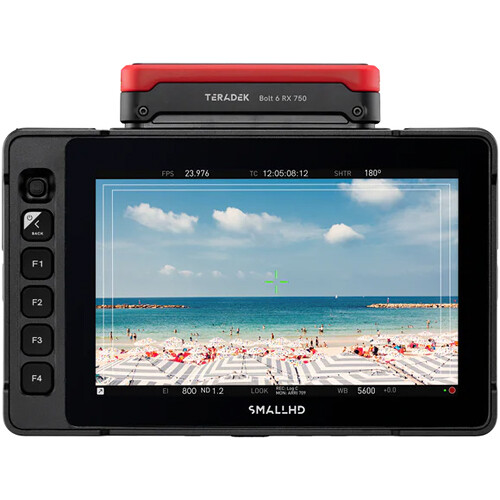

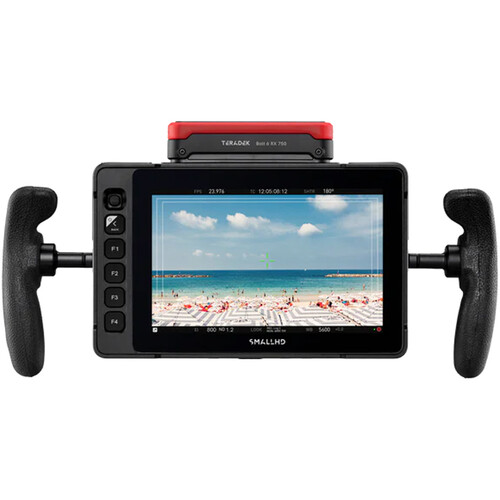

SmallHD ULTRA 7 Bolt 6 RX 750 Monitor (Gold Mount)
$3,035.00
In Stock
- 7" 1920 x 1080 Touchscreen Display
- Built-In Bolt 6 Wireless Receiver
- 6G-SDI & HDMI I/O; Up to 4K Video
- Gold Mount Battery Plate
Tracked ShippingRates shown at checkout
60-Day ReturnsOn eligible items
Expert SupportReal people, real advice
SmallHD ULTRA 7 Bolt 6 RX 750 Monitor (Gold Mount)
The SmallHD ULTRA 7 Bolt 6 RX 750 Monitor (Gold Mount) is built to support demanding work, in the studio and on location. It offers a 7.0" display at 1920 x 1080.
Highlights
- 7" 1920 x 1080 Touchscreen Display
- Built-In Bolt 6 Wireless Receiver
- 6G-SDI & HDMI I/O; Up to 4K Video
- Gold Mount Battery Plate
Ordered from NIXTRONIC, it ships with full tracking worldwide and is backed by our 60-day returns on eligible items.

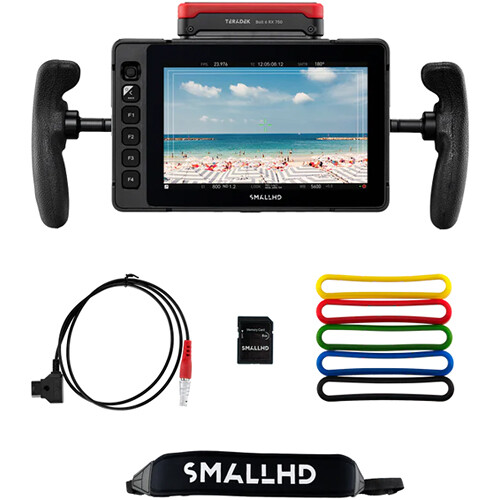

In the Box
- SmallHD ULTRA 7 Bolt 6 RX 750 Monitor (Gold Mount)
- Gold Mount Battery Plate
- SmallHD D-Tap to 2-Pin Power Cable (36")
- SmallHD Ultra Clear Screen Protector for Ultra 7
| SKU | 16-0728-GM |
|---|---|
| Brand | SmallHD |
| Panel Type | LCD |
|---|---|
| Display Size | 7.0" / 17.8 cm |
| Native Resolution | 1920 x 1080 |
| Aspect Ratio | 16:9 |
| Touchscreen | Yes |
| Maximum Brightness | 2300 nits / cd/m2 |
| Contrast Ratio | 1000:1 |
| Color Support | 1.07 Billion Colors (10-Bit) |
| HDR Support | No |
| Color Gamut | 95% DCI-P398% Rec. 709 |
| Image Controls | Blue Only, False Color, Focus Peaking, Image Flip, Pixel-to-Pixel Zoom, RGB Parade, Screen Markers, Waveform |
| Video I/O | 1x BNC (6G-SDI) Output 1x HDMI Output 1x BNC (6G-SDI) Input 1x HDMI Input |
|---|---|
| Embedded Audio | HDMISDI |
| Audio I/O | 1x 1/8" / 3.5 mm Headphone Output |
| Built-In Speaker | No |
| Power I/O | 1x LEMO 0B 2-Pin (34 VDC / 2.1 A) Input |
| Other I/O | 1x LEMO 5-Pin (Camera Control) Output 1x RJ45 (Camera Control) Output |
| Media/Memory Card Slot | Single Slot: SD (Unspecified Type) [LUT Upload Only] |
| Encryption | No |
| Wireless | Proprietary Wireless / Wi-Fi |
|---|---|
| Wireless Range | 750' / 228.6 m |
| Mobile App Compatible | No |
| Video Format | SDI (10-Bit 4:2:2)DCI 4K: 30/29.97/25/24/23.98 UHD 4K: 30/29.97/24/23.98 DCI 2K: 60/59.94/50/48/47.95 1080p: 60/59.94/50/30/29.97/25/24/23.98 1080 PsF: 30/29.97/25/24/23.98 1080i: 60/59.94/50 720p: 100/60/59.94/50/30/29.97/25/24/23.98 480i: 59.94 576i: 50 HDMI (8/10/12/16-Bit 4:4:4)UHD 4K: 30 1080p: 60/59.94/50/30/25/24/23.98 1080 PsF: 30/25/24/23.98 1080i: 60/59.94/50 720p: 120/119.88/100/60/59.94/50/30/25/24/23.98 576p: 100/50 480p: 120/119.88/60/59.94 480i: 60/59.94 576i: 50 |
|---|---|
| Audio Format | 2-Channel |
| Input Power | 10 to 34 VDC at 2.1 A |
|---|---|
| Battery | 1x Gold Mount on Included, Interchangeable Plate |
| Tripod/Accessory Mounting | Bottom/Left/Right1x 1/4"-20 Female |
|---|
| Environmental Resistance | Dust/Water-Resistant (IP54) |
|---|---|
| Material of Construction | Aluminum |
| Weight | 1.98 lb / 900.00 g |
| Package Weight | 4.38 lb |
|---|---|
| Box Dimensions (Lx WxH) | 12.3 x 8.9 x 3.8" |
