SmallHD ULTRA 7 Bolt 6 RX 750 Monitor (V-Mount, B-Stock)

Name: SmallHD ULTRA 7 Bolt 6 RX 750 Monitor (V-Mount, B-Stock)
Brand: SmallHD
SKU: 16-0728-VM-BSTOCK
Price: 2243.00 USD
Availability: InStock

(0)

Be the first to review SKU: 16-0728-VM-BSTOCK

$2,243.00

In Stock

7" 1920 x 1080 Touchscreen Display
Built-In Bolt 6 Wireless Transmitter
6G-SDI & HDMI Inputs/Outputs, 4K I/O
V-Mount Battery Plate

Tracked ShippingRates shown at checkout
60-Day ReturnsOn eligible items
Expert SupportReal people, real advice

SmallHD ULTRA 7 Bolt 6 RX 750 Monitor (V-Mount, B-Stock)

Designed for people who rely on their gear, the SmallHD ULTRA 7 Bolt 6 RX 750 Monitor (V-Mount, B-Stock) delivers solid, consistent performance. It offers a 7.0" display at 1920 x 1080.

Highlights

7" 1920 x 1080 Touchscreen Display
Built-In Bolt 6 Wireless Transmitter
6G-SDI & HDMI Inputs/Outputs, 4K I/O
V-Mount Battery Plate

Ordered from NIXTRONIC, it ships with full tracking worldwide and is backed by our 60-day returns on eligible items.

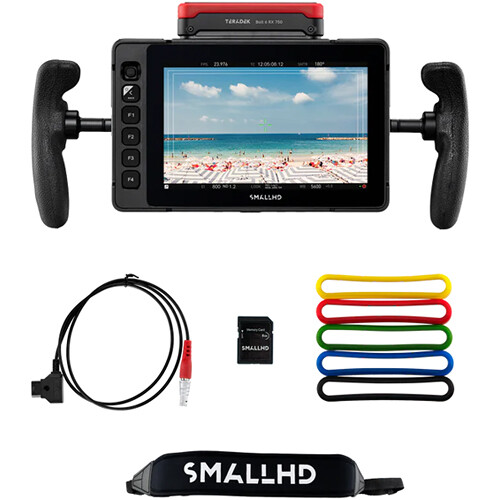

In the Box

SmallHD ULTRA 7 Bolt 6 RX 750 Monitor (V-Mount, B-Stock)
SmallHD Right-Angle D-Tap to Right-Angle 2-Pin Power Cable (18")
SmallHD Micro Battery Plate for Ultra Series Monitor (V-Mount)
SmallHD Ultra Clear Screen Protector for Ultra 7
SmallHD Monitor Handles and Neck Strap

SKU	16-0728-VM-BSTOCK
Brand	SmallHD

Display
Panel Type	LCD
Display Size	7.0" / 17.8 cm
Native Resolution	1920 x 1080
Aspect Ratio	16:9
Touchscreen	Yes
Maximum Brightness	2300 nits / cd/m2
Contrast Ratio	1000:1
Color Support	1.07 Billion Colors (10-Bit)
HDR Support	No
Color Gamut	95% DCI-P398% Rec. 709
Image Controls	Blue Only, False Color, Focus Peaking, Image Flip, Pixel-to-Pixel Zoom, RGB Parade, Screen Markers, Waveform

Inputs/Outputs
Video I/O	1x BNC (6G-SDI) Output 1x HDMI Output 1x BNC (6G-SDI) Input 1x HDMI Input
Embedded Audio	HDMISDI
Audio I/O	1x 1/8" / 3.5 mm Headphone Output
Built-In Speaker	No
Power I/O	1x LEMO 0B 2-Pin (34 VDC / 2.1 A) Input
Other I/O	1x LEMO 5-Pin (Camera Control) Output 1x RJ45 (Camera Control) Output
Media/Memory Card Slot	Single Slot: SD (Unspecified Type) [LUT Upload Only]
Encryption	No

Wireless
Wireless	Proprietary Wireless / Wi-Fi
Wireless Range	750' / 228.6 m
Mobile App Compatible	No

Format Support
Video Format	SDI (10-Bit 4:2:2)DCI 4K: 30/29.97/25/24/23.98 UHD 4K: 30/29.97/24/23.98 DCI 2K: 60/59.94/50/48/47.95 1080p: 60/59.94/50/30/29.97/25/24/23.98 1080 PsF: 30/29.97/25/24/23.98 1080i: 60/59.94/50 720p: 100/60/59.94/50/30/29.97/25/24/23.98 480i: 59.94 576i: 50 HDMI (8/10/12/16-Bit 4:4:4)UHD 4K: 30 1080p: 60/59.94/50/30/25/24/23.98 1080 PsF: 30/25/24/23.98 1080i: 60/59.94/50 720p: 120/119.88/100/60/59.94/50/30/25/24/23.98 576p: 100/50 480p: 120/119.88/60/59.94 480i: 60/59.94 576i: 50
Audio Format	2-Channel
