SmallHD ULTRA 7 UHD 4K On-Camera Touchscreen Monitor (Teal)
$2,111.00
In Stock
- 7" 1920 x 1200 Touchscreen Display
- 6G-SDI & HDMI Inputs/Outputs
- Bright 2300 cd/m² LCD Panel
- 5-Pin USB & Ethernet Control Powers
Tracked ShippingRates shown at checkout
60-Day ReturnsOn eligible items
Expert SupportReal people, real advice

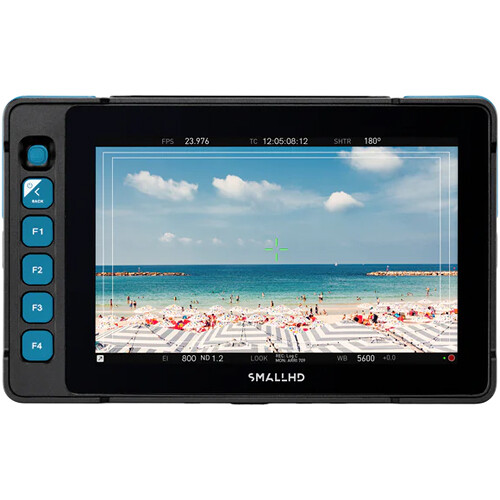

SmallHD ULTRA 7 UHD 4K On-Camera Touchscreen Monitor (Teal)
The SmallHD ULTRA 7 UHD 4K On-Camera Touchscreen Monitor (Teal) is built to support demanding work, in the studio and on location. It offers a 7.0" display at 1920 x 1200.
Highlights
- 7" 1920 x 1200 Touchscreen Display
- 6G-SDI & HDMI Inputs/Outputs
- Bright 2300 cd/m² LCD Panel
- 5-Pin USB & Ethernet Control Powers
Ordered from NIXTRONIC, it ships with full tracking worldwide and is backed by our 60-day returns on eligible items.
In the Box
- SmallHD ULTRA 7 UHD 4K On-Camera Touchscreen Monitor (Teal)
- D-Tap Cable
- Screen Protector
| SKU | 16-0727-007 |
|---|---|
| Brand | SmallHD |
| Panel Type | IPS-Type LCD |
|---|---|
| Display Size | 7.0" / 17.8 cm |
| Native Resolution | 1920 x 1200 |
| Aspect Ratio | 16:9 |
| Touchscreen | Yes |
| Maximum Brightness | 2300 nits / cd/m2 |
| Contrast Ratio | 1000:1 |
| Color Support | 1.07 Billion Colors (10-Bit) |
| HDR Support | No |
| Color Gamut | 95% DCI-P398% Rec. 709 |
| Image Controls | Blue Only, False Color, Focus Peaking, Image Flip, Pixel-to-Pixel Zoom, RGB Parade, Screen Markers, Waveform |

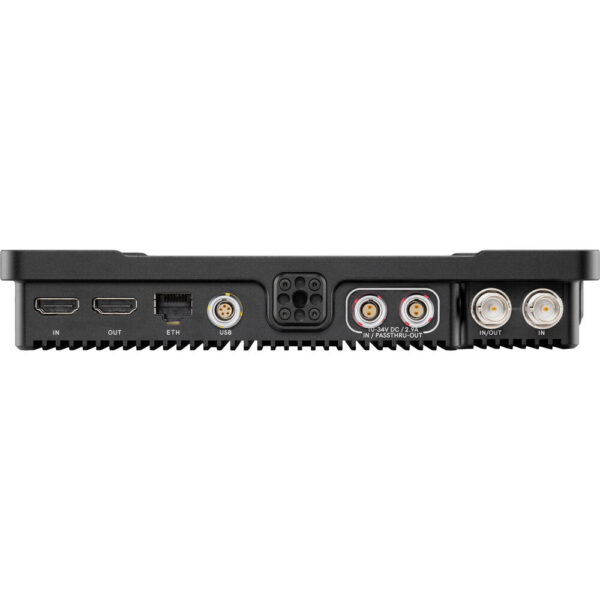

| Video I/O | 1x BNC (6G-SDI) Input 1x BNC (6G-SDI) Input/Output 1x HDMI 2.0 Input 1x HDMI 2.0 Output |
|---|---|
| Embedded Audio | HDMI/SDI |
| Audio I/O | 1x 1/8" / 3.5 mm Headphone Output |
| Built-In Speaker | No |
| Power I/O | 1x LEMO 0B 2-Pin (34 VDC / 2.9 A) Input/Output 1x LEMO 0B 2-Pin (34 VDC / 2.9 A) Input/Output 1x Pogo 5-Pin (34 VDC) Input |
| Other I/O | 1x LEMO 5-Pin USB1x RJ45 (Camera Control) |
| Media/Memory Card Slot | No |
| Wireless | No |
|---|---|
| Mobile App Compatible | No |
| Video Format | SDI (10-BitYCC)DCI 4K: 30/29.97/25/24/23.98 UHD 4K: 30/29.97/24/23.98 1080p: 60/59.94/50/30/29.97/25/24/23.98 1080 PsF: 30/29.97/25/24/23.98 1080i: 120/119.88/60/59.94/50 720p: 60/59.94/50/30/29.97/25/24/23.1 480i: 59.94 576i: 50 SDI (10-Bit 4:4:4 RGB, YCC)DCI 2K: 60/59.94/50/48/47.95 1080p: 60/59.94/50/48/47.95 SDI (12-Bit 4:4:4 YCC)DCI 2K: 60/59.94/50/48/47.95 1080p: 60/59.94/50/48/47.95 HDMIRGB, YCCUHD 4K: 30/29.97/25/24/23.98 1080p: 120/119.88/100/60/59.94/50/30/29.97/25/24/23.98 1080i: 120/119.88/100/60/59.94/50 720p: 240/239.76/200/120/119.88/100/60/59.94/50/30/29.97/25/24/23.98 480p: 240/239.76/120/119.88/60/59.94 480i: 60/59.94 576p: 200/100/50 576i: 50 |
|---|---|
| Video Signal Conversion | HDMI to SDI SDI to HDMI |
| Input Power | 10 to 34 VDC at 2.5 to 2.9 A |
|---|---|
| Battery | Interchangeable Mount (No Plate Included) |
| Tripod/Accessory Mounting | Top9x Anti-Twist 1/4"-20 Female Bottom1x Anti-Twist 1/4"-20 Female Left1x Anti-Twist 1/4"-20 Female Right1x Anti-Twist 1/4"-20 Female |
|---|
| Environmental Resistance | Dust/Water-Resistant (IP53) |
|---|---|
| Material of Construction | Aluminum |
| Dimensions | 8.2 x 5.1 x 1.36" / 209 x 130 x 34.66 mm |
| Weight | 2 lb / 0.9 kg |
