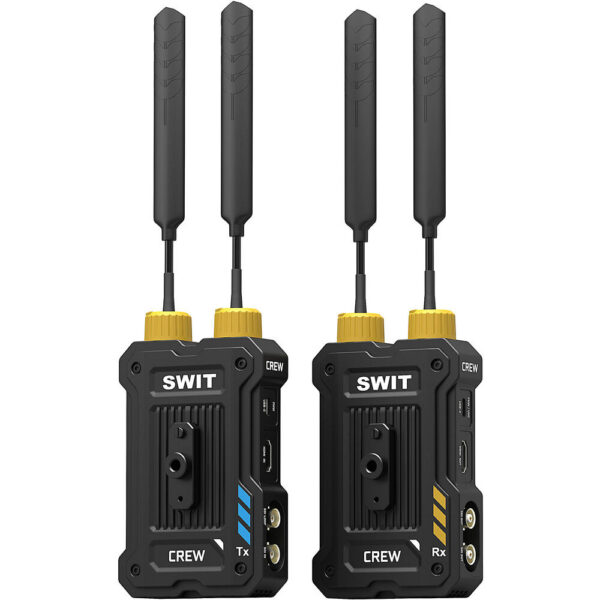

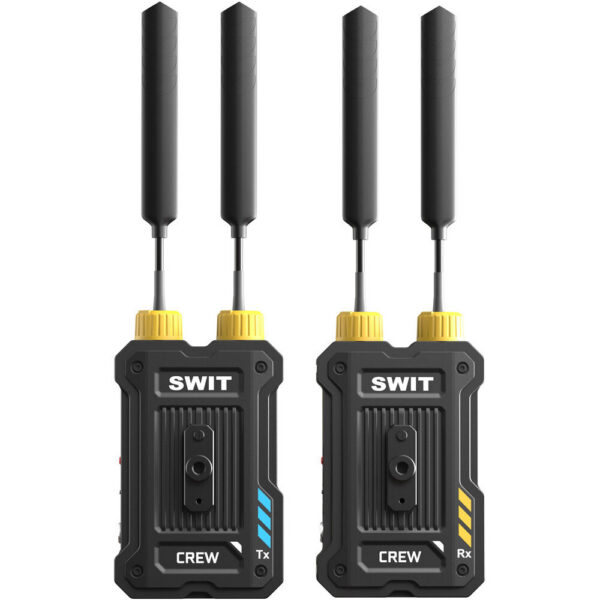

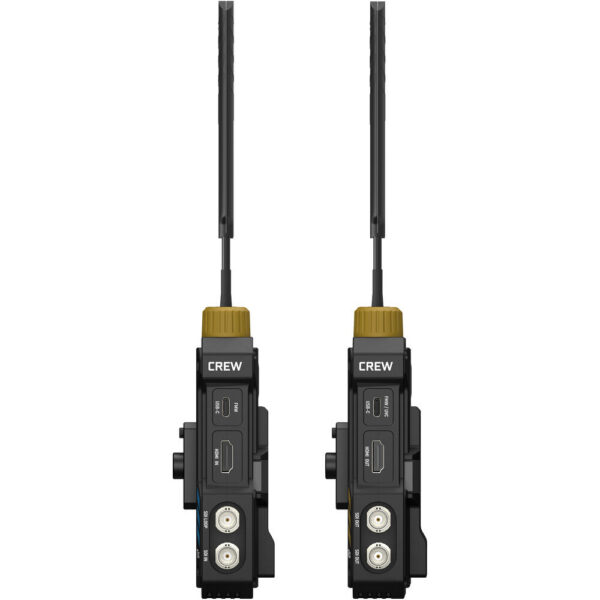

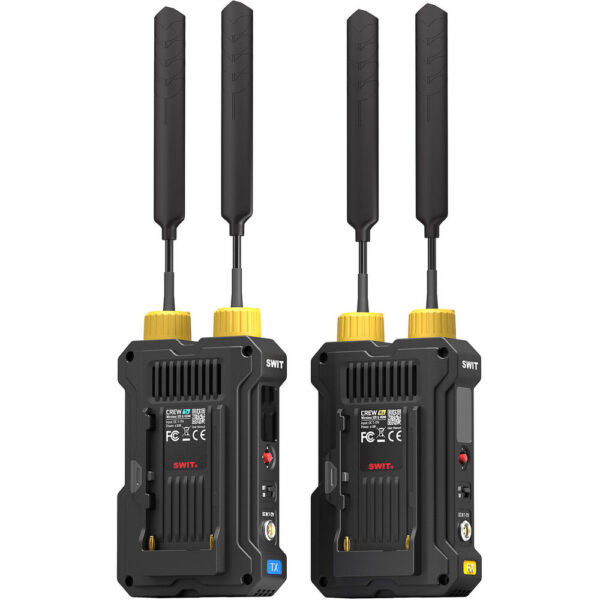

SWIT CREW 3G-SDI/HDMI/USB-C Wireless Video Transmission System (4000')
$2,274.00
In Stock
- Transmitter and Receiver Set
- Transmit up to 1080p60 Video
- Transmit up to 4000' to up to 4 RX Units
- SDI and HDMI Inputs, SDI Outputs
Tracked ShippingRates shown at checkout
60-Day ReturnsOn eligible items
Expert SupportReal people, real advice
SWIT CREW 3G-SDI/HDMI/USB-C Wireless Video Transmission System (4000')
The SWIT CREW 3G-SDI/HDMI/USB-C Wireless Video Transmission System (4000') is a dependable addition to a serious kit.
Highlights
- Transmitter and Receiver Set
- Transmit up to 1080p60 Video
- Transmit up to 4000' to up to 4 RX Units
- SDI and HDMI Inputs, SDI Outputs
Ordered from NIXTRONIC, it ships with full tracking worldwide and is backed by our 60-day returns on eligible items.

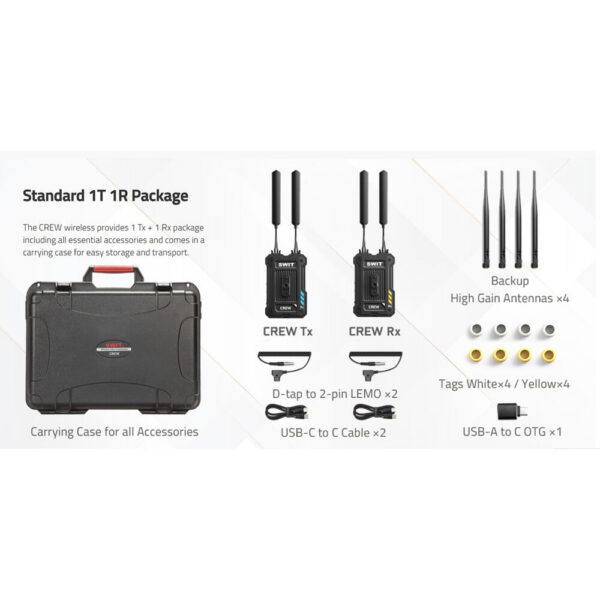

In the Box
- SWIT CREW 3G-SDI/HDMI/USB-C Wireless Video Transmission System (4000')
- Transmitter
- Receiver
- 4 x Antenna
- 4 x High-Gain Antenna
- 8 x Antenna Protective Cover
- OTG Adapter
- 2 x USB-C to USB-C Cable
- 2 x D-Tap to 2-Pin LEMO-Type Cable
- 2 x 1/4"-20 Quick Release Adapter
| SKU | CREW |
|---|---|
| Brand | SWIT |
| Antenna I/O | Transmitter/Receiver: 2x F-Type Female |
|---|---|
| Video I/O | Transmitter: 1x BNC (3G-SDI) Input Transmitter: 1x BNC (3G-SDI) Loop Output Transmitter: 1x HDMI (Unspecified Signal) Input Receiver: 2x BNC (3G-SDI) Output Receiver: 1x HDMI (Unspecified Signal) Output Receiver: 1x USB-C (Unspecified Signal) Output |
| Embedded Audio | HDMI/SDI/USB |
| Audio I/O | No |
| Power I/O | Transmitter/Receiver: 1x LEMO 0B 2-Pin (17 VDC) Input Transmitter: 1x USB-C (9 VDC / 2 A) Input Receiver: 1x USB-C (5 VDC / 2 A) Input |
| Encryption | Yes: 128-Bit AES |
| Wireless | 5.1 GHz Radio/RF*Built-In |
|---|---|
| Wireless Range | 4000' / 1.2 km |
| Frequency Range | 5.17 to 5.69 GHz5.75 to 5.83 GHz |
| Latency | 32 ms |
| RF Power | 23 d Bm |
| Mobile App Compatible | No |
| Cellular Support | No |
| Video Format | HDMI/SDI1080p: 60/59.94/50/30/29.97/25/24/23.98 1080 PsF: 30/29.97/25/24/23.98 1080i: 60/59.94/50 720p: 60/59.94/50 USB1080p: 60/50 |
|---|---|
| Audio Format | 2-Channel |
| Wireless Video Compression | Compressed |
| Timecode Support | Yes |
| Input Power | 7 to 17 VDC5 to 9 VDC at 2 A |
|---|---|
| Battery | Transmitter/Receiver: 1x L-Series Mount on Fixed Plate |
| Power Consumption | Transmitter: 16 WReceiver: 6 W |
| Tripod/Accessory Mounting | Transmitter/Receiver, Bottom1x 1/4"-20 Female |
|---|

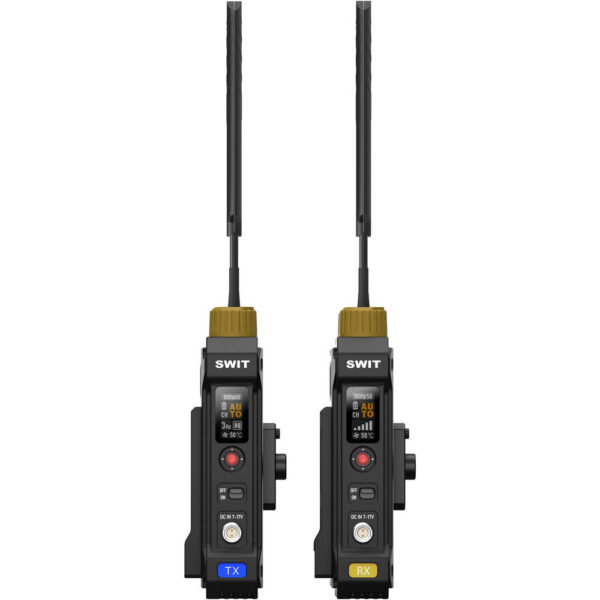

| Status Display | On Transmitter & Receiver |
|---|---|
| Environmental Resistance | No |
| Operating Conditions | 14 to 104°F / -10 to 40°C |
| Material of Construction | Metal |
| Dimensions | Transmitter/Receiver: 5.1 x 3.1 x 1.4" / 130 x 80 x 36.7 mm |
| Weight | Transmitter: 11.75 oz / 333.00 g Receiver: 11.78 oz / 334.00 g |
| Package Weight | 5.63 lb |
|---|---|
| Box Dimensions (Lx WxH) | 14.4 x 11.3 x 4.4" |
