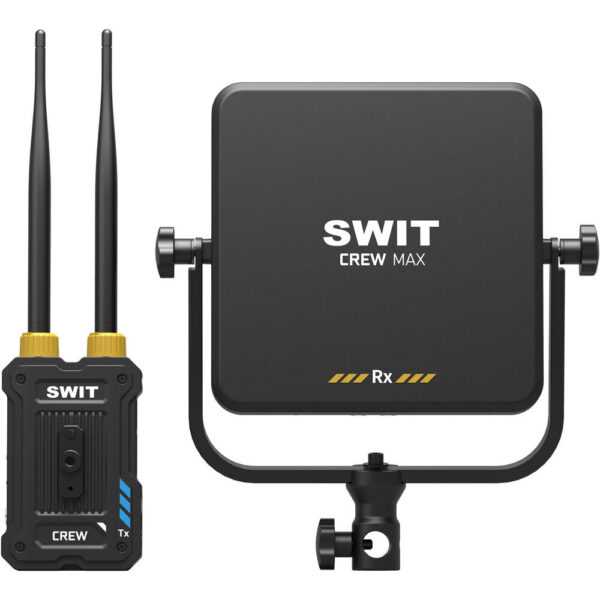

SWIT CREW MAX 3G-SDI/HDMI/USB-C Wireless Video Transmission System (10,000')
$4,549.00
In Stock
- Transmitter and Panel Receiver Set
- Transmit up to 1080p60 Resolution Video
- Transmit up to 10,000' to Four Receivers
- SDI and HDMI Inputs and Outputs
Tracked ShippingRates shown at checkout
60-Day ReturnsOn eligible items
Expert SupportReal people, real advice
SWIT CREW MAX 3G-SDI/HDMI/USB-C Wireless Video Transmission System (10,000')
Designed for people who rely on their gear, the SWIT CREW MAX 3G-SDI/HDMI/USB-C Wireless Video Transmission System (10,000') delivers solid, consistent performance.
Highlights
- Transmitter and Panel Receiver Set
- Transmit up to 1080p60 Resolution Video
- Transmit up to 10,000' to Four Receivers
- SDI and HDMI Inputs and Outputs
Every order from NIXTRONIC ships tracked worldwide and is covered by our 60-day return policy on eligible items.
In the Box
- SWIT CREW MAX 3G-SDI/HDMI/USB-C Wireless Video Transmission System (10,000')
- Transmitter
- Receiver Panel with Yoke
- 2 x Antenna
- 2 x Antenna Protective Cap (Yellow)
- 2 x Antenna Protective Cap (White)
- USB-A to USB-C OTG Adapter
- 2 x USB-C to USB-C Cable
- 2 x D-Tap to 2-Pin LEMO-Type Cable
- Carry Case
| SKU | CREW MAX |
|---|---|
| Brand | SWIT |
| Antenna I/O | Transmitter/Receiver: 2x F-Type Female |
|---|---|
| Video I/O | Transmitter: 1x BNC (3G-SDI) Input Transmitter: 1x BNC (3G-SDI) Loop Output Transmitter: 1x HDMI (Unspecified Signal) Input Receiver: 2x BNC (3G-SDI) Output Receiver: 1x HDMI (Unspecified Signal) Output Receiver: 1x USB-C (Unspecified Signal) Output |
| Embedded Audio | HDMI/SDI/USB |
| Audio I/O | No |
| Power I/O | Transmitter/Receiver: 1x LEMO 0B 2-Pin (17 VDC) Input Transmitter: 1x USB-C (9 VDC / 2 A) Input Receiver: 1x USB-C (5 VDC / 2 A) Input |
| Encryption | Yes: 128-Bit AES |
| Wireless | 5.1 GHz Radio/RF*Built-In |
|---|---|
| Wireless Range | 10,000' / 3 km |
| Frequency Range | 5.17 to 5.69 GHz5.75 to 5.83 GHz |
| Latency | 32 ms |
| RF Power | 23 d Bm |
| Mobile App Compatible | No |
| Cellular Support | No |
| Video Format | HDMI/SDI1080p: 60/59.94/50/30/29.97/25/24/23.98 1080 PsF: 30/29.97/25/24/23.98 1080i: 60/59.94/50 720p: 60/59.94/50 USB1080p: 60/50 |
|---|---|
| Audio Format | 2-Channel |
| Wireless Video Compression | Compressed |
| Timecode Support | Yes |
| Input Power | 7 to 17 VDC5 to 9 VDC at 2 A |
|---|---|
| Battery | Transmitter: 1x L-Series Mount on Fixed Plate Receiver: 1x V-Mount on Fixed Plate |
| Power Consumption | Transmitter: 16 WReceiver: 6 W |
| Tripod/Accessory Mounting | Transmitter, Bottom1x 1/4"-20 Female Receiver, Bottom1x 5/8" Receiver |
|---|
| Status Display | On Transmitter & Receiver |
|---|---|
| Environmental Resistance | No |
| Operating Conditions | 14 to 104°F / -10 to 40°C |
| Material of Construction | Metal |
| Dimensions | Transmitter: 5.1 x 3.1 x 1.4" / 130 x 80 x 36.7 mm Receiver: 7.5 x 7.5 x 2" / 190 x 190 x 50 mm |
| Weight | Transmitter: 11.75 oz / 333.00 g Receiver: 53.26 oz / 1.51 kg |
