SWIT FLOW10K Pro Wireless 1080p Video Transmission System (10,000')
$6,369.00
In Stock
- Wireless Transmitter & Receiver Panel
- HDMI & SDI TX Input, RX SDI Output
- Up to 1080p Video, Multicast Support
- Transmit up to 10,000' Line-of-Sight
Tracked ShippingRates shown at checkout
60-Day ReturnsOn eligible items
Expert SupportReal people, real advice

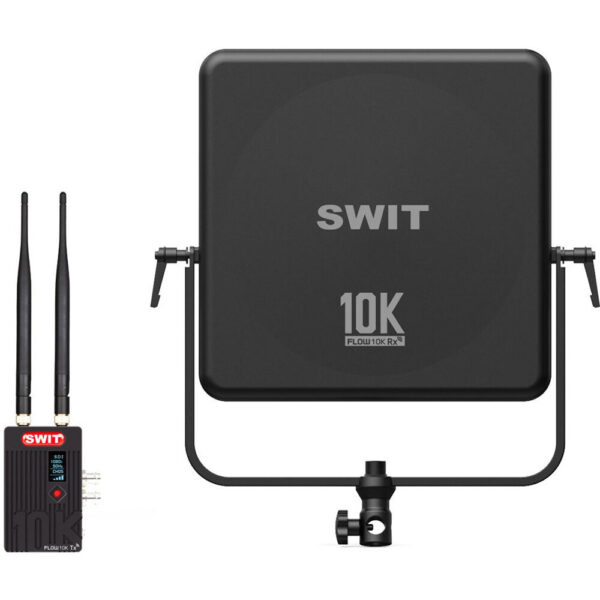

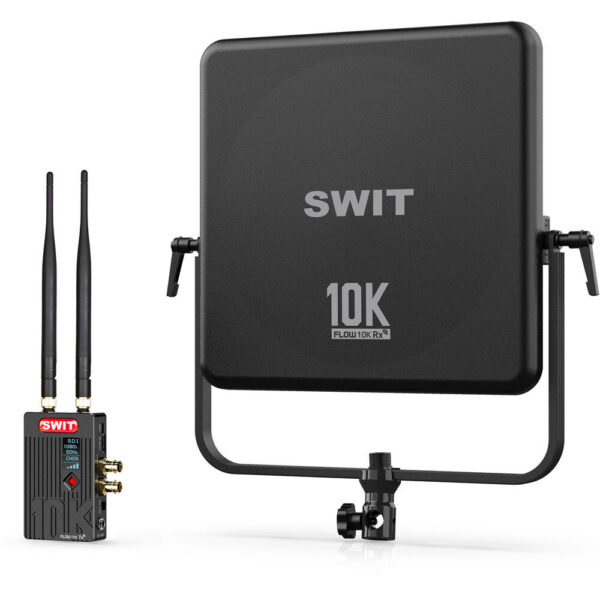

SWIT FLOW10K Pro Wireless 1080p Video Transmission System (10,000')
Designed for people who rely on their gear, the SWIT FLOW10K Pro Wireless 1080p Video Transmission System (10,000') delivers solid, consistent performance.
Highlights
- Wireless Transmitter & Receiver Panel
- HDMI & SDI TX Input, RX SDI Output
- Up to 1080p Video, Multicast Support
- Transmit up to 10,000' Line-of-Sight
Ordered from NIXTRONIC, it ships with full tracking worldwide and is backed by our 60-day returns on eligible items.
In the Box
- SWIT FLOW10K Pro Wireless 1080p Video Transmission System (10,000')

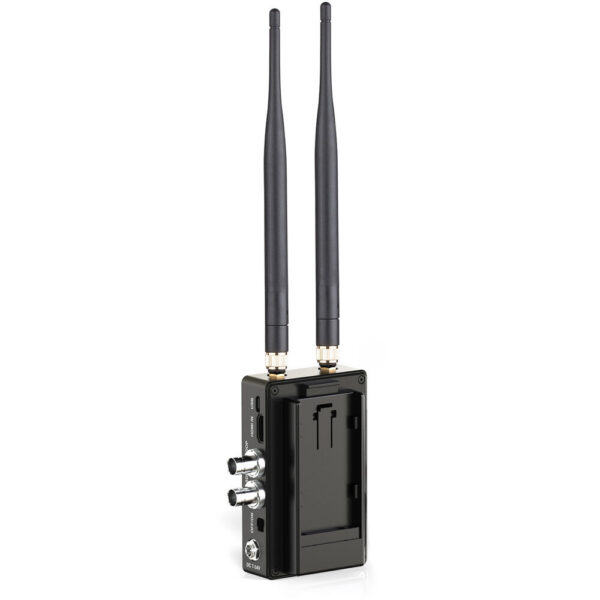

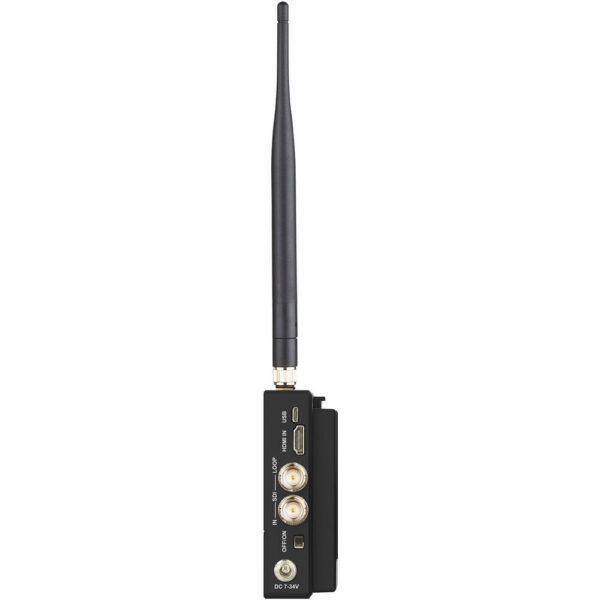

- Transmitter

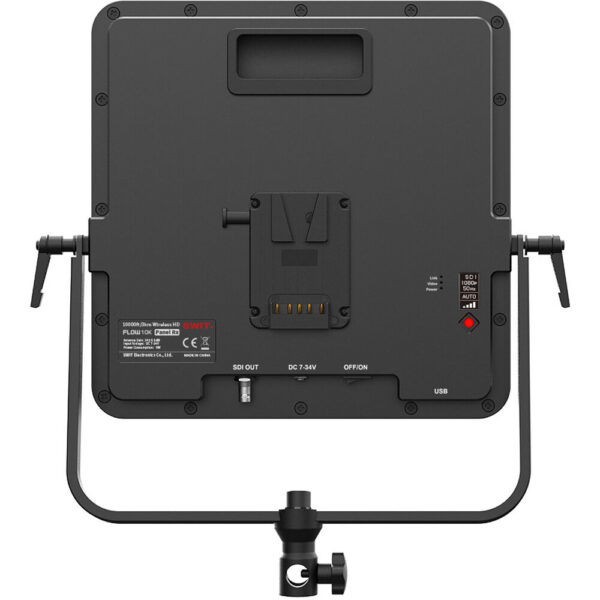

- Panel Receiver
- Shoe Mount
- D-Tap Power Cable
- Power Adapter
- Carry Case
| SKU | FLOW10K |
|---|---|
| Brand | SWIT |
| Antenna I/O | Transmitter: 2x RP-SMA Female |
|---|---|
| Video I/O | Transmitter: 1x HDMI (Unspecified Signal) Input Transmitter: 1x BNC (3G-SDI) Input Transmitter: 1x BNC (3G-SDI) Loop Output Receiver: 1x BNC (3G-SDI) Output |
| Embedded Audio | HDMI/SDI/Wireless |
| Audio I/O | No |
| Power I/O | Transmitter/Receiver: 1x Barrel (34 VDC) Input |
| Encryption | Yes: 128-Bit AES |
| Wireless | 5.8 GHz Radio/RF |
|---|---|
| Wireless Range | 10,000' / 3048 m (Line-of-Sight) |
| Frequency Range | DFS Frequencies5.17 to 5.69 GHz5.75 to 5.83 GHz |
| RF Power | 21.1 d Bm |
| Mobile App Compatible | No |
| Cellular Support | No |
| Video Format | HDMI/SDI1080p: 60/59.94/50/30/29.97/25/24/23.98 1080 PsF: 24/23.98 1080i: 60/59.94/50 720p: 60/59.94/50 |
|---|---|
| Audio Format | Not Specified by Manufacturer |
| Timecode Support | Yes |
| Input Power | 7 to 34 VDC |
|---|---|
| Battery | Receiver: 1x V-Mount on Fixed Plate Transmitter: 1x L-Series Mount on Fixed Plate |
| Power Consumption | Transmitter/Receiver: 9 W |
| Tripod/Accessory Mounting | Receiver, Bottom1x 1/4"-20 Female |
|---|
| Status Display | On Transmitter & Receiver |
|---|---|
| Environmental Resistance | No |
| Operating Conditions | 32 to 104°F / 0 to 40°C |
| Dimensions | Transmitter: 4.2 x 2.6 x 1" / 106.5 x 66 x 24.7 mm Receiver: 7.5 x 7.5 x 1.8" / 190 x 190 x 46 mm |
| Weight | Transmitter: 10.09 oz / 286.00 g Receiver: 3.3 lb / 1500.00 g |
