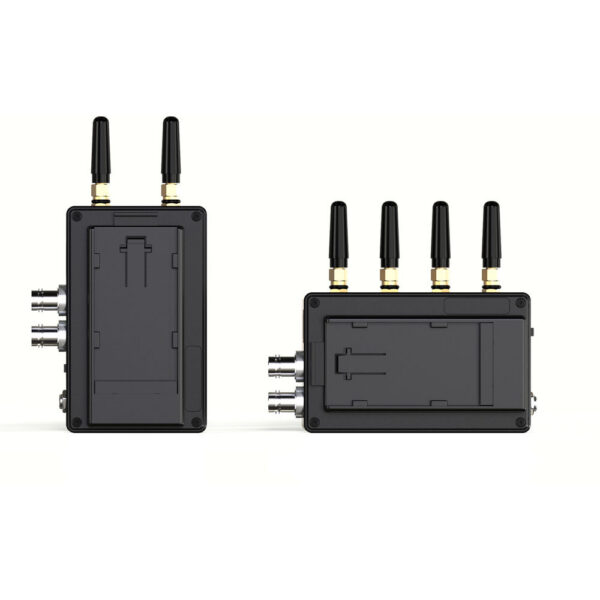

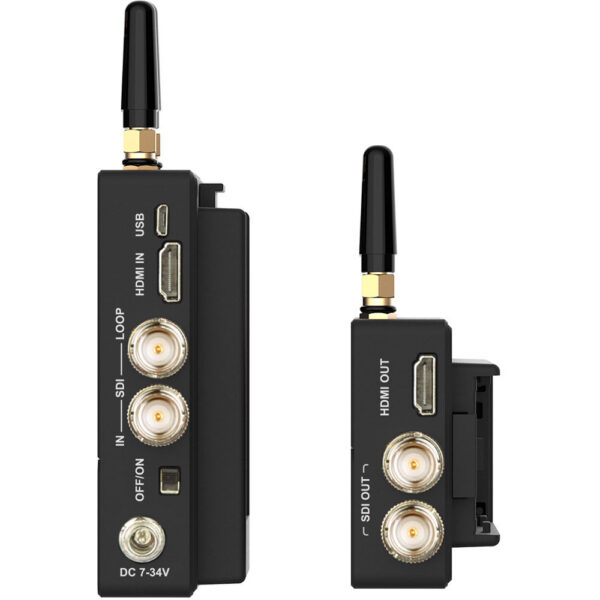

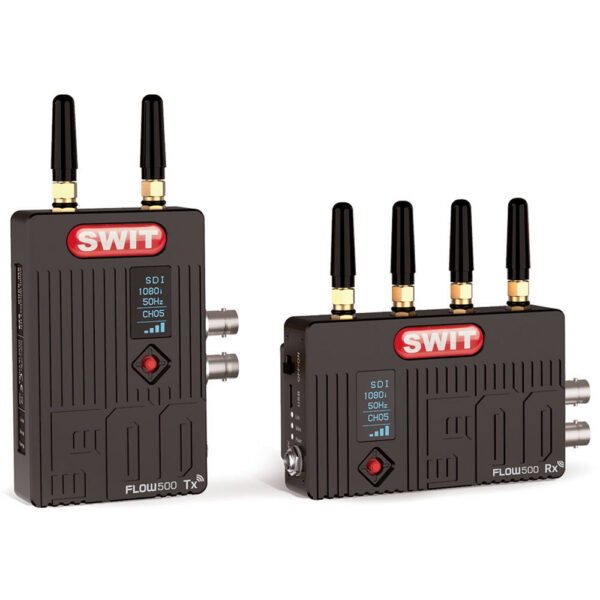

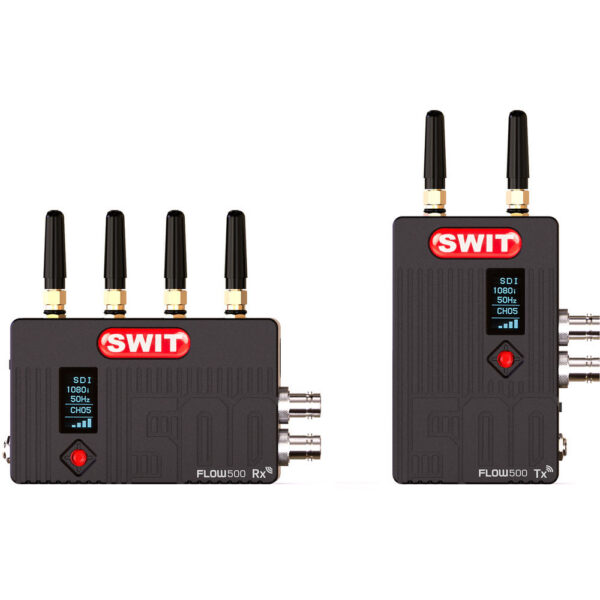

SWIT FLOW500 SDI & HDMI Wireless Video & Audio Transmission System
$1,140.00
In Stock
- Up to 500' Line-of-Sight Range
- 1 x Transmitter & 1 x Receiver
- Transmits up to 1080p60, L-Series Plate
- Uncompressed HDMI & 3G/HD/SD-SDI
Tracked ShippingRates shown at checkout
60-Day ReturnsOn eligible items
Expert SupportReal people, real advice
SWIT FLOW500 SDI & HDMI Wireless Video & Audio Transmission System
The SWIT FLOW500 SDI & HDMI Wireless Video & Audio Transmission System is built to support demanding work, in the studio and on location.
Highlights
- Up to 500' Line-of-Sight Range
- 1 x Transmitter & 1 x Receiver
- Transmits up to 1080p60, L-Series Plate
- Uncompressed HDMI & 3G/HD/SD-SDI
Ordered from NIXTRONIC, it ships with full tracking worldwide and is backed by our 60-day returns on eligible items.
In the Box
- SWIT FLOW500 SDI & HDMI Wireless Video & Audio Transmission System
- Transmitter
- Receiver
- 6 x Antenna
- Locking D-Tap to Barrel Cable (2')
- Power Adapter
- Articulating Arm
- Carrying Case
| SKU | FLOW500 |
|---|---|
| Brand | SWIT |
| Antenna I/O | Transmitter: 2x RP-SMAReceiver: 4x RP-SMA |
|---|---|
| Video I/O | Transmitter: 1x BNC (3G-SDI) Input Transmitter: 1x HDMI 1.3 Input Transmitter: 1x BNC (3G-SDI) Loop Output Receiver: 2x BNC (3G-SDI) Output Receiver: 1x HDMI 1.3 Output |
| Embedded Audio | HDMI/SDI: 2-Channel |
| Audio I/O | No |
| Power I/O | Transmitter: 1x Barrel 5.5 mm (34 VDC) Input Receiver: 1x Barrel 5.5 mm (34 VDC) Input |
| Other I/O | Transmitter: 1x Micro-USB |
| Encryption | Yes: 128-Bit AES |
| Wireless | Wi-Fi 5 (802.11ac) |
|---|---|
| Wireless Range | 500' / 152.4 m |
| # of Channels | 7 |
| Frequency Range | DFS Frequencies5.1 to 5.9 GHz |
| Mobile App Compatible | No |
| Cellular Support | No |
| Video Format | SDI1080p: 60/59.94/50/30/29.97/25/24/23.98 1080i: 59.94/50 1080 PsF: 24/23.98 720p: 60/59.94/50 |
|---|---|
| Audio Format | Not Specified by Manufacturer |
| Wireless Video Compression | Uncompressed |
| Timecode Support | Yes |
| Input Power | 7 to 34 VDC |
|---|---|
| Battery | Transmitter/Receiver: 1x L-Series Mount on Fixed Plate |
| Power Consumption | Transmitter: 8 WReceiver: 8 W |
| Tripod/Accessory Mounting | 1x 1/4"-20 Female |
|---|
| Environmental Resistance | No |
|---|---|
| Operating Conditions | 32 to 104°F / 0 to 40°C |
| Dimensions | Transmitter: 4.2 x 2.6 x 1" / 106.5 x 66 x 24.7 mm (Excluding Antenna, Battery Plate) Receiver: 4.2 x 2.6 x 1" / 106.5 x 66 x 24.7 mm (Excluding Antenna, Battery Plate) |
| Weight | Transmitter: 8.32 oz / 236.00 g, Excluding Antenna Receiver: 8.64 oz / 245.00 g, Excluding Antenna |
| Package Weight | 5.53 lb |
|---|---|
| Box Dimensions (Lx WxH) | 14.2 x 11.6 x 4.5" |
