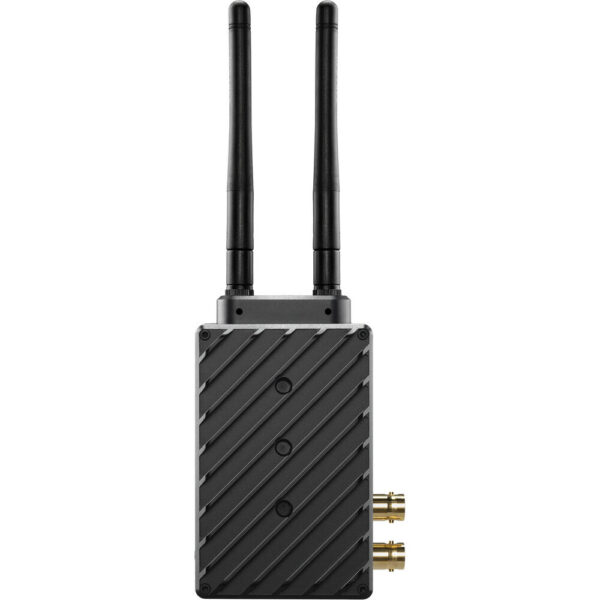

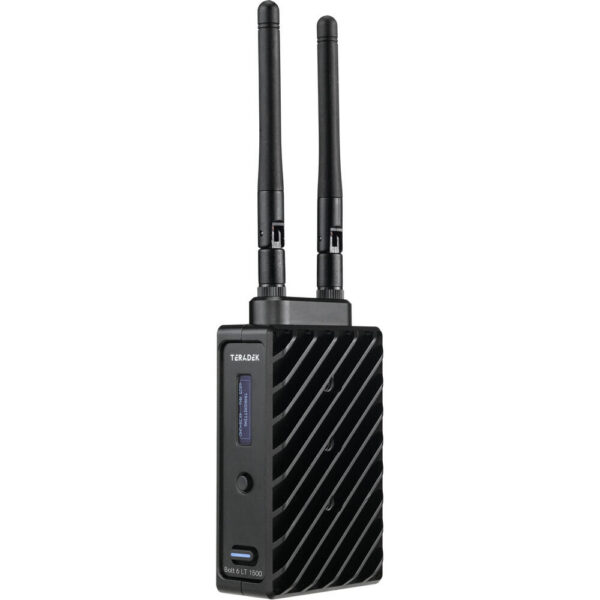

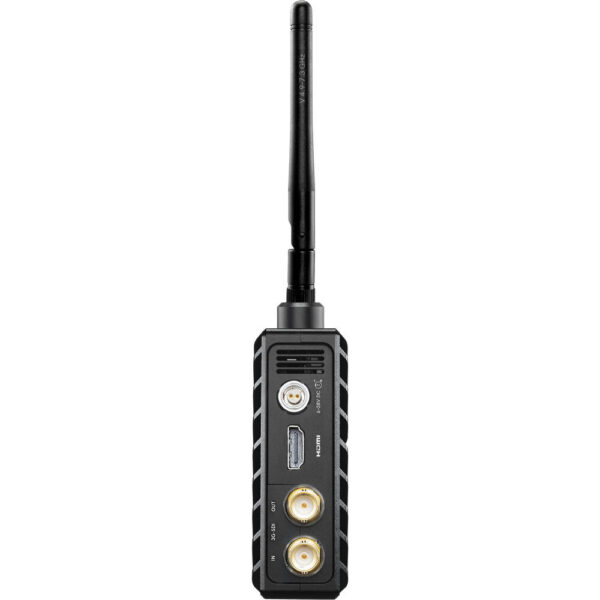

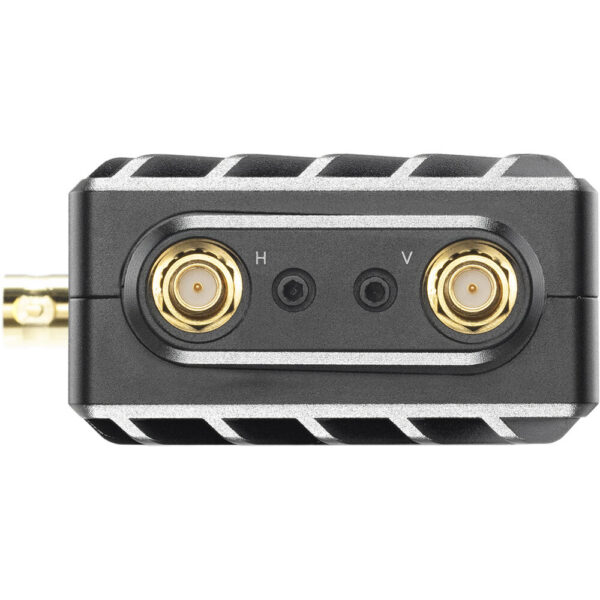

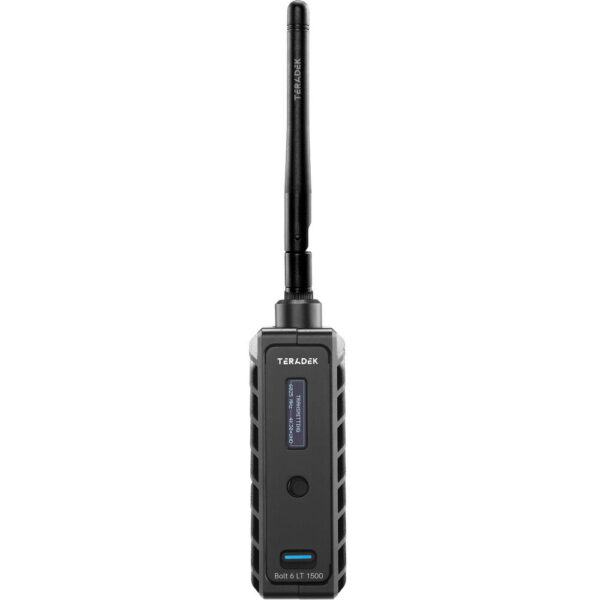

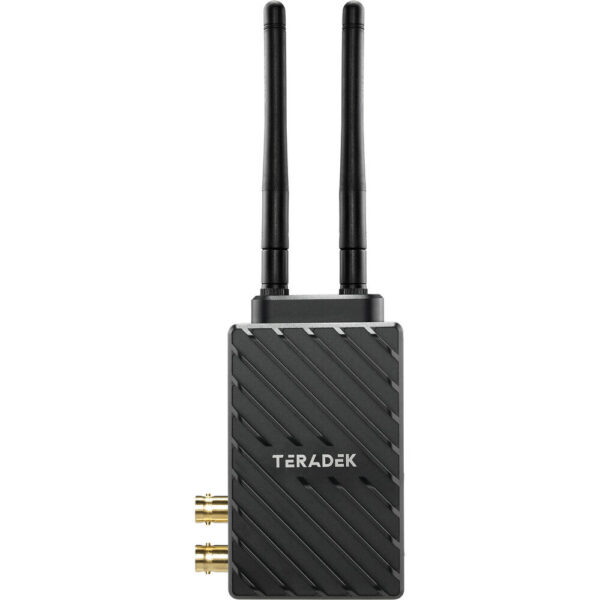

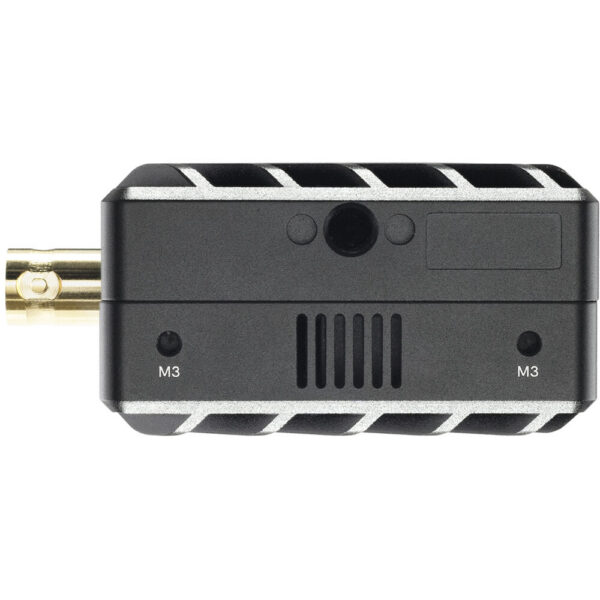

Teradek Bolt 6 LT 1500 3G-SDI/HDMI Wireless Transmitter
$2,303.00
In Stock
- Supports New 6 GHz Frequency Band
- Transmit Video up to 1500' Line of Sight
- 3G-SDI and HDMI Input, SDI Output
- Transmit to up to 6 x RXs
Tracked ShippingRates shown at checkout
60-Day ReturnsOn eligible items
Expert SupportReal people, real advice
Teradek Bolt 6 LT 1500 3G-SDI/HDMI Wireless Transmitter
The Teradek Bolt 6 LT 1500 3G-SDI/HDMI Wireless Transmitter is a dependable addition to a serious kit.
Highlights
- Supports New 6 GHz Frequency Band
- Transmit Video up to 1500' Line of Sight
- 3G-SDI and HDMI Input, SDI Output
- Transmit to up to 6 x RXs
Ordered from NIXTRONIC, it ships with full tracking worldwide and is backed by our 60-day returns on eligible items.
In the Box
- Teradek Bolt 6 LT 1500 3G-SDI/HDMI Wireless Transmitter
- 2-Pin to D-Tap Power Cable (18")
- USB 2.0 Type-A Male to Micro-USB Male Cable (39")
- HDMI Type A Male to HDMI Type A Male Cable (18")
- BNC to BNC SDI Cable (10")
- AC Adapter with Cable (6')
- 2 x Antenna
| SKU | 10-2271 |
|---|---|
| Brand | Teradek |
| Antenna I/O | 2x RP-SMA Female |
|---|---|
| Video I/O | 1x HDMI 1.4b Input 1x BNC (3G-SDI) Input 1x BNC (3G-SDI) Loop Output |
| Embedded Audio | HDMI: 2-ChannelSDI: 2-Channel |
| Audio I/O | No |
| Power I/O | 1x LEMO 2-Pin (28 VDC) Input |
| Other I/O | 1x Micro-USB Input |
| Encryption | Yes: 256-Bit AES |
| Wireless | 5G / Bluetooth |
|---|---|
| Wireless Range | 1500' / 457.2 m (Line-of-Sight) |
| Channel Bandwidth | 40 MHz, 20 MHz |
| Frequency Range | Non-DFS FrequenciesUS: 5.94 to 6.42 GHzUS: 5.19 to 5.23 GHzUS: 5.75 to 5.79 GHzDFS FrequenciesUS: 5.27 to 5.67 GHz |
| Latency | < 1 ms |
| RF Power | 23 d Bm |
| Mobile App Compatible | Yes: Android & iOS |
| Cellular Support | No |
| Video Format | HDMI (10-Bit 4:4:4/4:2:2 RGB, YCC)UHD 4K: 30/29.97/25/24/23.98 1080p: 60/59.94/50/30/29.97/25/24/23.98 1080 PsF: 30/29.97/25/24/23.98 1080i: 60/59.94/50 720p: 60/59.94/50 576p: 50 480p: 60/59.94 576i 480i: 59.94 SDI (10-Bit 4:4:4/4:2:2 RGB, YCC)1080p: 60/59.94/50/30/29.97/25/24/23.98 1080i: 60/59.94/50 720p: 60/59.94/50 576p: 50 576i: 50 480p: 60/59.94 480i: 59.94 |
|---|---|
| Audio Format | 2-Channel 24-Bit 48 k Hz |
| Timecode Support | Yes |
| Input Power | 6 to 28 VDC |
|---|---|
| Battery | Interchangeable Mount (No Plate Included) |
| Power Consumption | 9 W |
| Tripod/Accessory Mounting | Bottom1x 1/4"-20 Female |
|---|
| Status Display | Yes |
|---|---|
| Environmental Resistance | No |
| Operating Conditions | 32 to 104°F / 0 to 40°C |
| Material of Construction | Aluminum, Polycarbonate |
| Dimensions | 4.1 x 2.4 x 1.3" / 103 x 60 x 33 mm |
| Weight | 7.27 oz / 206.00 g |
| Package Weight | 3.235 lb |
|---|---|
| Box Dimensions (Lx WxH) | 16.5 x 8.5 x 3.5" |
