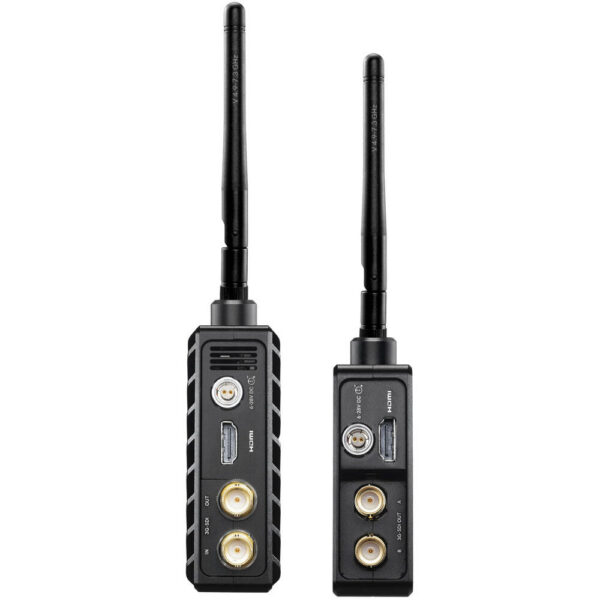

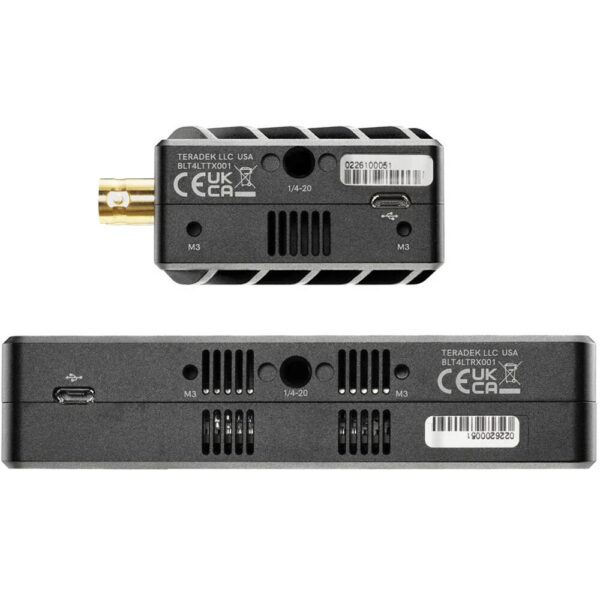

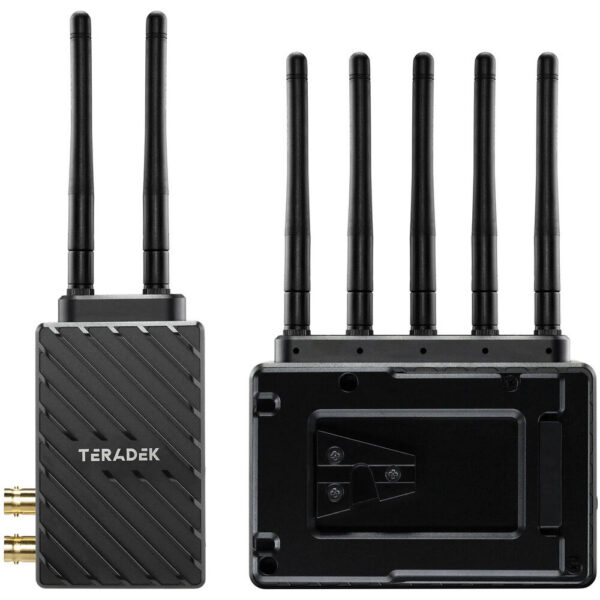

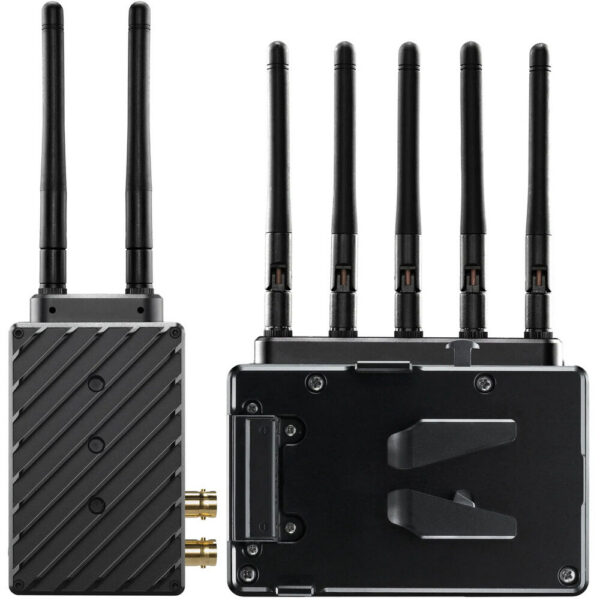

Teradek Bolt 6 LT 750 3G-SDI/HDMI Wireless RX/TX Deluxe Kit (V-Mount)
$1,577.00
In Stock
- Supports New 6 GHz Frequency Band
- Transmit Video up to 750' Line-of-Sight
- HDMI and 3G-SDI Inputs and Outputs
- Transmit up to 4K30 Video
Tracked ShippingRates shown at checkout
60-Day ReturnsOn eligible items
Expert SupportReal people, real advice
Teradek Bolt 6 LT 750 3G-SDI/HDMI Wireless RX/TX Deluxe Kit (V-Mount)
The Teradek Bolt 6 LT 750 3G-SDI/HDMI Wireless RX/TX Deluxe Kit (V-Mount) is a dependable addition to a serious kit.
Highlights
- Supports New 6 GHz Frequency Band
- Transmit Video up to 750' Line-of-Sight
- HDMI and 3G-SDI Inputs and Outputs
- Transmit up to 4K30 Video
Ordered from NIXTRONIC, it ships with full tracking worldwide and is backed by our 60-day returns on eligible items.

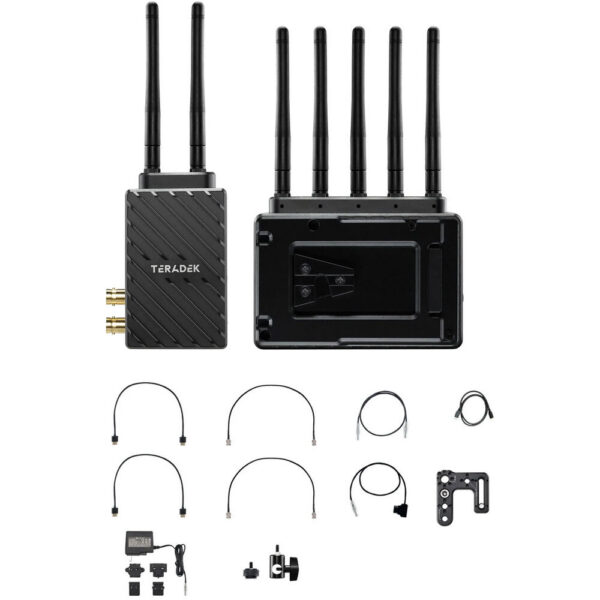

In the Box
- Teradek Bolt 6 LT 750 3G-SDI/HDMI Wireless RX/TX Deluxe Kit (V-Mount)
- Bolt 6 LT 750 3G-SDI/HDMI Transmitter
- Bolt 6 LT 750 3G-SDI/HDMI Receiver V-Mount
- 2-Pin to D-Tap Power Cable (18")
- USB 2.0 Type-A Male to Micro-USB Male Cable (39")
- 2 x HDMI Type A Male to HDMI Type A Male Cable (18")
- 2 x BNC to BNC SDI Cable (10")
- 2-Pin to 2-Pin Connector for ALEXA (18")
- AC Adapter with Cable (6')
- 7 x Antenna
- 1/4"-20 Light Stand Adapter
- Shoe Adapter
- 2 x Screw
- Wooden Camera Offset Mount
| SKU | 10-2260-V |
|---|---|
| Brand | Teradek |
| Antenna I/O | Transmitter: 2x RP-SMA Female Receiver: 5x RP-SMA Female |
|---|---|
| Video I/O | Transmitter: 1x HDMI 1.4b Input Transmitter: 1x BNC (3G-SDI) Input Transmitter: 1x BNC (3G-SDI) Loop Output Receiver: 1x HDMI 1.4b Output Receiver: 1x BNC (3G-SDI) Output |
| Embedded Audio | HDMI: 2-ChannelSDI: 2-Channel |
| Audio I/O | No |
| Power I/O | Transmitter/Receiver: 1x LEMO 2-Pin Input |
| Other I/O | Transmitter/Receiver: 1x Micro-USB Input |
| Encryption | Yes: 256-Bit AES |
| Wireless | 5G |
|---|---|
| Wireless Range | 750' / 228.6 m (Line-of-Sight) |
| Channel Bandwidth | 40 MHz, 20 MHz |
| Frequency Range | Non-DFS FrequenciesUS: 5.94 to 6.42 GHzUS: 5.19 to 5.23 GHzUS: 5.75 to 5.79 GHzDFS FrequenciesUS: 5.27 to 5.67 GHz |
| Latency | ms |
| RF Power | 23 d Bm |
| Mobile App Compatible | Yes: Android & iOS |
| Cellular Support | No |
| Video Format | HDMI (10-Bit 4:4:4/4:2:2 RGB, YCC)UHD 4K: 30/29.97/25/24/23.98 1080p: 60/59.94/50/30/29.97/25/24/23.98 1080 PsF: 30/29.97/25/24/23.98 1080i: 60/59.94/50 720p: 60/59.94/50 576p: 50 480p: 60/59.94 576i: 50 480i: 59.94 SDI (10-Bit 4:4:4/4:2:2 RGB, YCC)1080p: 30/29.97/25/24/23.98 1080i: 60/59.94/50 720p: 60/59.94/50 576p: 50 576i: 50 480p: 60/59.94 480i: 59.94 |
|---|---|
| Audio Format | 2-Channel 24-Bit 48 k Hz |
| Timecode Support | Yes |
| Input Power | 6 to 28 VDC |
|---|---|
| Battery | Receiver: 1x V-Mount on Fixed Plate |
| Power Consumption | Transmitter: 9 WReceiver: 11 W |
| Tripod/Accessory Mounting | 1x 1/4"-20 Female1x 3/8"-16 Female |
|---|
| Environmental Resistance | No |
|---|---|
| Operating Conditions | 32 to 104°F / 0 to 40°C |
| Material of Construction | Aluminum, Polycarbonate |
| Dimensions | Transmitter: 4.1 x 2.4 x 1.3" / 103 x 60 x 33 mm Receiver: 4.8 x 3.7 x 1.1" / 122 x 94 x 27 mm |
| Weight | Transmitter: 7.27 oz / 206.00 g Receiver: 10.3 oz / 292.00 g |
| Package Weight | 5.7 lb |
|---|---|
| Box Dimensions (Lx WxH) | 12.5 x 8.4 x 7.9" |
