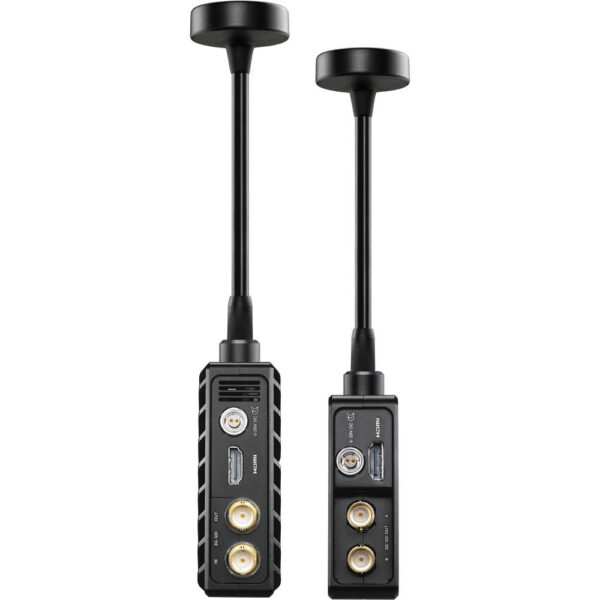

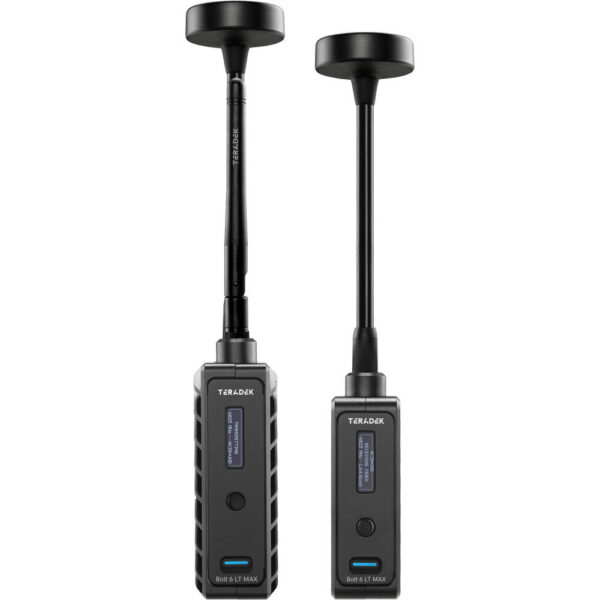

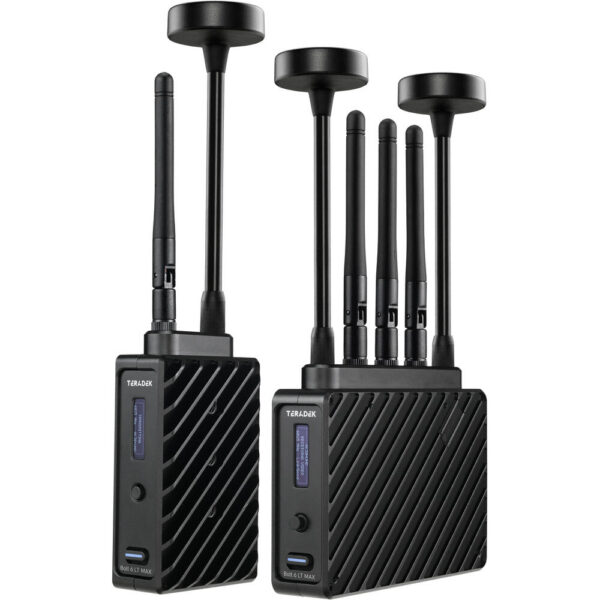

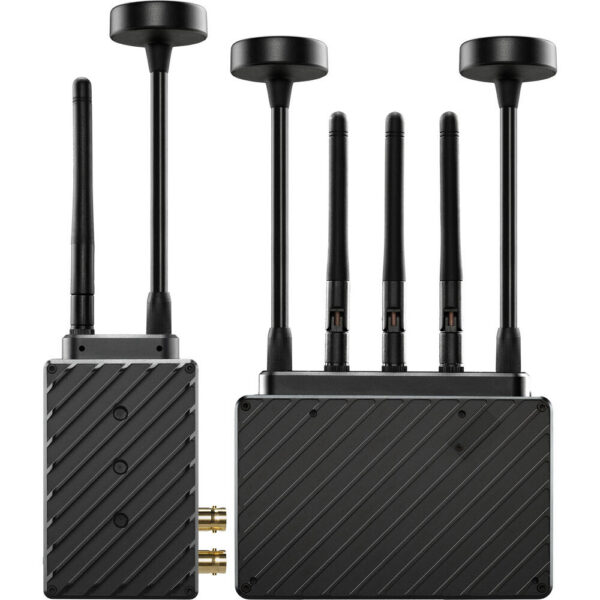

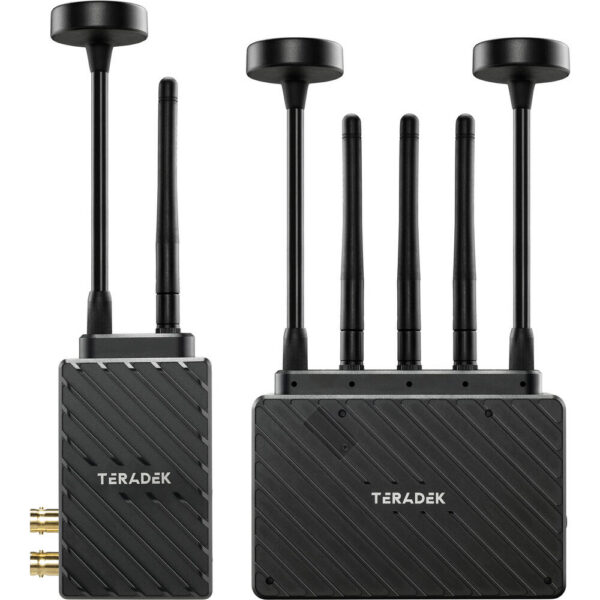

Teradek Bolt 6 LT MAX 3G-SDI/HDMI Wireless Transmitter and Receiver Kit

Name: Teradek Bolt 6 LT MAX 3G-SDI/HDMI Wireless Transmitter and Receiver Kit
Brand: Teradek
SKU: 10-2279
Price: 7913.00 USD
Availability: InStock

(0)

Be the first to review SKU: 10-2279

$7,913.00

In Stock

Supports New 6 GHz Frequency Band
Bolt 6 LT MAX Transmitter & Receiver
Transmits up to 5000' Line of Sight
Integrated Flexible H Antennas

Tracked ShippingRates shown at checkout
60-Day ReturnsOn eligible items
Expert SupportReal people, real advice

Teradek Bolt 6 LT MAX 3G-SDI/HDMI Wireless Transmitter and Receiver Kit

Designed for people who rely on their gear, the Teradek Bolt 6 LT MAX 3G-SDI/HDMI Wireless Transmitter and Receiver Kit delivers solid, consistent performance.

Highlights

Supports New 6 GHz Frequency Band
Bolt 6 LT MAX Transmitter & Receiver
Transmits up to 5000' Line of Sight
Integrated Flexible H Antennas

Every order from NIXTRONIC ships tracked worldwide and is covered by our 60-day return policy on eligible items.

In the Box

Teradek Bolt 6 LT MAX 3G-SDI/HDMI Wireless Transmitter and Receiver Kit
Bolt 6 LT MAX 3G-SDI/HDMI Transmitter
Bolt 6 LT MAX 3G-SDI/HDMI Receiver
2-Pin to D-Tap Power Cable (18")
USB 2.0 Type-A Male to Micro-USB Male Cable (39")
2 x HDMI Type A Male Cable (18")
2 x BNC SDI Cable (10")
AC Adapter with Cable (6')
5 x Standard Antenna
3 x Mushroom Antenna
1/4"-20 Light Stand Adapter
Shoe Adapter
Carry Case

SKU	10-2279
Brand	Teradek

Inputs/Outputs

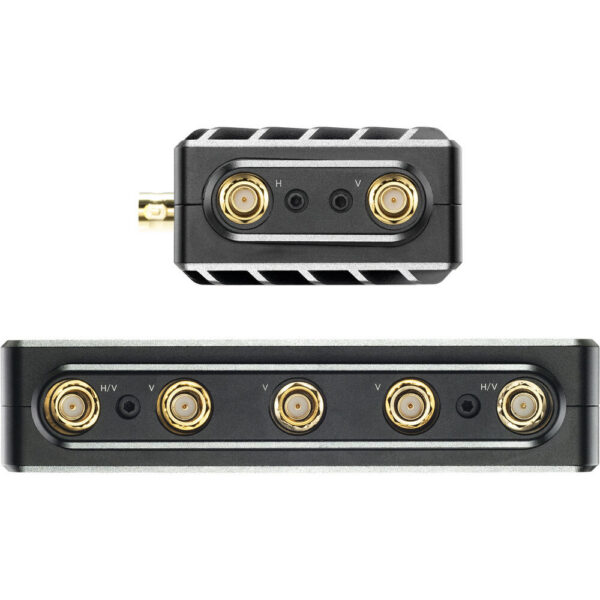

Antenna I/O	Transmitter: 2x RP-SMA Female Receiver: 5x RP-SMA Female
Video I/O	Transmitter: 1x HDMI 1.4b Input Transmitter: 1x BNC (3G-SDI) Input Transmitter: 1x BNC (3G-SDI) Loop Output Receiver: 1x HDMI 1.4b Output Receiver: 1x BNC (3G-SDI) Output
Embedded Audio	HDMI: 2-ChannelSDI: 2-Channel
Audio I/O	No
Power I/O	Transmitter/Receiver: 1x LEMO 2-Pin Input
Other I/O	Transmitter/Receiver: 1x Micro-USB Input
Encryption	Yes: 256-Bit AES

Wireless
Wireless	Bluetooth
Wireless Range	5000' / 1524 m (Line-of-Sight)
Channel Bandwidth	40 MHz
Frequency Range	Non-DFS FrequenciesUS: 5.94 to 6.42 GHzUS: 5.19 to 5.23 GHzUS: 5.75 to 5.79 GHzDFS FrequenciesUS: 5.27 to 5.67 GHz
Latency	ms
RF Power	23 d Bm
Mobile App Compatible	Yes: Android & iOSApp Name: Bolt App
Cellular Support	No

Format Support
Video Format	HDMI (10-Bit 4:4:4/4:2:2 RGB, YCC)UHD 4K: 30/29.97/25/24/23.98 1080p: 60/59.94/50/30/29.97/25/24/23.98 1080 PsF: 30/29.97/25/24/23.98 1080i: 60/59.94/50 720p: 60/59.94/50 576p: 50 480p: 60/59.94 576i 480i: 59.94 SDI (10-Bit 4:4:4/4:2:2 RGB, YCC)1080p: 30/29.97/25/24/23.98 1080i: 60/59.94/50 720p: 60/59.94/50 576p: 50 576i: 50 480p: 60/59.94 480i: 59.94
Audio Format	Not Specified by Manufacturer
Timecode Support	Yes

Power
Input Power	6 to 28 VDC
Battery	Transmitter/Receiver: Interchangeable Mount (No Plate Included)
Power Consumption	Transmitter: 9 WReceiver: 11 W

Mounting

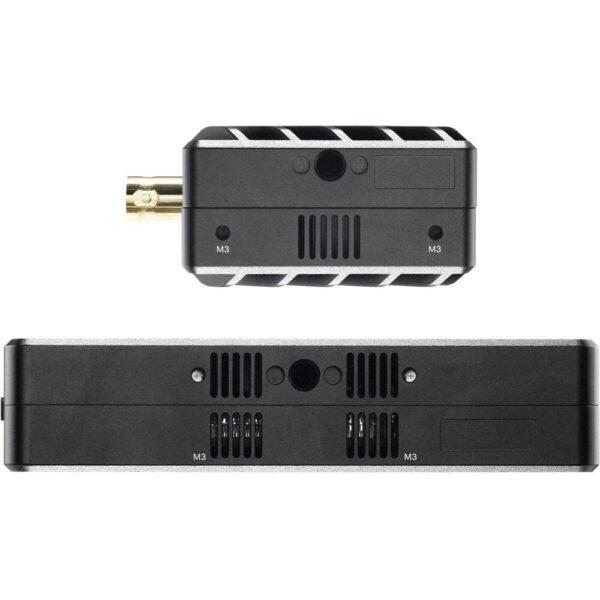

Tripod/Accessory Mounting	1x 1/4"-20 Female1x 3/8"-16 Female

General
Status Display	On Transmitter & Receiver
Environmental Resistance	No
Operating Conditions	32 to 104°F / 0 to 40°C
Material of Construction	Aluminum, Polycarbonate
Dimensions	Transmitter: 4.1 x 2.4 x 1.3" / 103 x 60 x 33 mm Receiver: 4.8 x 3.7 x 1.1" / 122 x 94 x 27 mm
Weight	Transmitter: 7.27 oz / 206.00 g Receiver: 10.3 oz / 292.00 g
