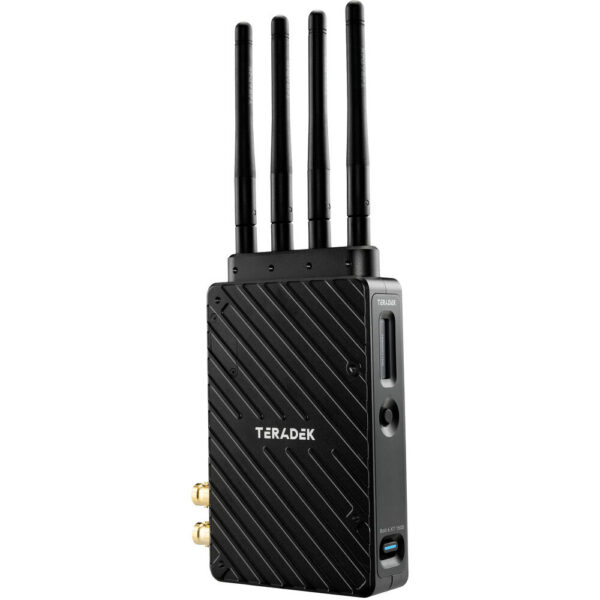

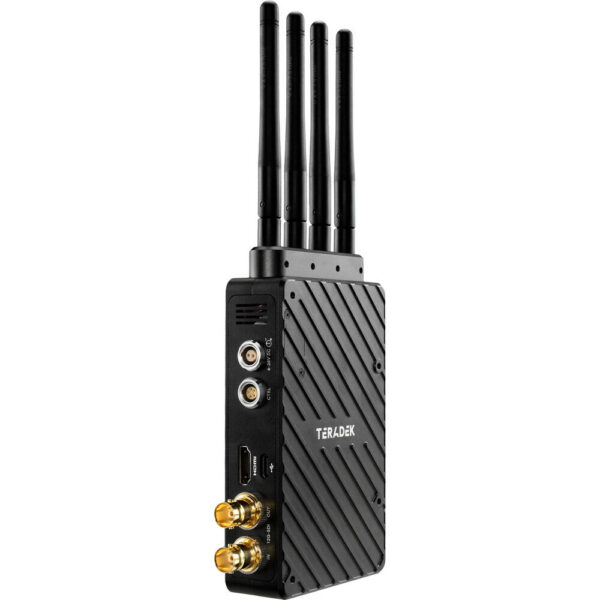

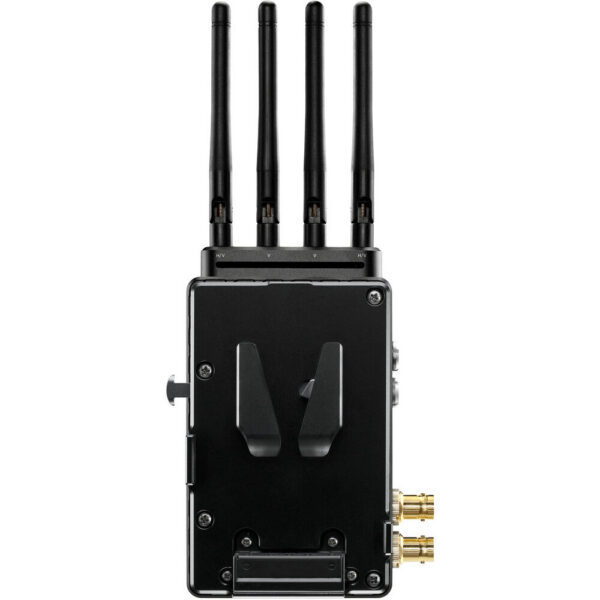

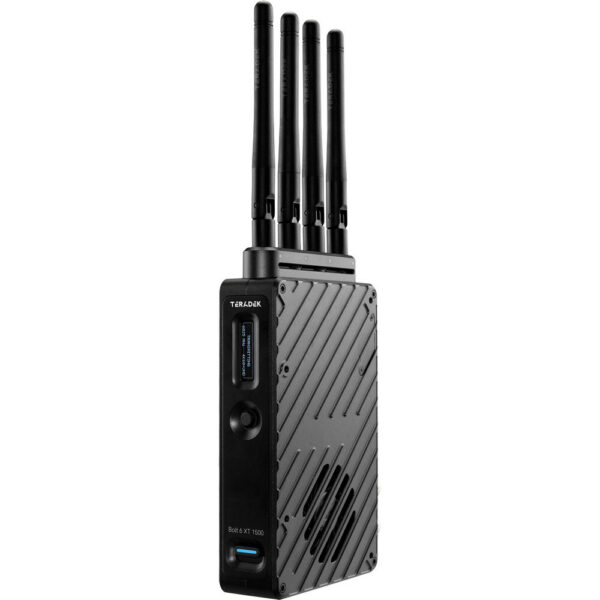

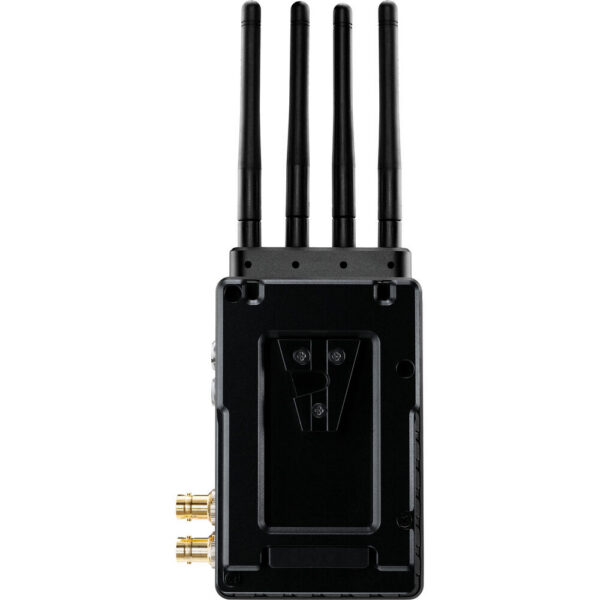

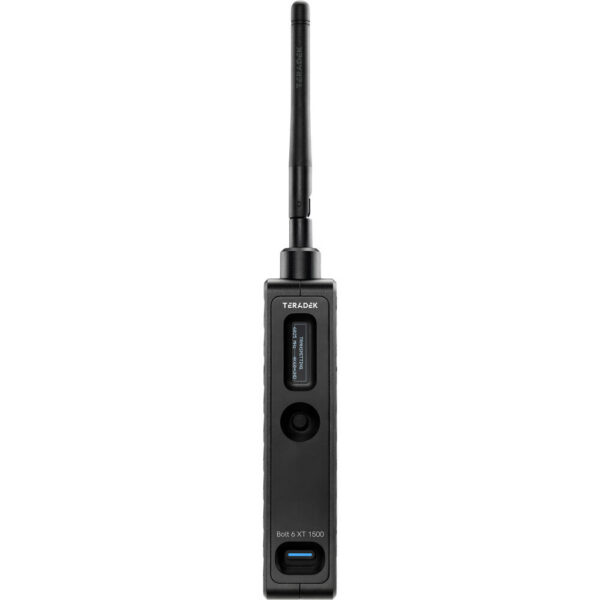

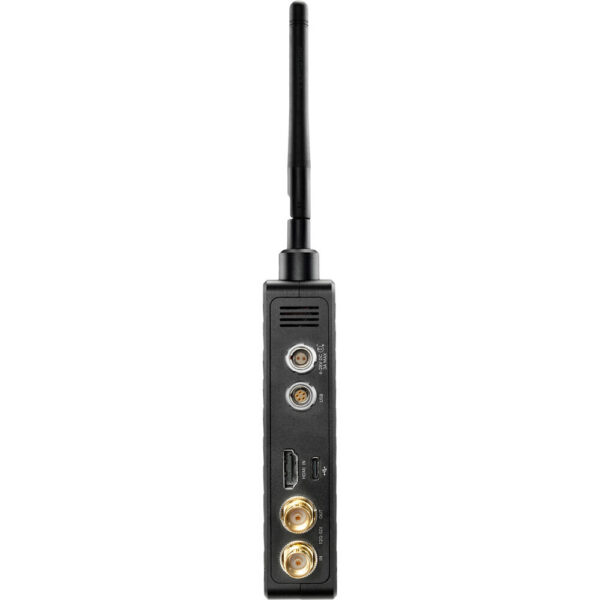

Teradek Bolt 6 XT 1500 12G-SDI/HDMI Wireless Transmitter (V-Mount)
$3,755.00
In Stock
- Supports New 6 GHz Frequency Band
- Transmit Video up to 1500' Line of Sight
- 12G-SDI and HDMI Input, 12G-SDI Output
- V-Mount Battery Plate
Tracked ShippingRates shown at checkout
60-Day ReturnsOn eligible items
Expert SupportReal people, real advice
Teradek Bolt 6 XT 1500 12G-SDI/HDMI Wireless Transmitter (V-Mount)
Designed for people who rely on their gear, the Teradek Bolt 6 XT 1500 12G-SDI/HDMI Wireless Transmitter (V-Mount) delivers solid, consistent performance.
Highlights
- Supports New 6 GHz Frequency Band
- Transmit Video up to 1500' Line of Sight
- 12G-SDI and HDMI Input, 12G-SDI Output
- V-Mount Battery Plate
Ordered from NIXTRONIC, it ships with full tracking worldwide and is backed by our 60-day returns on eligible items.
In the Box
- Teradek Bolt 6 XT 1500 12G-SDI/HDMI Wireless Transmitter (V-Mount)
- 2 x V-Mount Battery Plate
- 2-Pin to D-Tap Power Cable (18")
- USB Type-A to USB Type-C Cable (3')
- Ultrathin HDMI Type A Cable (18")
- BNC 12G-SDI Cable (18")
- AC Adapter with Cable (6')
- 4 x Antenna
- Battery Cover
- 2 x Screw
| SKU | 10-2311-V |
|---|---|
| Brand | Teradek |
| Antenna I/O | 4x RP-SMA Female |
|---|---|
| Video I/O | 1x HDMI 2.0 Input 1x BNC (12G-SDI) Input 1x BNC (12G-SDI) Loop Output |
| Embedded Audio | HDMI: 2-ChannelSDI: 2-Channel |
| Audio I/O | No |
| Power I/O | 1x LEMO 2-Pin (28 VDC) Input |
| Other I/O | 1x USB-C Input 1x LEMO 5-Pin 2.0 Output |
| Encryption | Yes: 256-Bit AES |
| Wireless | 5G |
|---|---|
| Wireless Range | 1500' / 457.2 m (Line-of-Sight) |
| Channel Bandwidth | 40 MHz, 20 MHz |
| Frequency Range | Non-DFS FrequenciesUS: 5.94 to 6.42 GHzUS: 5.19 to 5.23 GHzUS: 5.75 to 5.79 GHzDFS FrequenciesUS: 5.27 to 5.67 GHz |
| Latency | < 1 ms |
| RF Power | 23 d Bm |
| Mobile App Compatible | No |
| Cellular Support | No |
| Video Format | HDMI (10-Bit 4:4:4/4:2:2 RGB, YCC)DCI 4K: 60/59.94/50/30/29.97/25/24/23.98 UHD 4K: 60/59.94/50/30/29.97/25/24/23.98 1080p: 60/59.94/50/30/29.97/25/24/23.98 1080 PsF: 30/29.97/25/24/23.98 1080i: 60/59.94/50 720p: 60/59.94/50 576p: 50 480p: 60/59.94 576i: 50 480i: 59.94 SDI (10-Bit 4:4:4/4:2:2)DCI 4K: 60/59.94/50/30/29.97/25/24/23.98 UHD 4K: 60/59.94/50/30/29.97/25/24/23.98 1080p: 60/59.94/50/30/29.97/25/24/23.98 1080i: 60/59.94/50 720p: 60/59.94/50 576p: 50 576i: 50 480p: 60/59.94 480i: 59.94 |
|---|---|
| Audio Format | 2-Channel 24-Bit 48 k Hz |
| Timecode Support | Yes |
| Input Power | 6 to 28 VDC |
|---|---|
| Battery | 1x V-Mount on Included, Interchangeable Plate |
| Power Consumption | 20 W |
| Tripod/Accessory Mounting | 1x 1/4"-20 Female |
|---|
| Environmental Resistance | No |
|---|---|
| Operating Conditions | 32 to 104°F / 0 to 40°C |
| Material of Construction | Aluminum, Polycarbonate |
| Dimensions | 5.2 x 3.6 x 1.1" / 132 x 91 x 27 mm (Excluding Battery Plate) |
| Weight | 12.13 oz / 344.00 g, Excluding Battery Plate |
| Package Weight | 4.2 lb |
|---|---|
| Box Dimensions (Lx WxH) | 16.2 x 9.1 x 3.6" |
