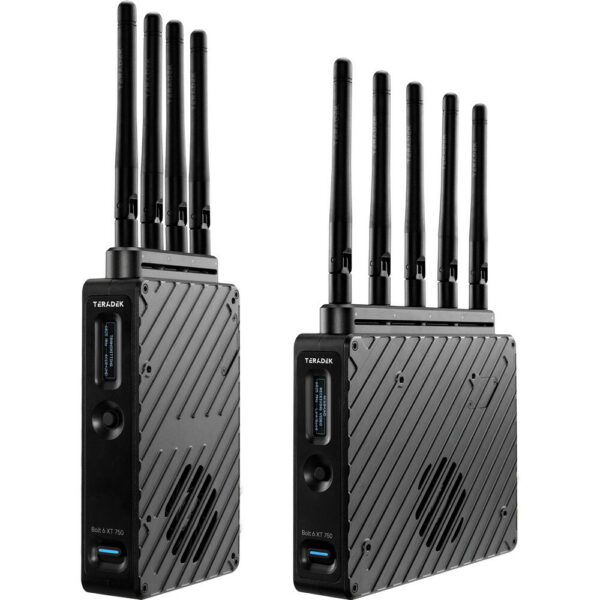

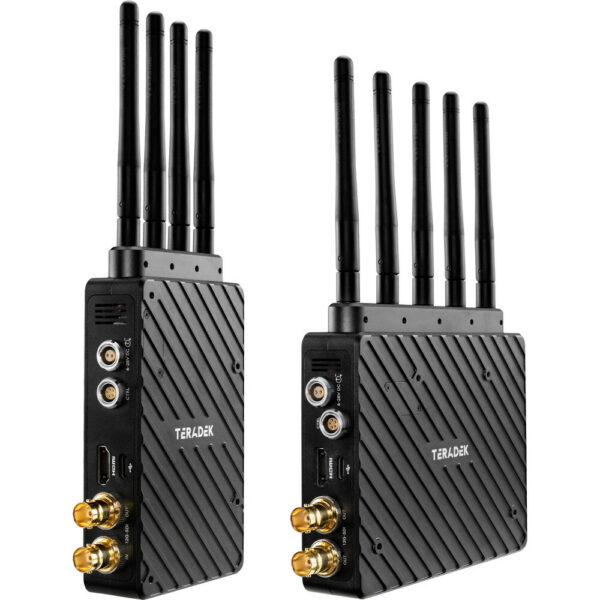

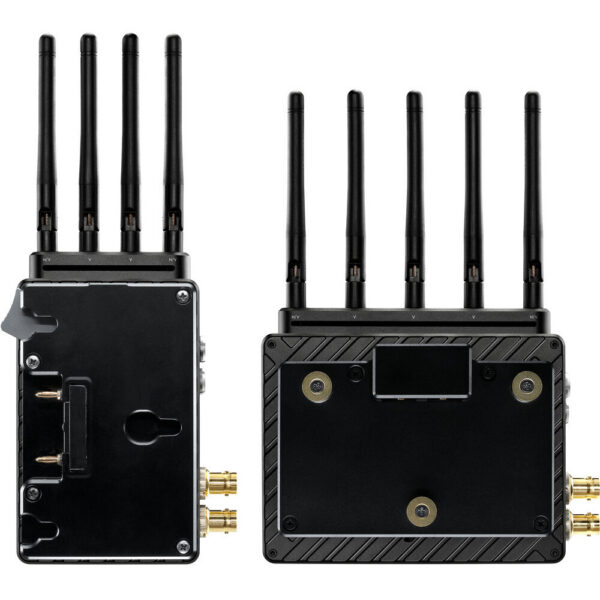

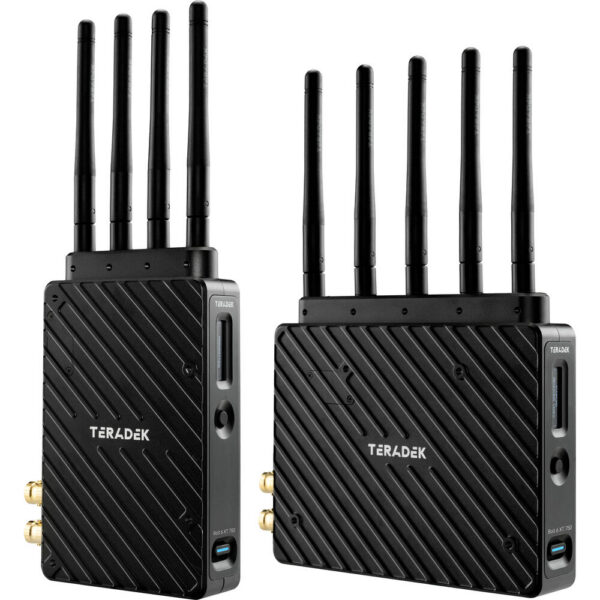

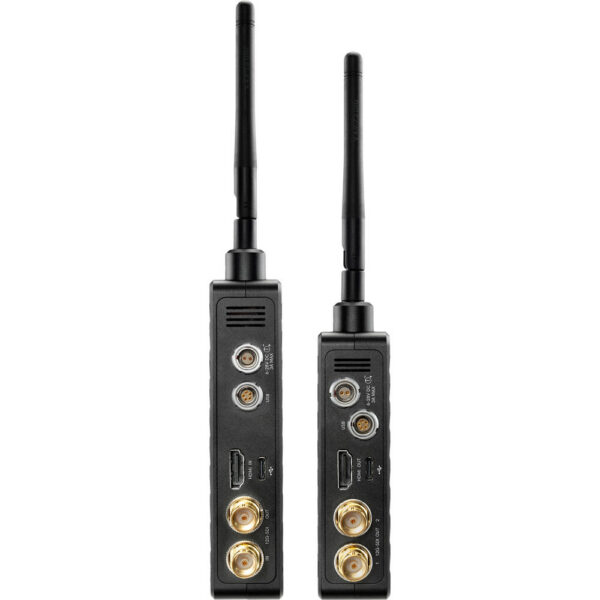

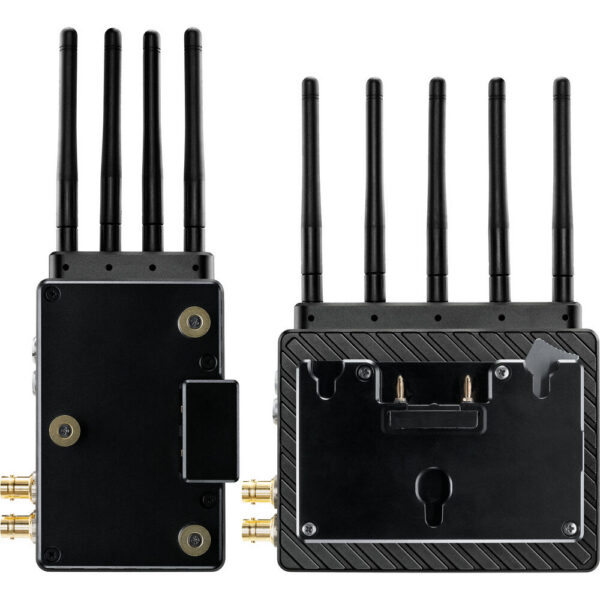

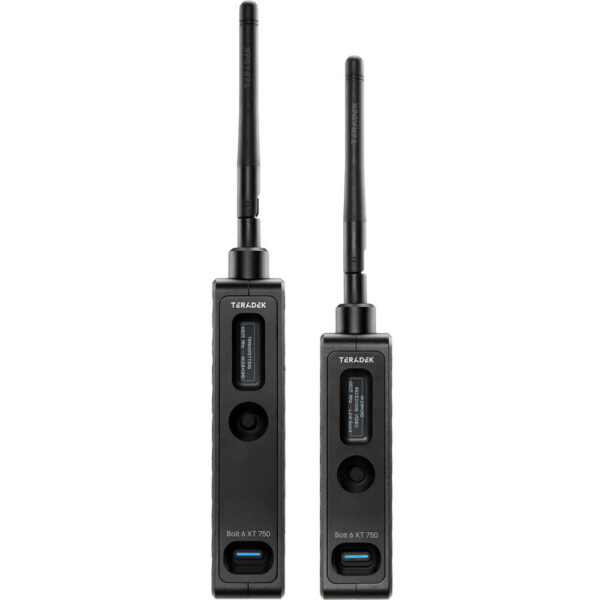

Teradek Bolt 6 XT 750 12G-SDI/HDMI Wireless RX/TX Deluxe Kit (Gold Mount)
$3,821.00
In Stock
- Supports New 6 GHz Frequency Band
- Transmit Video up to 750' Line of Sight
- HDMI and 12G-SDI Inputs and Outputs
- Transmit up to 4K60 Video
Tracked ShippingRates shown at checkout
60-Day ReturnsOn eligible items
Expert SupportReal people, real advice
Teradek Bolt 6 XT 750 12G-SDI/HDMI Wireless RX/TX Deluxe Kit (Gold Mount)
The Teradek Bolt 6 XT 750 12G-SDI/HDMI Wireless RX/TX Deluxe Kit (Gold Mount) is built to support demanding work, in the studio and on location.
Highlights
- Supports New 6 GHz Frequency Band
- Transmit Video up to 750' Line of Sight
- HDMI and 12G-SDI Inputs and Outputs
- Transmit up to 4K60 Video
Every order from NIXTRONIC ships tracked worldwide and is covered by our 60-day return policy on eligible items.
In the Box
- Teradek Bolt 6 XT 750 12G-SDI/HDMI Wireless RX/TX Deluxe Kit (Gold Mount)
- Bolt 6 XT 750 12G-SDI/HDMI Transmitter (Gold Mount)
- Bolt 6 XT 750 12G-SDI/HDMI Receiver (Gold Mount)
- 2 x 2-Pin to D-Tap Power Cable (18")
- Micro-USB to USB Type-A Cable (36")
- 2 x HDMI Type A to HDMI Type A Cable (18")
- 2 x BNC to BNC Cable (18")
- 2-Pin to 2-Pin Cable for ALEXA (18")
- 18W AC Adapter with Cable (6')
- 2 x Bolt Battery Cover (Front)
- 2 x Bolt Battery Cover (Rear)
- 1/4"-20 Light Stand Adapter
- Shoe Adapter
- Screw Set
- Allen Wrench
- Wooden Camera Monitor Mount
- Carry Case
- 9 x Antenna
| SKU | 10-2300-G |
|---|---|
| Brand | Teradek |
| Antenna I/O | Transmitter: 4x RP-SMA Female Receiver: 5x RP-SMA Female |
|---|---|
| Video I/O | Transmitter: 1x HDMI 2.0 Input Transmitter: 1x BNC (12G-SDI) Input Transmitter: 1x BNC (12G-SDI) Loop Output Receiver: 1x HDMI 2.0 Output Receiver: 1x BNC (12G-SDI) Output |
| Embedded Audio | SDI: 2-ChannelHDMI: 2-Channel |
| Audio I/O | No |
| Power I/O | Transmitter/Receiver: 1x LEMO 2-Pin Input |
| Other I/O | Transmitter/Receiver: 1x Micro-USB Input |
| Encryption | Yes: 256-Bit AES |
| Wireless | 5G |
|---|---|
| Wireless Range | 750' / 228.6 m (Line-of-Sight) |
| Channel Bandwidth | 40 MHz, 20 MHz |
| Frequency Range | Non-DFS FrequenciesUS: 5.94 to 6.42 GHzUS: 5.19 to 5.23 GHzUS: 5.75 to 5.79 GHzDFS FrequenciesUS: 5.27 to 5.67 GHz |
| Latency | ms |
| RF Power | 23 d Bm |
| Mobile App Compatible | Yes: Android & iOS |
| Cellular Support | No |
| Video Format | HDMI (8/10-Bit 4:4:4/4:2:2 RGB, YCC)DCI 4K: 60/59.94/50/30/29.97/25/24/23.98 UHD 4K: 60/59.94/50/30/29.97/25/24/23.98 1080p: 60/59.94/50/30/29.97/25/24/23.98 1080 PsF: 30/29.97/25/24/23.98 1080i: 60/59.94/50 720p: 60/59.94/50 576p: 50 576i: 50 480p: 60/59.94 480i: 59.94 SDI (8/10-Bit 4:4:4/4:2:2 RGB, YCC)DCI 4K: 60/59.94/50/30/29.97/25/24/23.98 UHD 4K: 60/59.94/50/30/29.97/25/24/23.98 1080p: 60/59.94/50/30/29.97/25/24/23.98 1080i: 60/59.94/50 720p: 60/59.94/50 576p: 50 576i: 50 480p: 59.94/50 480i: 59.94 |
|---|---|
| Audio Format | 2-Channel 24-Bit 48 k Hz LPCM Audio |
| Wireless Video Compression | Uncompressed |
| Timecode Support | Yes |
| Input Power | 28 VDC |
|---|---|
| Battery | Receiver: 1x Gold Mount on Fixed Plate |
| Power Consumption | Transmitter: 20 WReceiver: 18 W |
| Tripod/Accessory Mounting | 1x 1/4"-20 Female1x 3/8"-16 Female |
|---|
| Environmental Resistance | No |
|---|---|
| Operating Conditions | 32 to 104°F / 0 to 40°C |
| Material of Construction | Aluminum |
| Dimensions | Transmitter: 5.2 x 3.6 x 1.1" / 132 x 91 x 27 mm Receiver: 5.4 x 4.4 x 1.1" / 138 x 112 x 27 mm |
| Weight | Transmitter: 12.13 oz / 344.00 g Receiver: 15.17 oz / 430.00 g |
| Package Weight | 10.235 lb |
|---|---|
| Box Dimensions (Lx WxH) | 14.6 x 10.4 x 7.2" |
