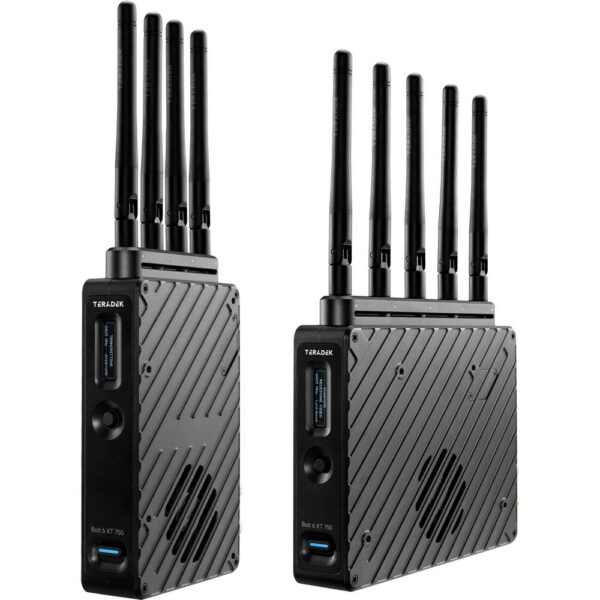

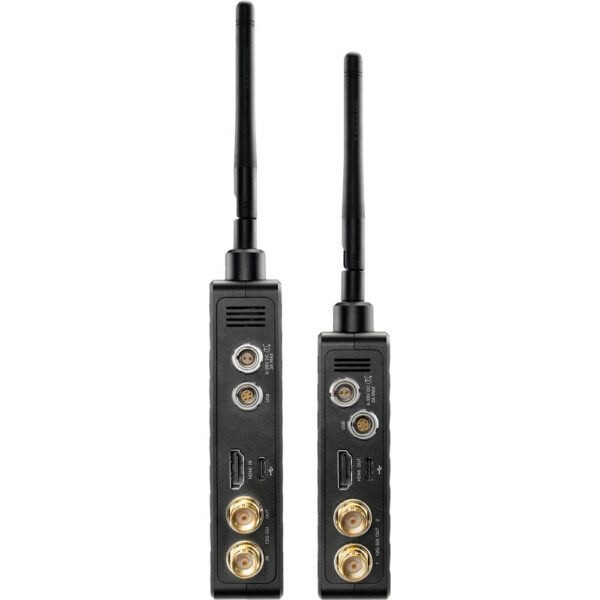

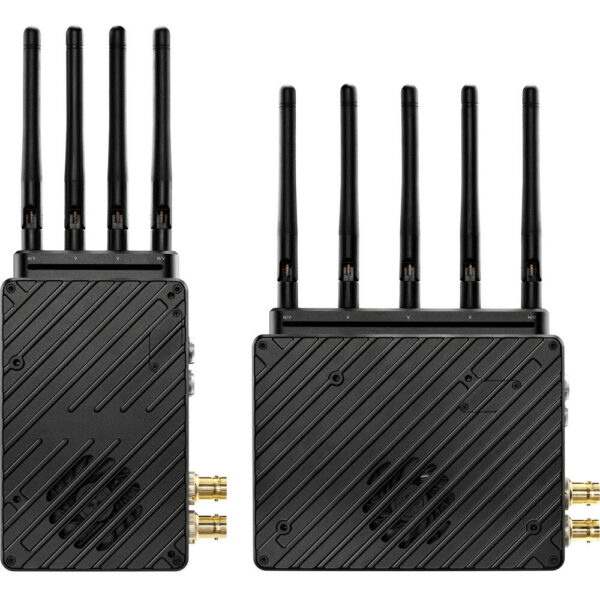

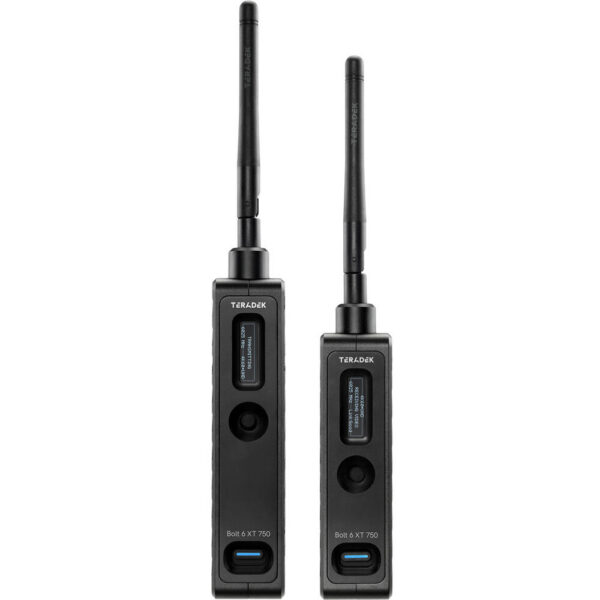

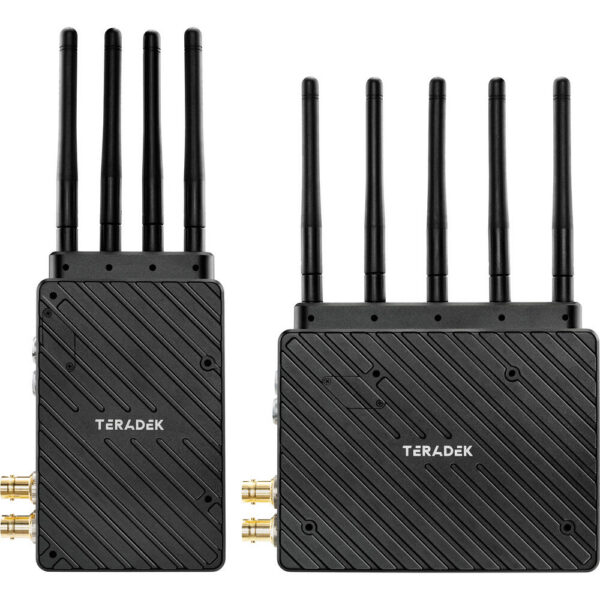

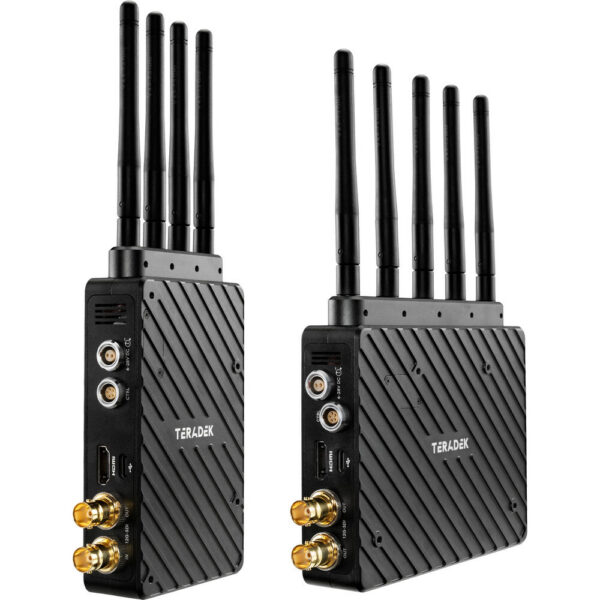

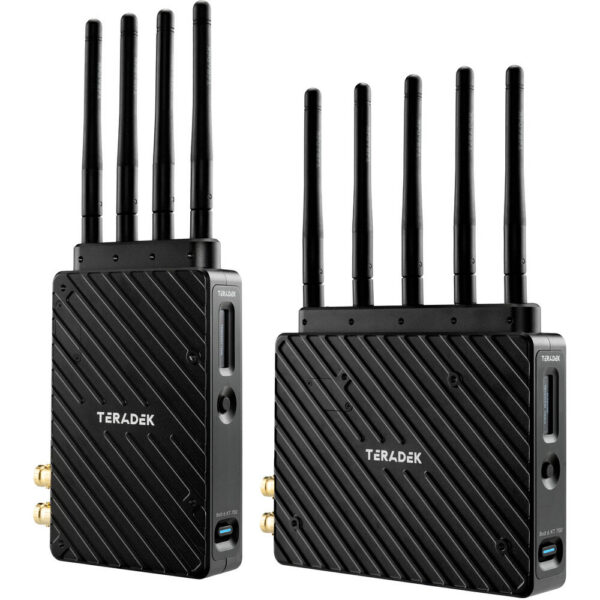

Teradek Bolt 6 XT 750 12G-SDI/HDMI Wireless Transmitter/Receiver Kit

Name: Teradek Bolt 6 XT 750 12G-SDI/HDMI Wireless Transmitter/Receiver Kit
Brand: Teradek
SKU: 10-2300
Price: 3293.00 USD
Availability: InStock

(0)

Be the first to review SKU: 10-2300

$3,293.00

In Stock

12G-SDI/HDMI Transmitter & Receiver Set
Supports New 6 GHz Frequency Band
Transmit Video up to 750' Line of Sight
Smaller, Lighter, 50% Quieter

Tracked ShippingRates shown at checkout
60-Day ReturnsOn eligible items
Expert SupportReal people, real advice

Teradek Bolt 6 XT 750 12G-SDI/HDMI Wireless Transmitter/Receiver Kit

The Teradek Bolt 6 XT 750 12G-SDI/HDMI Wireless Transmitter/Receiver Kit is built to support demanding work, in the studio and on location.

Highlights

12G-SDI/HDMI Transmitter & Receiver Set
Supports New 6 GHz Frequency Band
Transmit Video up to 750' Line of Sight
Smaller, Lighter, 50% Quieter

Ordered from NIXTRONIC, it ships with full tracking worldwide and is backed by our 60-day returns on eligible items.

In the Box

Teradek Bolt 6 XT 750 12G-SDI/HDMI Wireless Transmitter/Receiver Kit
Bolt 6 XT 750 12G-SDI/HDMI Transmitter
Bolt 6 XT 750 12G-SDI/HDMI Receiver
2 x 2-Pin to D-Tap Power Cable (18")
USB 2.0 Type-A Male to Type-C Male Cable (39")
2 x HDMI Type A Male to HDMI Type A Male Cable (18")
2 x BNC to BNC 12G-SDI Cable (18")
AC Adapter with Cable (6')
9 x Antenna
Light Stand Adapter
Shoe Adapter
Carry Case

SKU	10-2300
Brand	Teradek

Inputs/Outputs
Antenna I/O	Transmitter: 4x RP-SMA Female Receiver: 5x RP-SMA Female
Video I/O	Transmitter: 1x HDMI 2.0 Input Transmitter: 1x BNC (12G-SDI) Input Transmitter: 1x BNC (12G-SDI) Loop Output Receiver: 1x HDMI 2.0 Output Receiver: 1x BNC (12G-SDI) Output
Embedded Audio	HDMI: 2-ChannelSDI
Audio I/O	No
Power I/O	Transmitter/Receiver: 1x LEMO 2-Pin (28 VDC) Input
Other I/O	Transmitter/Receiver: 1x USB-C 2.0 Input Transmitter/Receiver: 1x LEMO 5-Pin 2.0 Output
Encryption	Yes: 256-Bit AES

Wireless
Wireless	5G
Wireless Range	750' / 228.6 m (Line-of-Sight)
Channel Bandwidth	40 MHz
Frequency Range	Non-DFS FrequenciesUS: 5.94 to 6.42 GHzUS: 5.19 to 5.23 GHzUS: 5.75 to 5.79 GHzDFS FrequenciesUS: 5.27 to 5.67 GHz
Latency	ms
RF Power	23 d Bm
Mobile App Compatible	Yes: Android & iOS
Cellular Support	No

Format Support
Video Format	HDMI (10-Bit 4:4:4/4:2:2 RGB, YCC)DCI 4K: 60/59.94/50/30/29.97/25/24/23.98 UHD 4K: 60/59.94/50/30/29.97/25/24/23.98 1080p: 60/59.94/50/30/29.97/25/24/23.98 1080 PsF: 30/29.97/25/24/23.98 1080i: 60/59.94/50 720p: 60/59.94/50 576p: 50 480p: 60/59.94 576i: 50 480i: 59.94 SDI (10-Bit 4:4:4/4:2:2 RGB, YCC)DCI 4K: 60/59.94/50/30/29.97/25/24/23.98 UHD 4K: 60/59.94/50/30/29.97/25/24/23.98 1080p: 60/59.94/50/30/29.97/25/24/23.98 1080i: 60/59.94/50 720p: 60/59.94/50 576p: 50 576i: 50 480p: 60/59.94 480i: 59.94
Audio Format	2-Channel 24-Bit 48 k Hz
Timecode Support	Yes

Power
Input Power	6 to 28 VDC
Battery	Transmitter/Receiver: Interchangeable Mount (No Plate Included)
Power Consumption	Transmitter: 20 WReceiver: 18 W

Mounting
Tripod/Accessory Mounting	Transmitter/Receiver, Bottom1x 1/4"-20 Female

General
Status Display	On Transmitter & Receiver
Environmental Resistance	No
Operating Conditions	32 to 104°F / 0 to 40°C
Material of Construction	Aluminum, Polycarbonate
Dimensions	Transmitter: 5.2 x 3.6 x 1.1" / 132 x 91 x 27 mm Receiver: 5.5 x 4.4 x 1.1" / 139 x 112 x 27 mm
Weight	Transmitter: 12.13 oz / 344.00 g Receiver: 15.17 oz / 430.00 g
