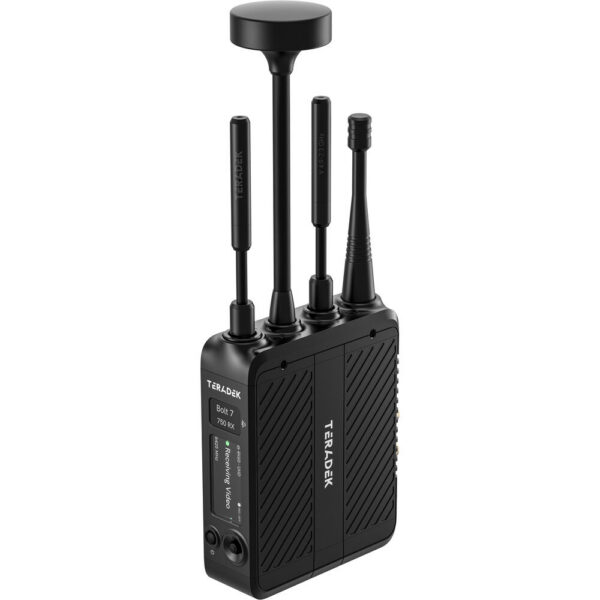

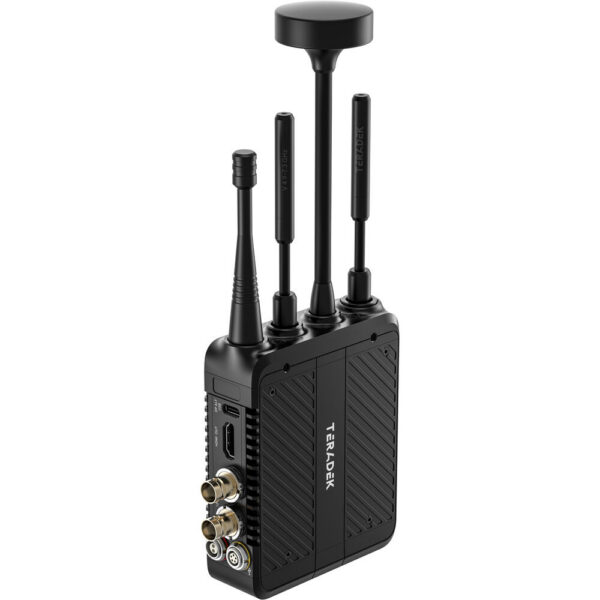

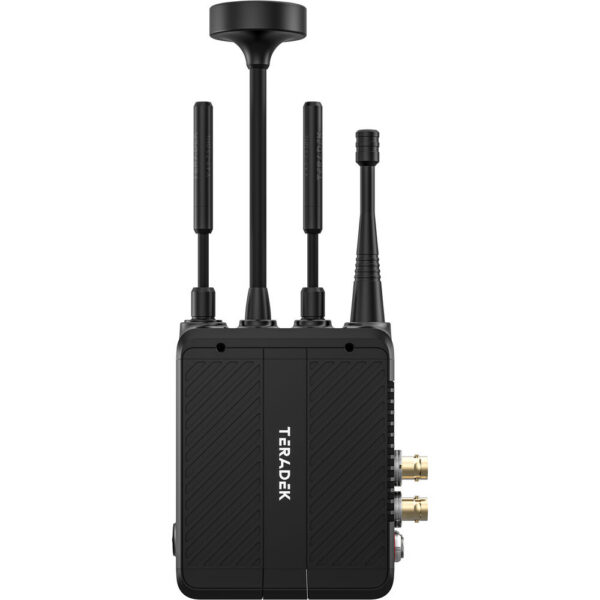

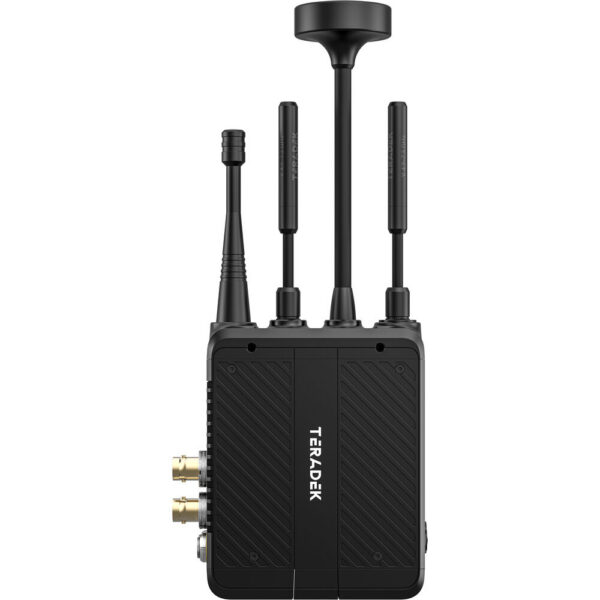

Teradek Bolt 7 RX Zero-Delay 4K Wireless Video Receiver (750')

Name: Teradek Bolt 7 RX Zero-Delay 4K Wireless Video Receiver (750')
Brand: Teradek
SKU: 10-2702
Price: 2105.00 USD
Availability: InStock

(0)

Be the first to review SKU: 10-2702

$2,105.00

In Stock

Embedded Audio: HDMI/SDI: 2-Channel
Wireless: 5.1 GHz Radio/RF / 5.8 GHz Radio/RF
Latency: 0.001 ms
Video Format: HDMIUHD 4K: 60/59.94/50/30/29.97/25/24/23.98 1080p: 60/59.94/50/30/29.97/25/24/23.98 1080

Tracked ShippingRates shown at checkout
60-Day ReturnsOn eligible items
Expert SupportReal people, real advice

Teradek Bolt 7 RX Zero-Delay 4K Wireless Video Receiver (750')

The Teradek Bolt 7 RX Zero-Delay 4K Wireless Video Receiver (750') is built to support demanding work, in the studio and on location.

Ordered from NIXTRONIC, it ships with full tracking worldwide and is backed by our 60-day returns on eligible items.

SKU	10-2702
Brand	Teradek

Inputs/Outputs

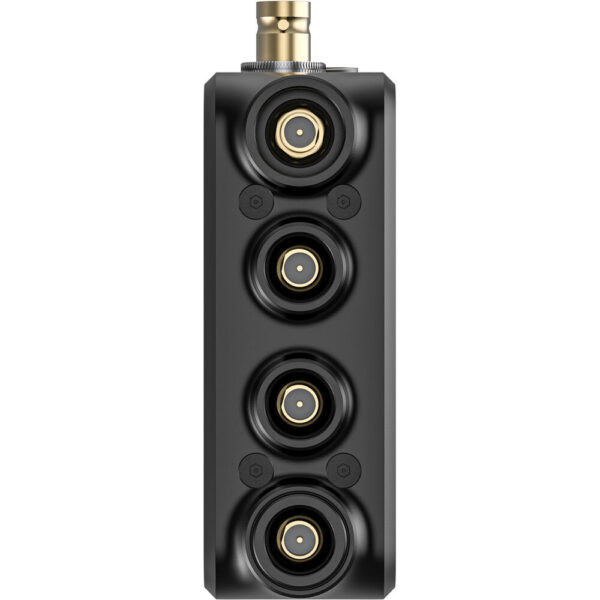

Antenna I/O	4x RP-SMA
Video I/O	2x BNC (12G-SDI) Output 1x HDMI 2.0 Output 1x USB-C DP-Alt Mode Output
Embedded Audio	HDMI/SDI: 2-Channel
Audio I/O	No
Power I/O	1x LEMO 2-Pin (28 VDC) Input
Other I/O	1x LEMO 5-Pin USB
Encryption	Yes: 256-Bit AES

Wireless
Wireless	5.1 GHz Radio/RF / 5.8 GHz Radio/RF
Wireless Range	750' / 228.6 m
Frequency Range	5.19 to 5.23 GHz5.27 to 5.67 GHz5.755 to 5.795 GHz5.945 to 6.425 GHz
Latency	0.001 ms
RF Power	21 d Bm
Mobile App Compatible	Yes: Android & iOS
Cellular Support	No

Format Support
Video Format	HDMIUHD 4K: 60/59.94/50/30/29.97/25/24/23.98 1080p: 60/59.94/50/30/29.97/25/24/23.98 1080 PsF: 30/29.97/25/24/23.98 1080i: 60/59.94/50 576p 576i 480p 480i
Audio Format	24-Bit 48 k Hz PCM Audio
Timecode Support	Yes

Power
Input Power	6 to 28 VDC
Battery	No
Power Consumption	18 W

Mounting

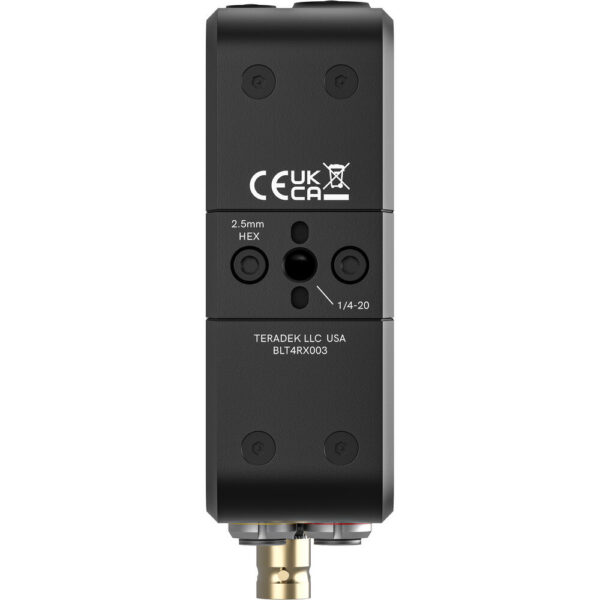

Tripod/Accessory Mounting	Anti-Twist 1/4"-20 Female Anti-Twist 3/8"-16 Female

General
Status Display	Yes
Operating Conditions	32 to 104°F / 0 to 40°C
Material of Construction	Aluminum, Plastic
Dimensions	4.4 x 3.5 x 1.3" / 112 x 88 x 32 mm
Weight	1.02 lb / 463.00 g
