Teradek Prism Jetpack (V-Mount)
$10,553.00
In Stock
- Production Backpack with Internal Modems
- Detachable 7" OLED Monitor
- Encoder Unit with Intercom Connectivity
- V-Mount Battery Plate
Tracked ShippingRates shown at checkout
60-Day ReturnsOn eligible items
Expert SupportReal people, real advice

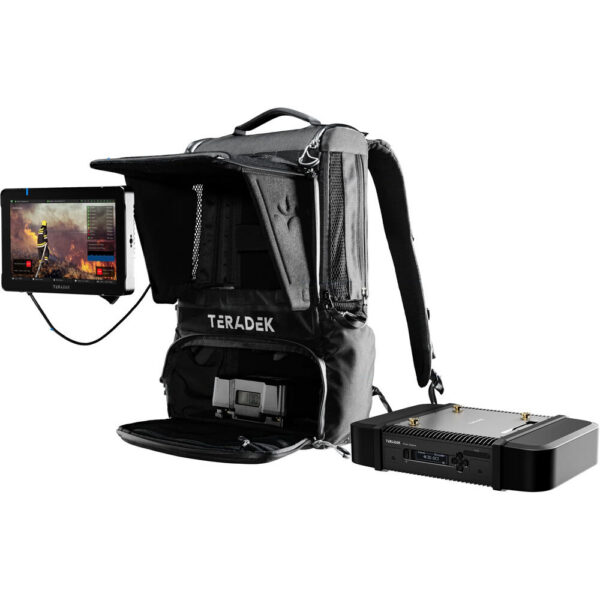

Teradek Prism Jetpack (V-Mount)
The Teradek Prism Jetpack (V-Mount) is a dependable addition to a serious kit.
Highlights
- Production Backpack with Internal Modems
- Detachable 7" OLED Monitor
- Encoder Unit with Intercom Connectivity
- V-Mount Battery Plate
Ordered from NIXTRONIC, it ships with full tracking worldwide and is backed by our 60-day returns on eligible items.
In the Box
- Teradek Prism Jetpack (V-Mount)
- Prism Jetpack Encoder
- Prism Jetpack Monitor (7")
- 8 x Teradek Standard Data eSIM Card
- V-Mount Battery Plate and Sled
- 2-Pin AC/DC Power Supply
- IEC Power Cable
| SKU | 10-2880-V |
|---|---|
| Brand | Teradek |
| Video Inputs | 4 x BNC (12G/6G/3G/HD/SD-SDI) 1 x HDMI 2.0 |
|---|---|
| Video Output | 1 x BNC (12G/6G/3G/HD/SD-SDI) |
| Supported Modes | Single Encode, Bidirectional Encode/Decode |
| Supported Resolutions | DCI 4K: 23.98/24/25/29.97/30/50/59.94/60 UHD 4K: 23.98/24/25/29.97/30/50/59.94/60 1080p: 23.98/24/25/29.97/30/50/59.94/60 1080i: 50/59.94/60 1080 PsF: 23/24/25/29/30 720p: 50/59.94/60 576i 480i |
| Supported Video Compression | AVC: Baseline, Main, High ISO MPEG-H Part 2: High-Efficiency Video Coding (HEVC)/ITU H.265 HEVC: Main |
| Video Bitrates | 250 Mb/s 85 Mb/s |
| HDR | 2020-PQ, 2020-HLG, P3D65-PQ |
| Color | 8-Bit, 10-Bit Encoding 4:2:2/4:2:0 Subsampling |
| Bonding | Up to 11 Bonded Connections (Teradek Bonding Protocol, Teradek Reliable Transport (TRT)) |
| Recording | SD Card, USB Drive, NFS |
| Cloud Applications | Core Cloud, Teradek TV, S3 Bucket, Frame.io, Sony Ci, Sony C3 Portal, PIX, Moxion |
| Overlay | Up to 10 Overlays with Additional Dynamic OSD |
| Network Protocols | TCP/IP, UDP, HTTP, DHCP, NTP, SSL, IGMP |
| Supported Video Transport Protocols | HLS, MPEG-TS (DASH, UDP, TCP, TCP Server, Multicast), RIST, RTP Push, RTMP / E-RTMP, RTMPS, RTSP, SRT, Teradek Cloud Protocol, Teradek Reliable Transport, WHEP, WHIP |
| Remote Management | Teradek Core Cloud, Private SDK |
| Audio Compression | AAC-LC, MPEG Layer II, OPUS, AC3 |
| Audio Bitrate | 32 to 512 kb/s |
| Audio Streaming | 1 to 8 Tracks, Mono/Stereo, 5.1 or 7.1 |
| Audio Sample Rate | 48 k Hz |
| Embedded Audio | SDI, HDMI |
| Audio Input | 1 x 3.5 mm TRS Stereo Line |
| Audio Output | 1 x 3.5 mm TRRS Headphone |
| IFB Output | Analog 3.5 mm Line Level, USB-A Headset or Audio Interface (< 1.5A) |
| Display | 7" OLED |
| Other I/O | 8 x Internal Node 5G Modems 2 x USB-A 2 x RJ45 Gigabit Ethernet |
| Wireless | Wi-Fi 2.4/5 GHz 802.11 a/b/g/n/ac/ax MIMO BLE for Network Configuration |
| Power Input | 1 x 2-Pin Locking Connector 1 x V-Mount Battery Plate |
| Voltage | 6 to 28 VDC |
| Power Consumption | 20W (Nominal) 36W (Maximum) |
| Material of Construction | Aluminum, ABS |
| Dimensions | 10.8 x 7.7 x 2.5" / 274 x 194 x 62 mm |
| Weight | 5 lb / 2.3 kg |
