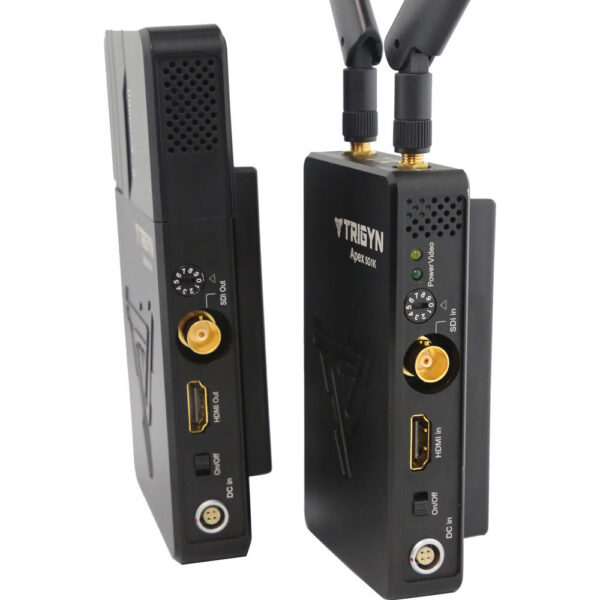

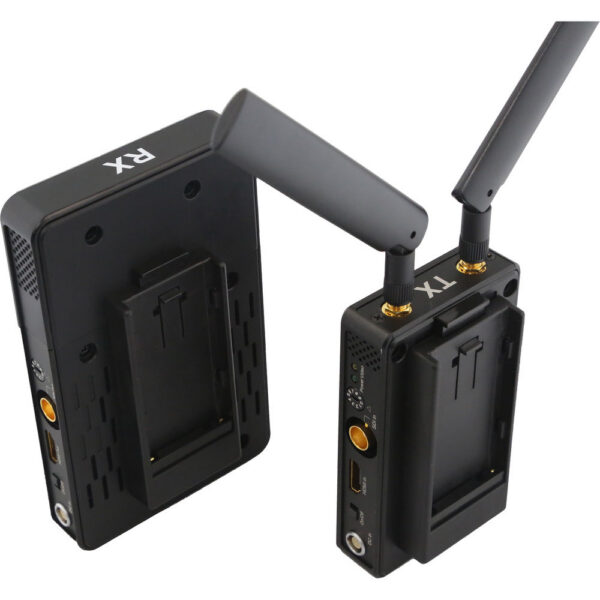

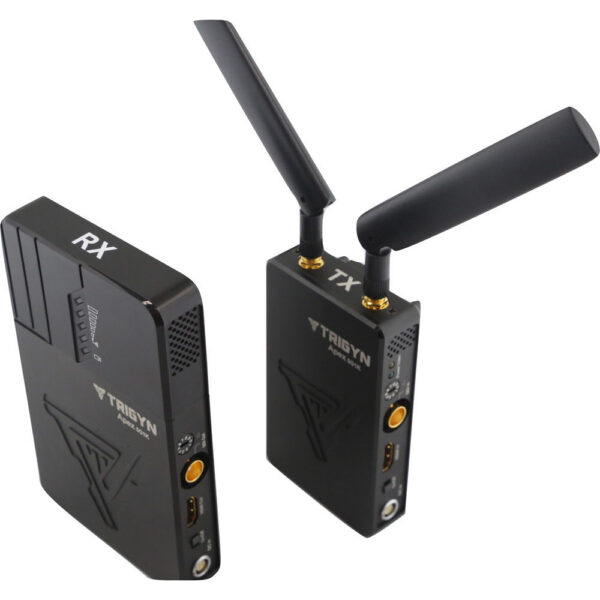

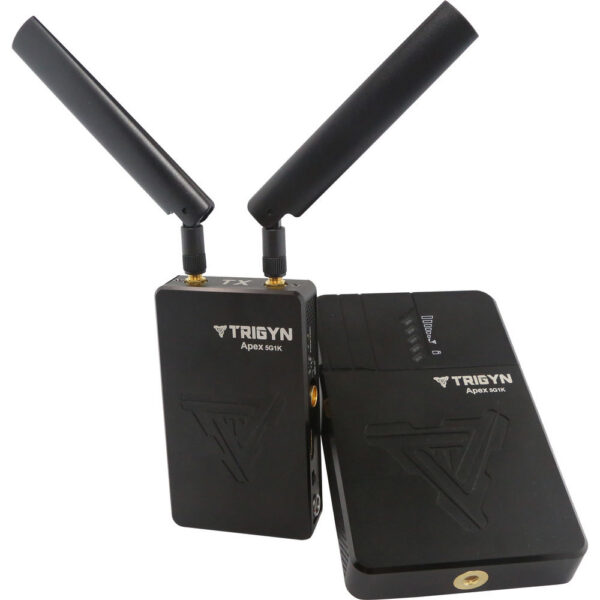

TRIGYN Apex 5G1K Zero-Latency FHD Wireless Video Transmission Kit
$1,272.00
In Stock
- Transmits 10808p60 up to 1000' LoS
- 1 x Transmitter and 1 x Receiver
- HDMI & SDI Input/Outputs
- Zero Latency
Tracked ShippingRates shown at checkout
60-Day ReturnsOn eligible items
Expert SupportReal people, real advice
TRIGYN Apex 5G1K Zero-Latency FHD Wireless Video Transmission Kit
Designed for people who rely on their gear, the TRIGYN Apex 5G1K Zero-Latency FHD Wireless Video Transmission Kit delivers solid, consistent performance.
Highlights
- Transmits 10808p60 up to 1000' LoS
- 1 x Transmitter and 1 x Receiver
- HDMI & SDI Input/Outputs
- Zero Latency
Every order from NIXTRONIC ships tracked worldwide and is covered by our 60-day return policy on eligible items.

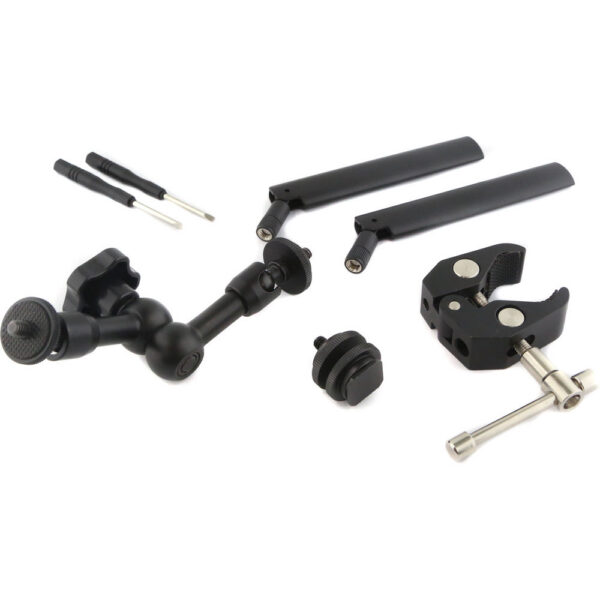

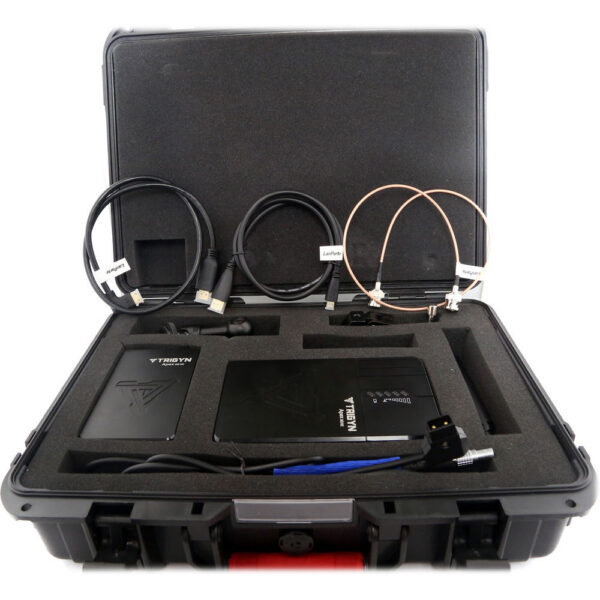

In the Box
- TRIGYN Apex 5G1K Zero-Latency FHD Wireless Video Transmission Kit
- Transmitter
- Receiver
- 2 x Channel Tweezers
- 6" Magic Arm
- Cold Shoe Adapter
- C-Clamp
- 2 x Blade Antenna
- 2 x D-Tap to LEMO Power Cables
- Carrying Case
| SKU | APEX 5G1K |
|---|---|
| Brand | TRIGYN |
| Antenna I/O | Transmitter: 2x RP-SMAReceiver: 5x Internal |
|---|---|
| Video I/O | Transmitter: 1x BNC (Unspecified SDI) Input Transmitter: 1x HDMI (Unspecified Signal) Input Receiver: 1x BNC (Unspecified SDI) Output Receiver: 1x HDMI (Unspecified Signal) Output |
| Embedded Audio | HDMI/SDI |
| Audio I/O | No |
| Power I/O | Transmitter/Receiver: 1x LEMO 4-Pin Input |
| Media/Memory Card Slot | Not Specified by Manufacturer |
| Encryption | Yes: 128-Bit AES |
| Wireless | 5G |
|---|---|
| Wireless Range | 500' / 152.4 m (Line-of-Sight Guaranteed)1000' / 304.8 m (Line-of-Sight) |
| Channel Bandwidth | 40 MHz |
| Frequency Range | Non-DFS Frequencies5 GHz |
| RF Power | 18 d Bm |
| RF Sensitivity | -75 d Bm |
| Mobile App Compatible | No |
| Cellular Support | No |
| Video Format | HDMI/SDI (10-Bit 4:2:2 YCC)1080p: 60/59.94/50/30/29.97/25/24/23.98 1080 PsF: 30/29.97/25/24/23.98 1080i: 60/59.94/50 720p: 60/59.94/50 576i 480i HDMI (10-Bit 4:2:2 YCC)576p: 50 480p: 59.94 |
|---|---|
| Audio Format | Not Specified by Manufacturer |
| Wireless Video Compression | Uncompressed |
| Timecode Support | No |
| Input Power | 7 to 36 VDC |
|---|---|
| Battery | Transmitter/Receiver: 1x L-Series Mount on Fixed Plate |
| Power Consumption | Transmitter/Receiver: 6.5 W |
| Tripod/Accessory Mounting | Transmitter/Receiver, Bottom1x 1/4"-20 Female |
|---|
| Status Display | No |
|---|---|
| Environmental Resistance | No |
| Operating Conditions | 32 to 104°F / 0 to 40°C |
| Material of Construction | Aluminum |
| Dimensions | Transmitter: 4.54 x 2.64 x 0.9" / 115.32 x 67.06 x 22.9 mm Receiver: 6 x 3.74 x 0.9" / 152.4 x 95 x 22.9 mm |
| Weight | Transmitter: 9.5 oz / 269.3 g Receiver: 12.52 oz / 354.94 g |
