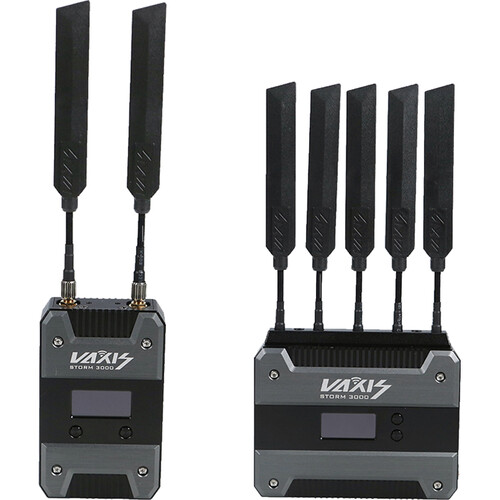

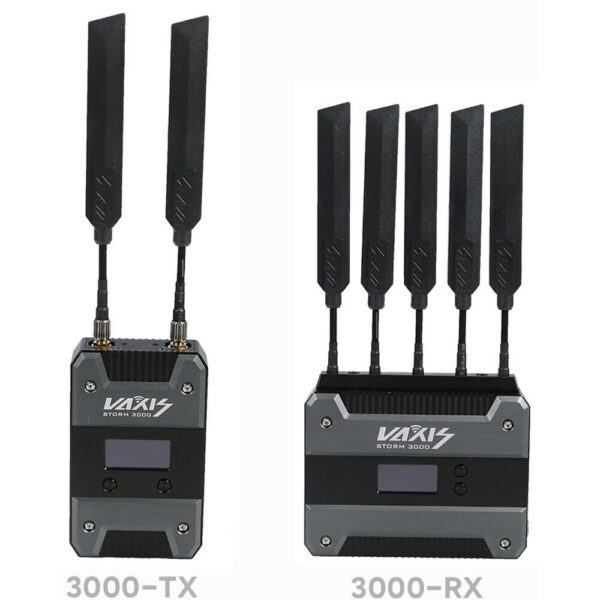

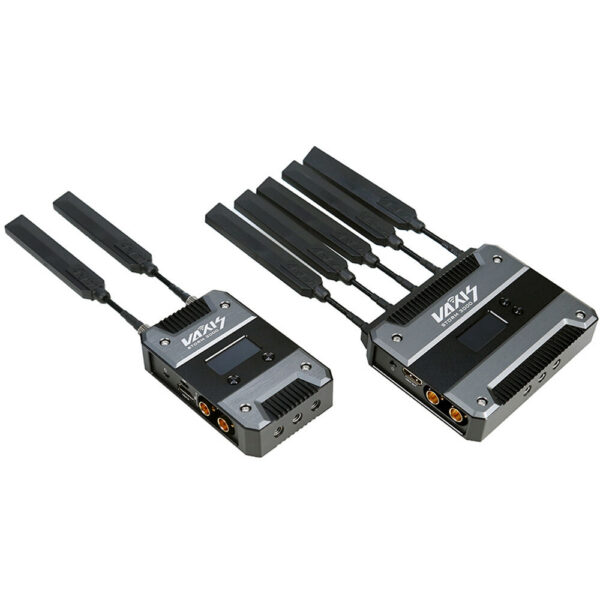

Vaxis Storm 3000 Wireless TX/RX Kit (Gold Mount)
$3,976.00
In Stock
- Up to 0.6 Mile Range
- 1 Transmitter & 1 Receiver
- Transmits Up to 1080p60
- HDMI & SDI Input, SDI Loop Output
Tracked ShippingRates shown at checkout
60-Day ReturnsOn eligible items
Expert SupportReal people, real advice
Vaxis Storm 3000 Wireless TX/RX Kit (Gold Mount)
The Vaxis Storm 3000 Wireless TX/RX Kit (Gold Mount) is built to support demanding work, in the studio and on location.
Highlights
- Up to 0.6 Mile Range
- 1 Transmitter & 1 Receiver
- Transmits Up to 1080p60
- HDMI & SDI Input, SDI Loop Output
Ordered from NIXTRONIC, it ships with full tracking worldwide and is backed by our 60-day returns on eligible items.

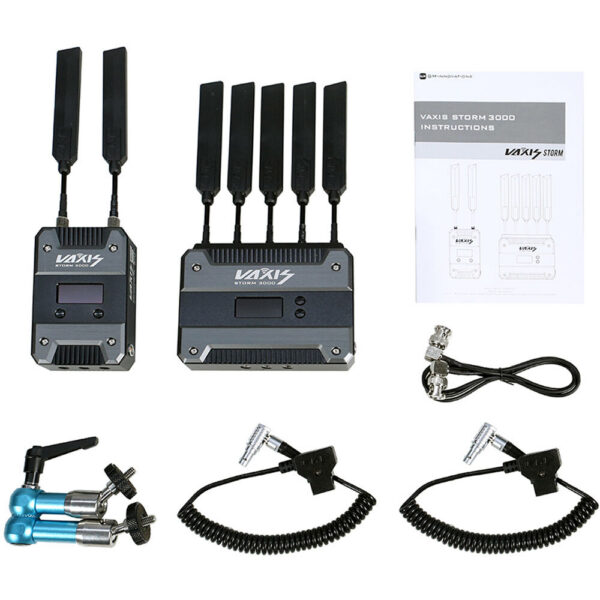

In the Box
- Vaxis Storm 3000 Wireless TX/RX Kit (Gold Mount)
- Vaxis Storm 3000 Wireless Transmitter
- Vaxis Storm 3000 Receiver (Gold Mount)
- 8 x Vaxis Blade Antenna for Vaxis Storm Transmitter and Receiver
- 2 x Vaxis MOVMAX D-Tap to 2-Pin LEMO Power Cable
- Vaxis 7" Articulating Arm (1/4"-20 to 1/4"-20)
- Vaxis SDI Cable with BNC to BNC Right-Angle Connectors (39")
| SKU | VS19-3000-TR02 |
|---|---|
| Brand | Vaxis |
| Antenna I/O | Transmitter: 2x RP-SMAReceiver: 5x RP-SMA |
|---|---|
| Video I/O | Transmitter: 1x BNC (3G-SDI) Input Transmitter: 1x BNC (3G-SDI) Loop Output Transmitter: 1x HDMI 1.3 Input Receiver: 1x BNC (3G-SDI) Output Receiver: 1x HDMI 1.3 Output |
| Embedded Audio | HDMI/SDI |
| Audio I/O | No |
| Power I/O | Transmitter/Receiver: 1x LEMO 2-Pin Input |
| Other I/O | Transmitter/Receiver: 1x Micro-USB |
| Encryption | Yes: 128-Bit AES |
| Wireless | 5.8 GHz Radio/RF |
|---|---|
| Wireless Range | 0.6 Miles / 1000 m |
| # of Channels | 10 |
| Channel Bandwidth | 40 MHz, 20 MHz |
| Frequency Range | 5.1 to 5.9 GHz |
| RF Power | 21 d Bm |
| RF Sensitivity | -75 d Bm |
| Mobile App Compatible | No |
| Cellular Support | 5G NR via Unspecified SIM Type |
| Video Format | HDMI/SDI1080p: 60/59.94/50/24/23.98 1080i: 60/59.94/50 1080 PsF: 25/24/23.98 720p: 60/59.94 |
|---|---|
| Audio Format | 24-Bit 48 k Hz |
| Timecode Support | No |
| Input Power | 6 to 36 VDC |
|---|---|
| Battery | Receiver: 1x V-Mount on Fixed Plate |
| Tripod/Accessory Mounting | Transmitter/Receiver, Bottom1x 1/4"-20 Female |
|---|
| Status Display | On Transmitter & Receiver |
|---|---|
| Environmental Resistance | No |
| Operating Conditions | 32 to 104°F / 0 to 40°C |
| Storage Conditions | -4 to 140°F / -20 to 60°C |
| Material of Construction | Metal |
| Dimensions | Transmitter: 4.4 x 2.7 x 1.1" / 113 x 69.5 x 27 mm Receiver: 4.9 x 3.7 x 1.6" / 125 x 94 x 40 mm |
| Weight | Transmitter: 9.45 oz / 268.00 g Receiver: 14.29 oz / 405.00 g |
| Package Weight | 9 lb |
|---|---|
| Box Dimensions (Lx WxH) | 14.3 x 12.6 x 6.6" |
