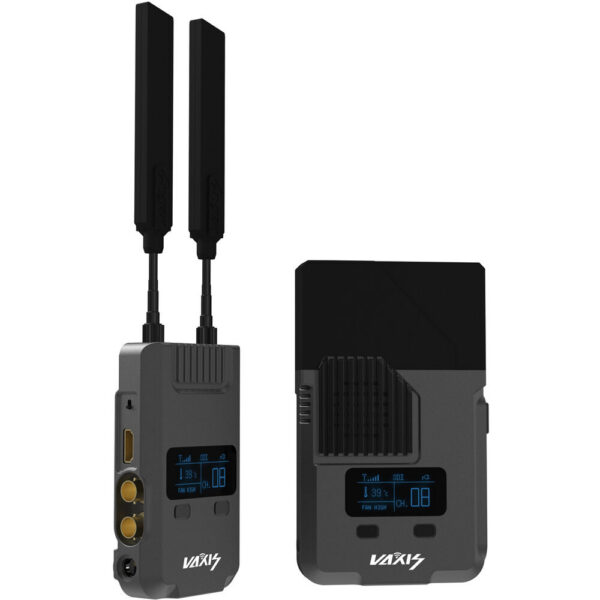

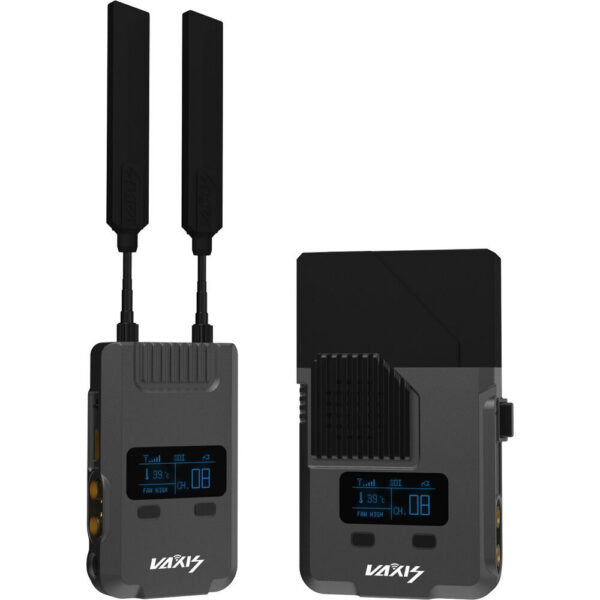

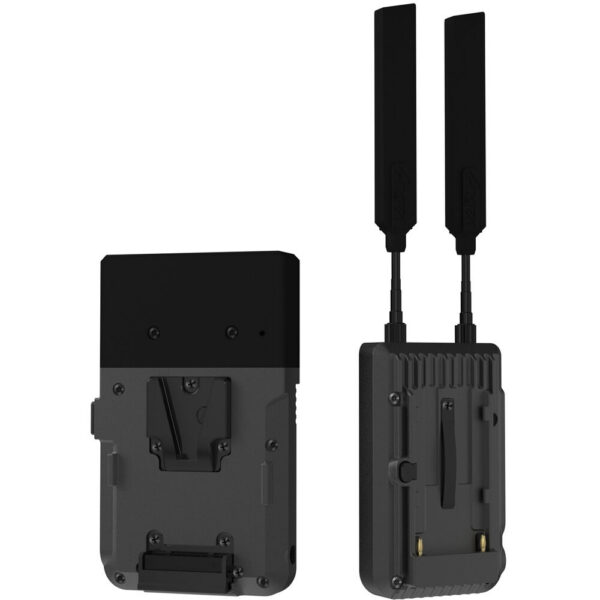

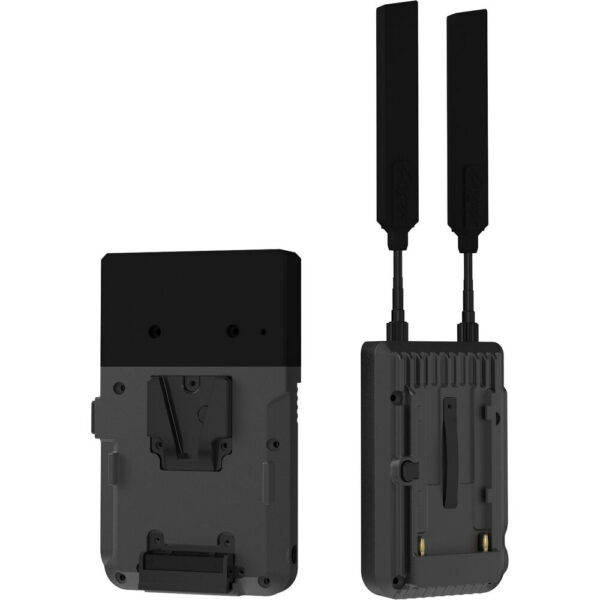

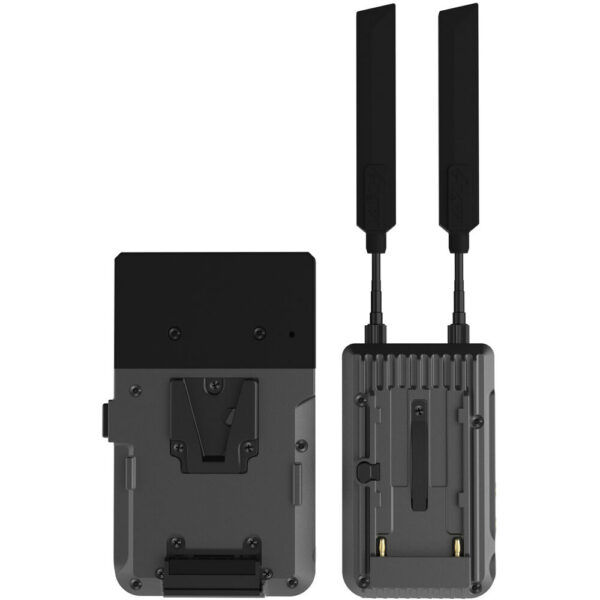

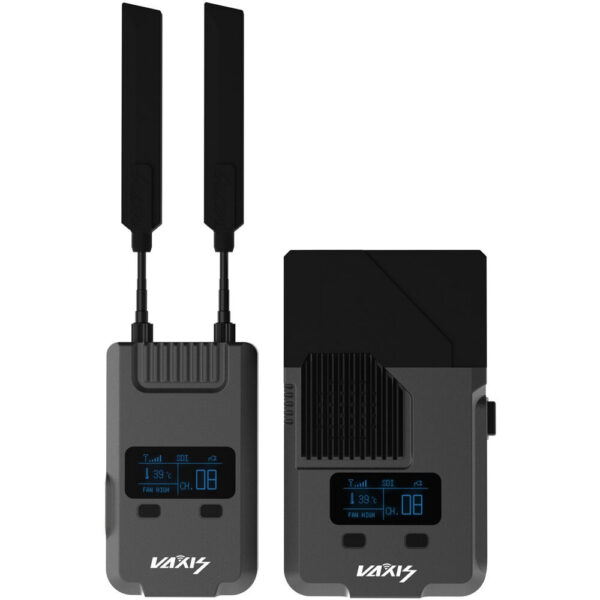

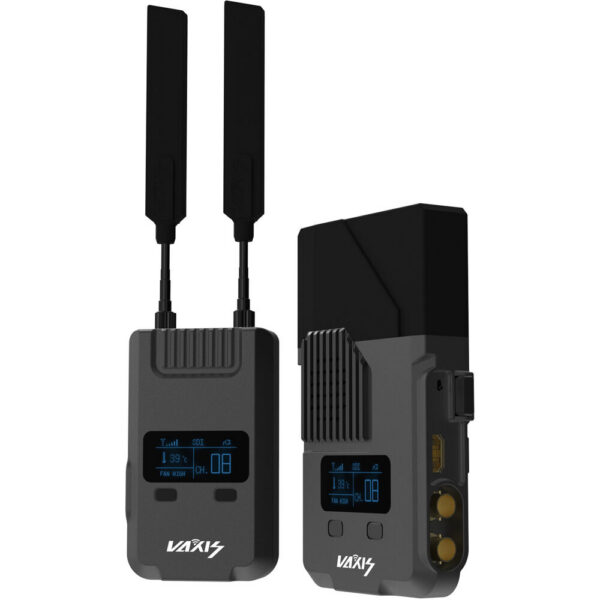

Vaxis Storm 800 Wireless Transmission System
$1,049.00
In Stock
- Transmitter and Receiver Set
- Up to 853' Line-of-Sight Transmission
- Supports up to 1080p60 Video
- 3G-SDI and HDMI Inputs/Outputs
Tracked ShippingRates shown at checkout
60-Day ReturnsOn eligible items
Expert SupportReal people, real advice
Vaxis Storm 800 Wireless Transmission System
The Vaxis Storm 800 Wireless Transmission System is a dependable addition to a serious kit.
Highlights
- Transmitter and Receiver Set
- Up to 853' Line-of-Sight Transmission
- Supports up to 1080p60 Video
- 3G-SDI and HDMI Inputs/Outputs
Every order from NIXTRONIC ships tracked worldwide and is covered by our 60-day return policy on eligible items.
In the Box
- Vaxis Storm 800 Wireless Transmission System
- Transmitter
- Receiver
- Flight Case
- Power Cable
- SDI Cable
| SKU | VAXIS-VS25-800-TR01 |
|---|---|
| Brand | Vaxis |
| Antenna I/O | Receiver: 1x Internal Transmitter: 2x RP-SMA (External) |
|---|---|
| Video I/O | Transmitter: 1x BNC (3G-SDI) Input Transmitter: 1x HDMI (Unspecified Signal) Input Transmitter: 1x BNC (3G-SDI) Loop Output Receiver: 2x BNC (3G-SDI) Output Receiver: 1x HDMI (Unspecified Signal) Output |
| Embedded Audio | SDI: 2-ChannelHDMI: 2-Channel |
| Audio I/O | : 1x 1/8" / 3.5 mm Headphone Output |
| Power I/O | Transmitter: 1x LEMO 2-Pin Input Transmitter: 1x Micro-USB Input Receiver: 1x LEMO 2-Pin Input Receiver: 1x Micro-USB Input |
| Wireless | 5G |
|---|---|
| Wireless Range | 853' / 260 m (Line-of-Sight) |
| # of Channels | 20 |
| Frequency Range | 5.1 to 5.9 GHz |
| Latency | < 1 ms |
| Mobile App Compatible | Yes: Android & iOS |
| Cellular Support | No |
| Video Format | HDMI/SDI1080p: 60/59.94/50/24/23.98 1080 PsF: 30/29.97/25/24/23.98 1080i: 60/59.94/50 720p: 60/50 |
|---|---|
| Audio Format | Not Specified by Manufacturer |
| Wireless Video Compression | Uncompressed |
| Timecode Support | Yes |
| Input Power | 7 to 36 VDC |
|---|---|
| Battery | Receiver: 1x V-Mount on Fixed Plate Transmitter: 1x L-Series Mount on Fixed Plate |
| Tripod/Accessory Mounting | Transmitter/Receiver1x 1/4"-20 Female |
|---|
| Status Display | On Transmitter & Receiver |
|---|---|
| Environmental Resistance | No |
| Operating Conditions | 32 to 104°F / 0 to 40°C |
| Dimensions | Transmitter: 4.5 x 2.7 x 1" / 115 x 69.5 x 24.5 mm Receiver: 6.2 x 3.6 x 1" / 156.5 x 91.5 x 24.5 mm |
| Weight | Transmitter: 9.14 oz / 259.00 g Receiver: 15.34 oz / 435.00 g |
| Package Weight | 6.315 lb |
|---|---|
| Box Dimensions (Lx WxH) | 12.7 x 11.4 x 6.8" |
