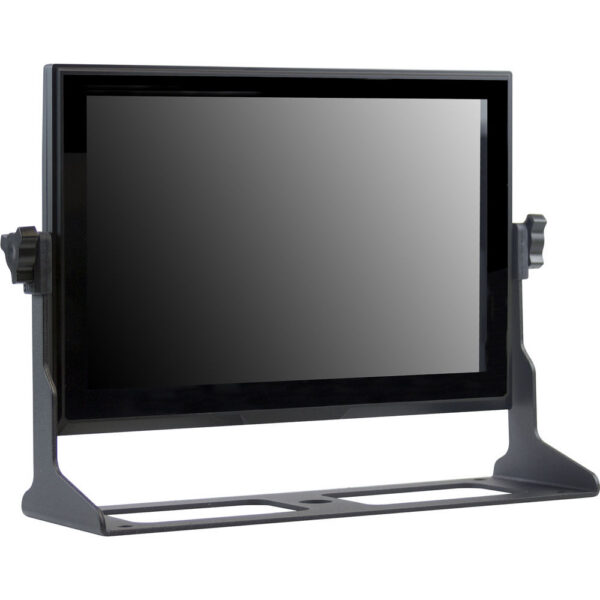

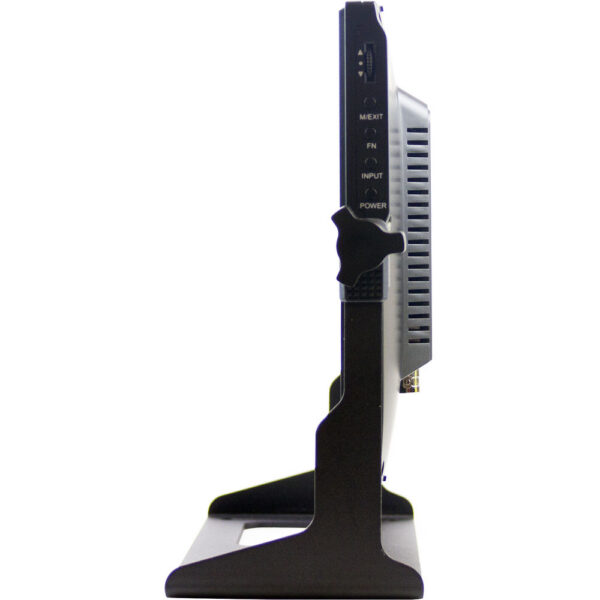

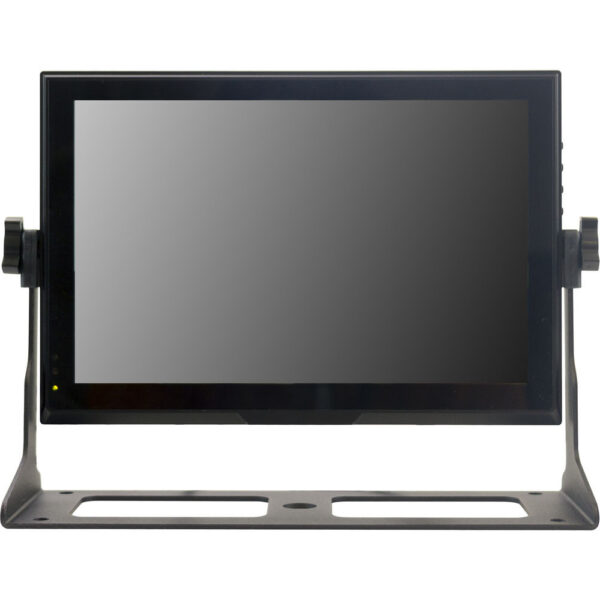

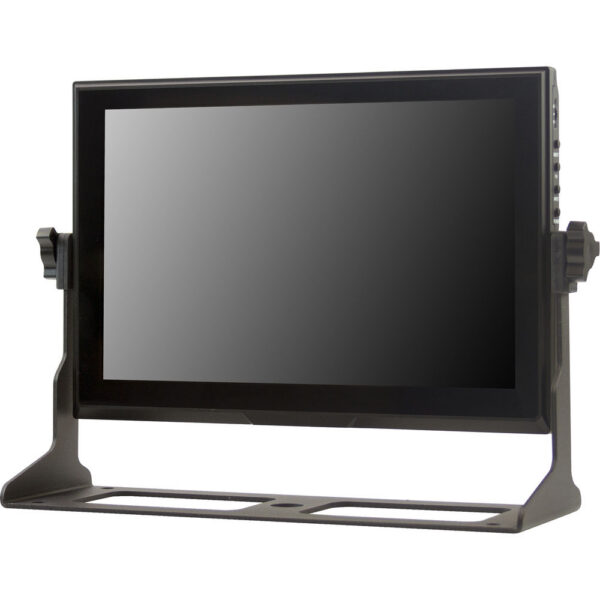

ViewZ 10.1" HDMI/3G-SDI Broadcast Field Monitor
$511.00
In Stock
- 10.1" IPS LCD Field Monitor
- 1280 x 800 Resolution, HD 1080p60 Input
- 3G-SDI, HDMI, Composite, VGA
- 800:1 Contrast, 350 cd/m² Brightness
Tracked ShippingRates shown at checkout
60-Day ReturnsOn eligible items
Expert SupportReal people, real advice
ViewZ 10.1" HDMI/3G-SDI Broadcast Field Monitor
Designed for people who rely on their gear, the ViewZ 10.1" HDMI/3G-SDI Broadcast Field Monitor delivers solid, consistent performance. It offers a 10.1" display at 1280 x 800.
Highlights
- 10.1" IPS LCD Field Monitor
- 1280 x 800 Resolution, HD 1080p60 Input
- 3G-SDI, HDMI, Composite, VGA
- 800:1 Contrast, 350 cd/m² Brightness
Ordered from NIXTRONIC, it ships with full tracking worldwide and is backed by our 60-day returns on eligible items.
In the Box
- ViewZ 10.1" HDMI/3G-SDI Broadcast Field Monitor
- Monitor Stand
- 12 VDC Power Adapter
- Shoe Mount
- Video Out Cable
- Composite Cable
- Remote Control
- 4-Pin XLR / Tally Cable
- Mounting Plate
- L-Series/LP-E6 Battery Plate
- VESA Battery Plate
| SKU | VZ-101FM-E |
|---|---|
| Brand | ViewZ |
| Panel Type | IPS-Type LCD |
|---|---|
| Display Size | 10.1" / 25.7 cm |
| Native Resolution | 1280 x 800 |
| Aspect Ratio | 16:10 |
| Viewing Angle | Horizontal: 170°Vertical: 170° |
| Touchscreen | No |
| Maximum Brightness | 350 nits / cd/m2 |
| Contrast Ratio | 800:1 |
| Color Support | 16.7 Million Colors (8-Bit) |
| HDR Support | No |
| LUT Support | No |
| Image Controls | H/V Delay, Image Flip, Pixel-to-Pixel Zoom, R/G/B/Chroma Only, Screen Markers, Underscan, Vectorscope, Waveform |

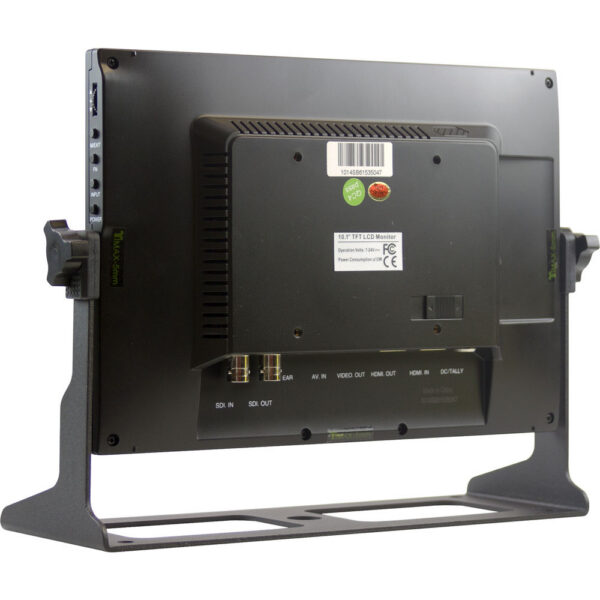

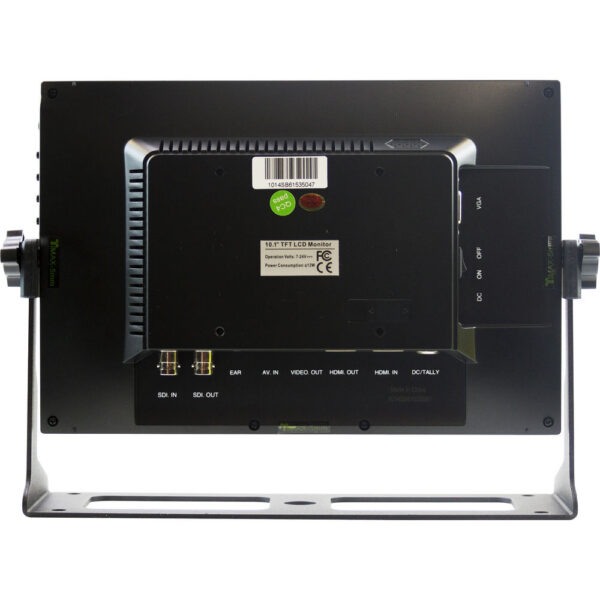

| Video I/O | 1x BNC (3G-SDI) Input 1x BNC (3G-SDI) Output 1x HDMI 1.4 Input 1x HDMI 1.4 Output 1x RCA (Composite) Input 1x RCA (Composite) Output 1x VGA (RGBHV) Input |
|---|---|
| Audio I/O | 1x 1/8" / 3.5 mm Headphone Output |
| Built-In Speaker | Mono |
| Power I/O | 1x XLR 4-Pin (800 mA) Input 1x Barrel (800 mA) Input |
| Other I/O | 1x Proprietary (Tally) |
| Media/Memory Card Slot | No |
| Wireless | No |
|---|---|
| Mobile App Compatible | No |
| Video Format | SDI (8-BitRGB)1080p: 60/59.94/50/30/29.97/25/24/23.98 1080 PsF: 30/29.97/25/24/23.98 1080i: 60/59.94/50 720p: 60/59.94/50/30/29.97/25 576i: 50 480i: 60/59.94 |
|---|
| Input Power | 7 to 24 VDC at 0.8 A |
|---|---|
| Battery | 1x L-Series/LP-E6 Combination Mount on Included, Interchangeable Plate |
| Power Consumption | 12 W |
| VESA Mounting-Hole Pattern | 75 x 75 mm |
|---|---|

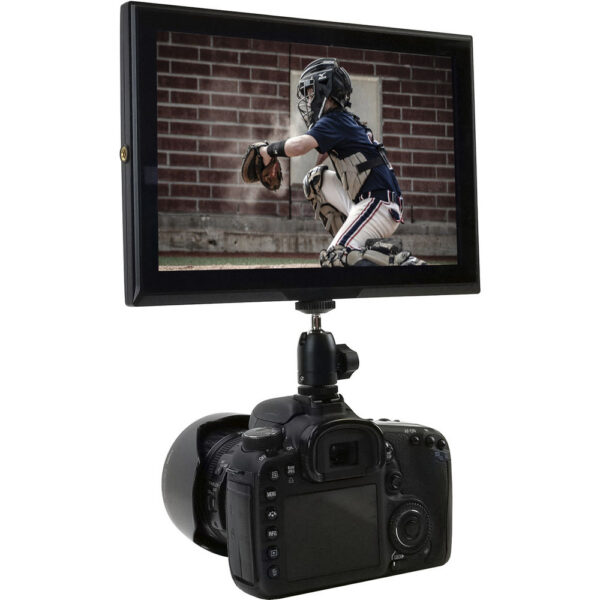

| Tripod/Accessory Mounting | Bottom1x 1/4"-20 Female |
| Storage Conditions | 32 to 122°F / 0 to 50°C |
|---|---|
| Dimensions | 9.84 x 6.69 x 1.27" / 24.99 x 16.99 x 3.23 cm |
| Weight | 1.45 lb / 658.00 g |
| Package Weight | 4.55 lb |
|---|---|
| Box Dimensions (Lx WxH) | 12.2 x 10.4 x 4.4" |
