ViewZ 7" HDMI/3G-SDI On-Camera Monitor
$580.00
In Stock
- 1920 x 1200 Native Resolution
- 500 cd/m² Brightness
- 1000:1 Contrast Ratio
- 1 x HDMI and 1 x SDI Input
Tracked ShippingRates shown at checkout
60-Day ReturnsOn eligible items
Expert SupportReal people, real advice

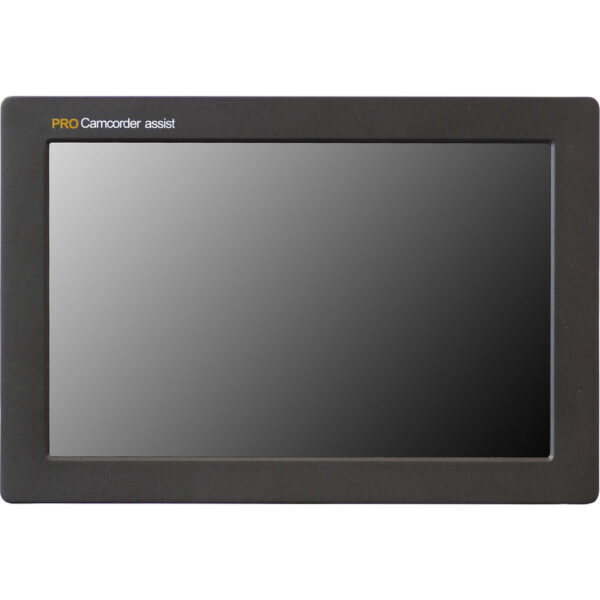

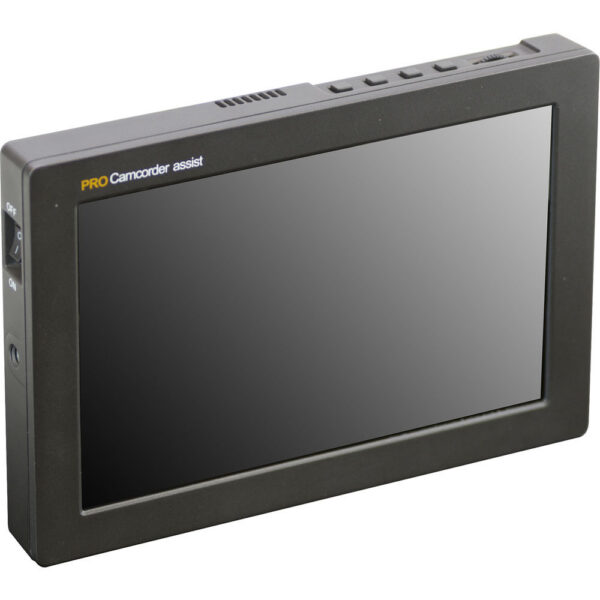

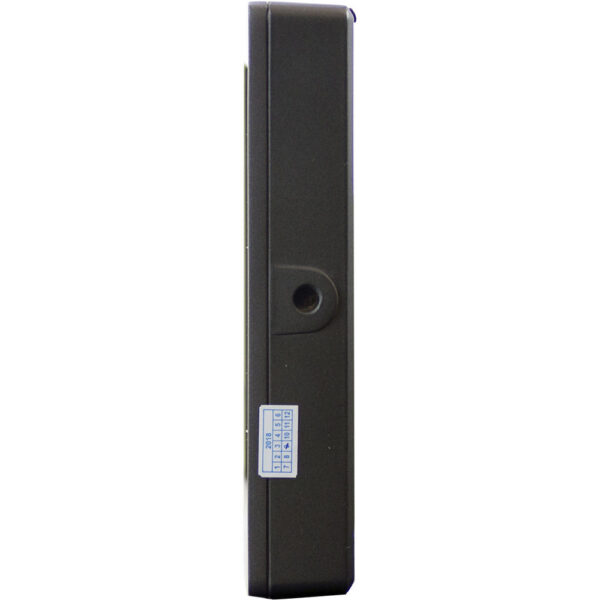

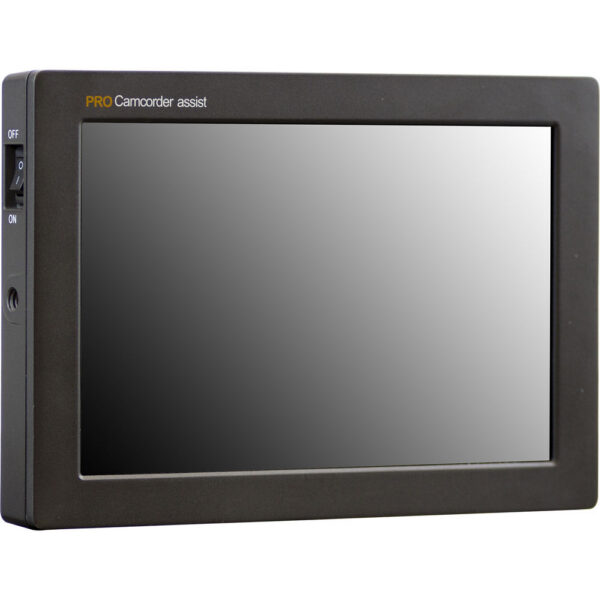

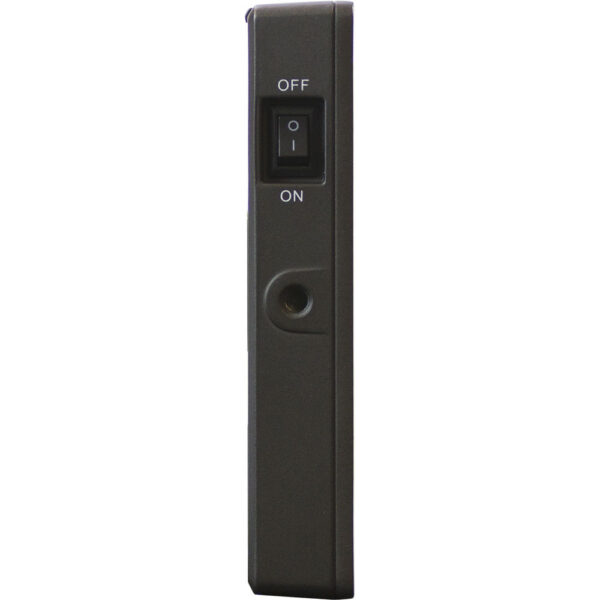

ViewZ 7" HDMI/3G-SDI On-Camera Monitor
The ViewZ 7" HDMI/3G-SDI On-Camera Monitor is built to support demanding work, in the studio and on location. It offers a 7.0" display at 1920 x 1200.
Highlights
- 1920 x 1200 Native Resolution
- 500 cd/m² Brightness
- 1000:1 Contrast Ratio
- 1 x HDMI and 1 x SDI Input
Ordered from NIXTRONIC, it ships with full tracking worldwide and is backed by our 60-day returns on eligible items.
In the Box
- ViewZ 7" HDMI/3G-SDI On-Camera Monitor
- Sun Hood
- VESA Battery Bracket Plate
- LP-E6 Battery Plate
- F970 Battery Plate
- Ball Head Shoe Mount Adapter
- 12 VDC Power Adapter
- HDMI Cable (1.5')
| SKU | VZ-070FM-HDR |
|---|---|
| Brand | ViewZ |
| Panel Type | IPS-Type LCD |
|---|---|
| Display Size | 7.0" / 17.8 cm |
| Native Resolution | 1920 x 1200 |
| Aspect Ratio | 16:10 |
| Viewing Angle | Horizontal: 170°Vertical: 170° |
| Touchscreen | No |
| Maximum Brightness | 500 nits / cd/m2 |
| Contrast Ratio | 1000:1 |
| Color Support | 16.7 Million Colors (8-Bit) |
| HDR Support | No |
| LUT Support | No |
| Image Controls | Check Field, False Color, Focus Peaking, H/V Delay, Histogram, Image Flip, Screen Markers, Underscan, Vectorscope, Waveform |

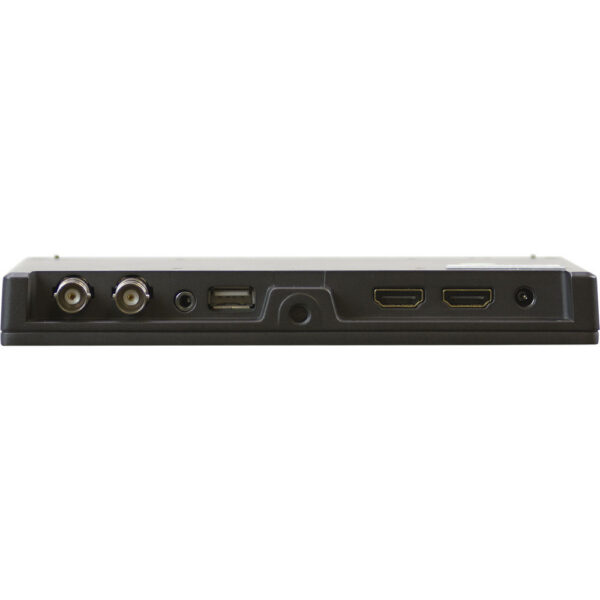

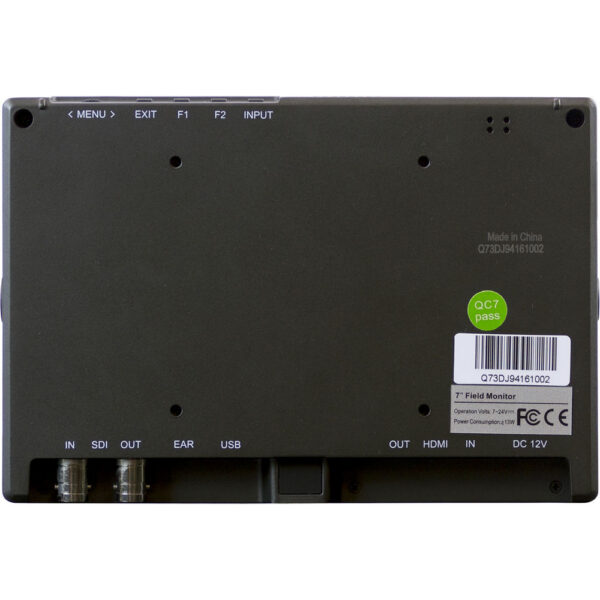

| Video I/O | 1x HDMI 1.4 Input 1x HDMI 1.4 Output 1x BNC (3G-SDI) Input 1x BNC (3G-SDI) Output |
|---|---|
| Audio I/O | 1x 1/8" / 3.5 mm Headphone Input |
| Built-In Speaker | Mono |
| Other I/O | 1x USB-A 2.0 |
| Media/Memory Card Slot | No |
| Wireless | No |
|---|---|
| Mobile App Compatible | No |
| Video Format | SDIRGB1080p: 60/59.94/50/30/29.97/25/24/23.98 1080i: 60/59.94/50 720p: 60/59.94/50/30/29.97/25/24/23.98 576i: 50 480i: 59.94 |
|---|
| Input Power | 7 to 24 VDC at 1 A |
|---|---|
| Battery | No |
| Power Consumption | 12 W (Maximum) |
| VESA Mounting-Hole Pattern | 75 x 75 mm |
|---|---|
| Tripod/Accessory Mounting | Bottom1x 1/4"-20 Female |
| Environmental Resistance | No |
|---|---|
| Operating Conditions | -4 to 140°F / -20 to 60°C up to 90% Humidity |
| Storage Conditions | -22 to 158°F / -30 to 70°C |
| Dimensions | 7.2 x 4.9 x 0.8" / 18.3 x 12.4 x 2 cm |
| Weight | 14.29 oz / 405.00 g |
